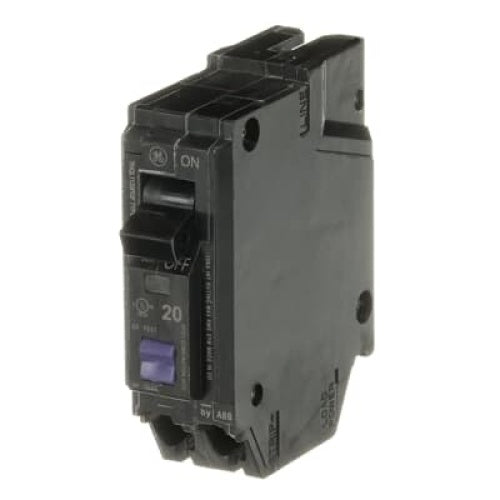

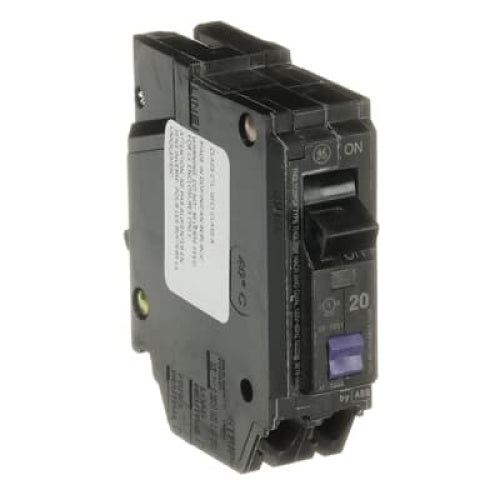

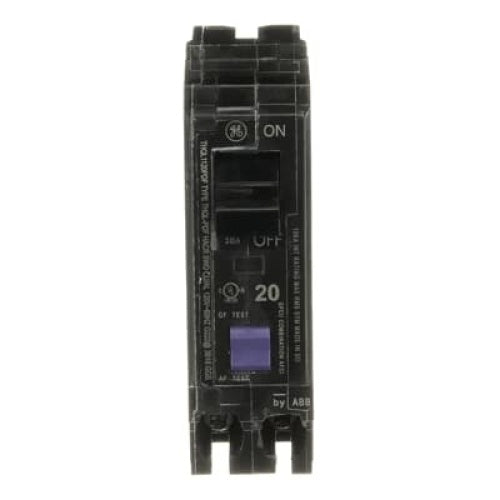

Abb THQL1120PDF q-line plug-in molded case circuit breaker 20 amp

Product Description

The ABB THQL1120PDF is a Q-Line plug-in residential molded case circuit breaker. Rated at 120/240V and 20 Amps, with a 10kAIC interrupting rating, this 1-pole breaker features a plug-on neutral connection and dual function GFCI/AFCI for ground fault and combination arc fault protection. It is suitable for various applications requiring reliable circuit protection.

• Q-Line Frame: Compact, thermal-magnetic circuit breakers.
• Plug-in Mounting: Designed for straightforward installation in compatible load centers.
• Thermal Magnetic Trip: Provides overload and short-circuit protection.

Product Highlights

This ABB circuit breaker offers reliable protection with easy installation and clear trip indication.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: THQL1120PDF

Technical Specifications

• Manufacturer: ABB - Low Voltage Drives
• Amperage Rating: 20 Amp
• Number of Poles: 1
• Voltage Rating: 120/240 VAC
• Interrupt Rating: 10 kA
• Type: Type THQL
• Series: Q-Line Plug-In
• Frame: THQL
• Phase: 1
• Connection Type: Plug-On Neutral
• Wire Size: 14-8 AWG Cu / 12-8 AWG Al
• Enclosure Type: Molded Case
• Temperature Rating: 60°C / 75°C
