Abb thqd32225x2 tqd 225 amp

Product Description

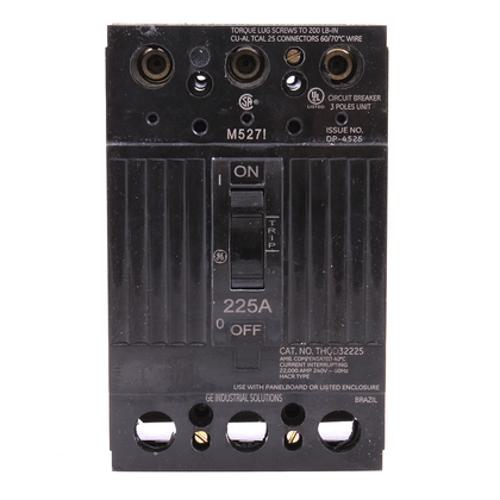

The ABB THQD32225X2 is a TQD line of thermal magnetic molded case circuit breaker and molded case switch. Complete with Cu/Al line and load lugs. The X2 catalog number suffix indicates Load Lugs only. Rated at 225A.

• Includes thermal magnetic molded case circuit breakers and molded case switches
• Complete with Cu/Al line and load lugs
• X2 catalog number suffix indicates Load Lugs only

Product Highlights

The ABB THQD32225X2 is suitable for use as a circuit breaker. It has a thermal-magnetic trip and is rated for 240 VAC systems.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: THQD32225X2

Technical Specifications

• Frame: Q-Line
• Trip Type: LI
• Amperage Rating: 225A
• Number of Poles: 3
• Interrupt Rating: 22kA at 120 Vac/22kA at 120/240 Vac/22kA at 240 Vac
• Frame Type: THQD
• Poles: 3
• Trip Function: LI
• Breaker Mechanism Type: Toggle
• Breaker Number of Poles: Three Pole
• Breaker Voltage Rating: 240 VAC
• Breaker Amperage Rating: 225 Amp
• Breaker Function: LI
• Manufacturer: ABB
• Approval: UL, CUL
• Terminal Type: Copper/Aluminum Load Lug, Bolt-On
• Current Rating: 225 Amp
• Voltage Rating: 240 Volt AC
• Number Of Poles: 3
• Maximum AC Voltage Rating: 240 Volt
• Type: Molded Case, Fixed Thermal Magnetic, Internal Common Trip
• Brand: ABB Electrification
