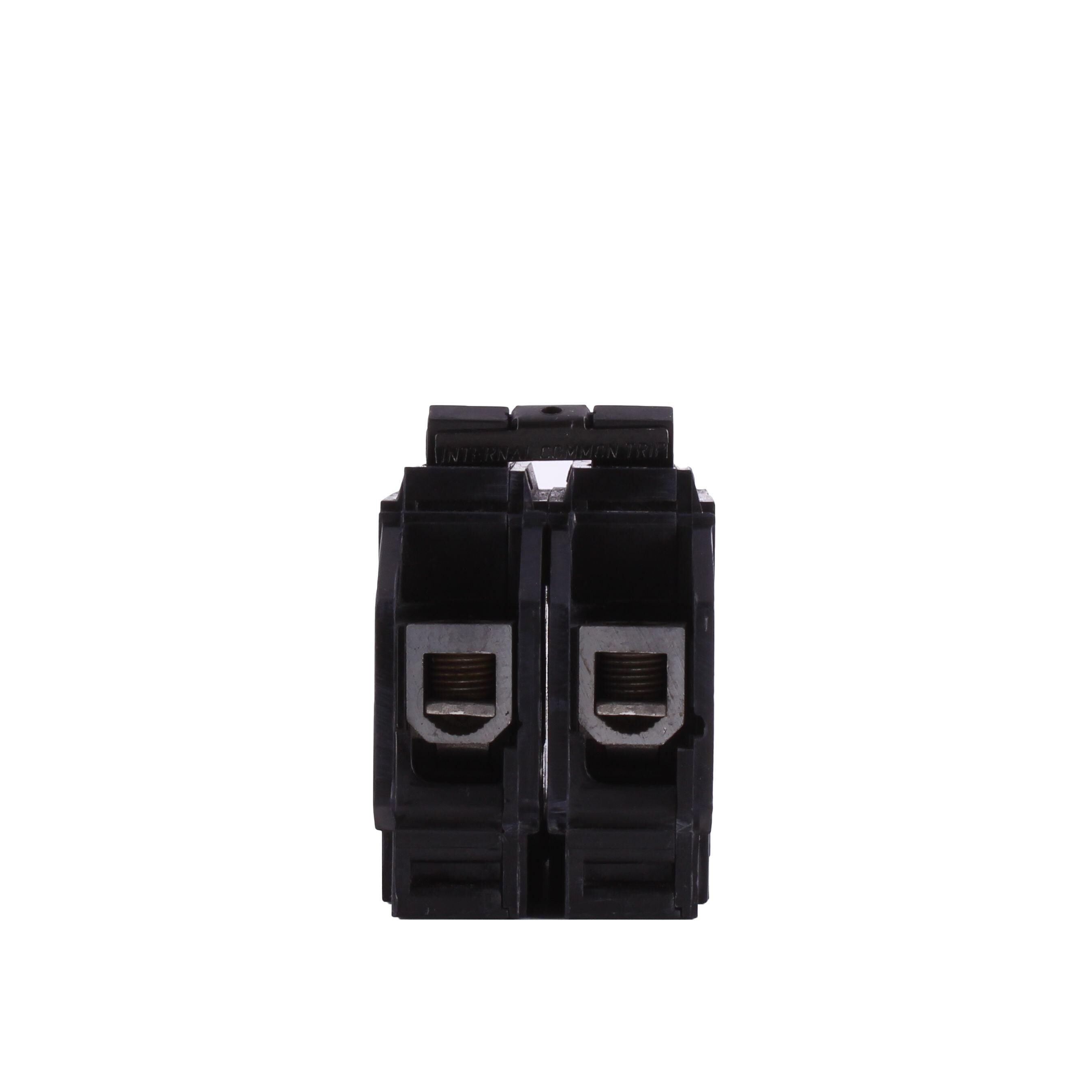

Abb THQC21100WL Thqc21100wl 100 A

Product Description

The ABB THQC21100WL is a Q line circuit breaker, a compact, thermal-magnetic device designed for residential and commercial applications. These QC breakers are lug-lug versions of the Q Line and are available for 35mm DIN rail mounting. It features quick-make / quick-break mechanisms and easy to spot trip indication. Rated at 100A.

• One-inch wide per pole.
• Features Quick-make / Quick-break mechanisms and common trip bars.
• Designed for residential and commercial applications.

Product Highlights

Compact thermal-magnetic circuit breaker for residential and commercial use with quick-make/quick-break mechanisms.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: THQC21100WL
• Country of Origin: UKN

Technical Specifications

• Frame: Q-Line
• Trip Type: Thermal Magnetic
• Trip Range: Non-Interchangeable
• Load Rating: HACR
• Amperage Rating: 100 A
• Number of Poles: 2
• Interrupt Rating: 10 kA@120 Vac / 10 kA@120/240 Vac
• Product Line: Q-Line (Lug-Lug)
• Trip Style: Non-Interchangeable
• Frame Type: Q-Line
• System Voltage: 120 Vac
• Poles: 2
• Trip Function: LI
• Continuous Current Rated: Standard
• 120 Vac Interrupting Rating: 10 KAIC
• 120/240 Vac Interrupting Rating: 10 KAIC
• Suitable for Reverse Feed: Yes
• Long Time: Fixed
• Instantaneous: Fixed
• Special Markings: HACR
• Brand: ABB
• MPN: THQC21100WL
• Breaker Mechanism Type: Toggle
• Breaker Number of Poles: Two Pole
• Breaker Voltage Rating: 240 VAC
• Breaker Amperage Rating: 100 Amp
• Component: Miniature Circuit Breaker
• Breaker Function: LI
• Manufacturer: ABB
• Line: Q-Line (Lug-Lug)
• Actuator Type: Pivot/Toggle Handle
• Connection Type: Line/Load Lug
• Frequency Rating: 50/60 Hz
• Material: Plastic
• Mounting Type: Plug-In
• Phase: 1
• Temperature Rating: 10 to 50 deg C
• Type: Type THQC Compact
• Voltage Rating: 120/240 V AC
• Wire Size: 6 to 1/0 AWG, 4 to 1/0 AWG
