Abb THQB32035 THQB32035 Abb 35A

Product Description

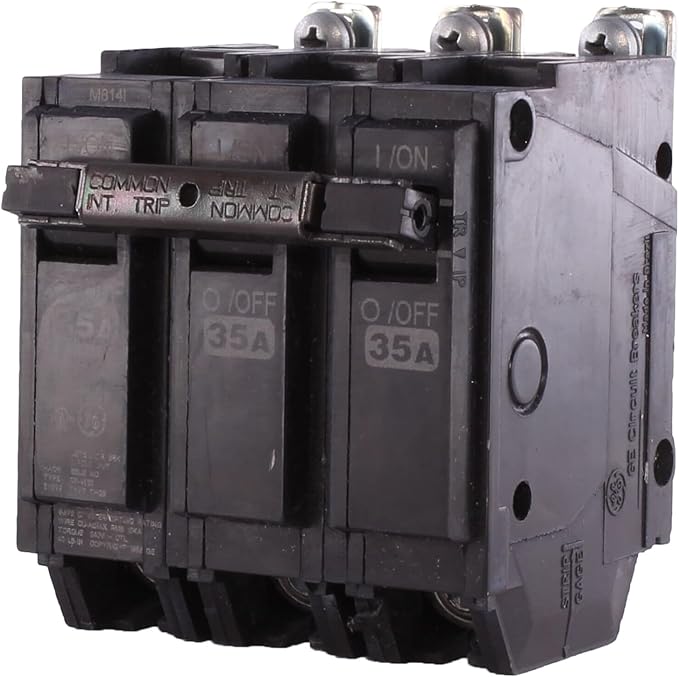

The ABB THQB32035 is a Q line circuit breaker, a compact, thermal-magnetic device designed for residential and commercial applications. These QB breakers are bolt-on versions of the Q Line used for bolting to the bus connections of load centers and lighting panels. It has a 35A capacity and 240V rating, ensuring effective management of electrical loads and system safety.

• One-inch wide per pole, compact, thermal-magnetic devices designed for residential and commercial applications.
• Features Quick-make / Quick-break mechanisms and common trip bars.
• Easy to spot trip indication to ensure safety and reliability.

Product Highlights

This 3-pole breaker offers a 10 KAIC interrupting capacity at up to 240V, capable of handling high fault conditions within 120 Vac, 120/240 Vac, and 240 Vac systems.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: THQB32035

Technical Specifications

• Category: Q-Line Miniature Circuit Breakers
• Product Line: TEY / Q-Line (Bolt-On)
• Trip Style: Non-Interchangeable
• Frame Type: Q-Line
• Amperage: 35 A
• Poles: 3
• Trip Function: LI
• Continuous Current Rated: Standard
• 120 Vac Interrupting Rating: 10 KAIC
• 120/240 Vac Interrupting Rating: 10 KAIC
• 240 Vac Interrupting Rating: 10 KAIC
• Suitable for Reverse Feed: Yes
• Long Time: Fixed
• Instantaneous: Fixed
• Special Markings: HACR
• UL File #: E11592
• Brand: GE
• Current Rating: 35 Amps
• Circuit Breaker Type: Standard
• Mounting Type: Bolt-On Mount
• Voltage: 240 Volts
• Maximum Amperage (A): 35 A
• Width: 3.0
• Height: 3.5
• Depth: 2.81
• A.I.C. Rating & Volts: 10k @ 240VAC
• Type: THQB
• Additional Notes: HACR Rated, Q-Line, Bolt-On, Molded Case Circuit Breaker
