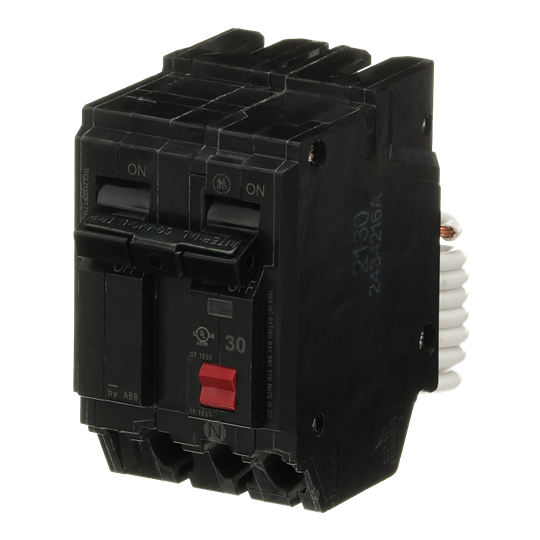

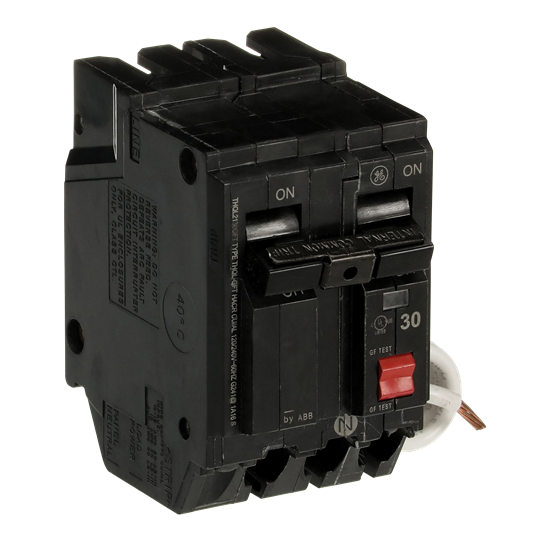

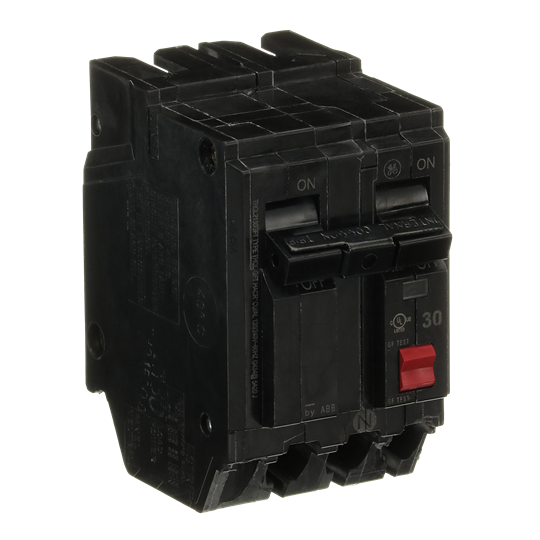

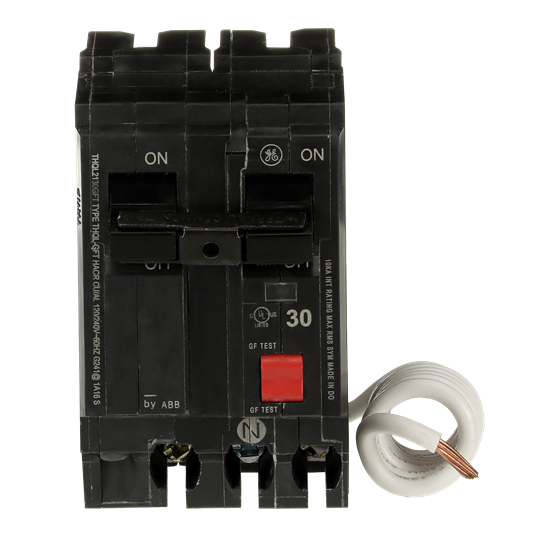

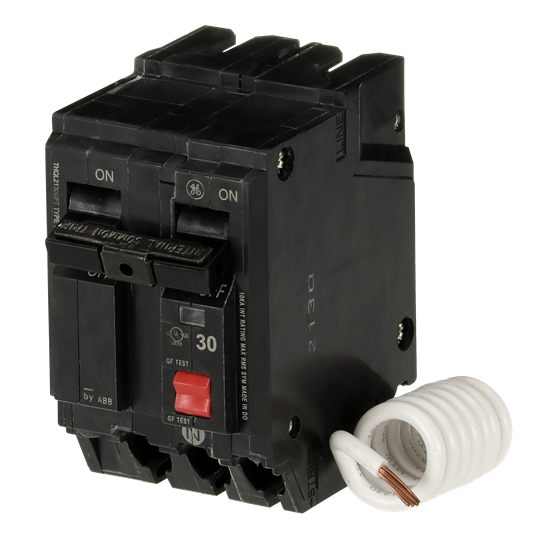

Abb THQB2130GFT THQL 2P 120/240V

Product Description

The ABB THQB2130GFT is a THQL 2P 120/240V circuit breaker. This Q-Line Model 3 ground fault circuit interrupter has a voltage rating of 240V and an amperage rating of 30A. It features a non-interchangeable trip range and is HACR load rated.

• 2-pole configuration
• Interrupt rating of 10kA at 120/240 Vac
• Model 3 Ground Fault Circuit Interrupter (GFCI)

Product Highlights

The ABB THQB2130GFT is suitable for circuit protection applications requiring ground fault interruption.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: THQB2130GFT
• Country of Origin: UKN

Technical Specifications

• Voltage Rating: 240 V
• Amperage Rating: 30 A
• Application: Ground Fault Circuit Interrupter (GFCI)
• Frame: Q-Line
• Interrupt Rating: 10kA@120/240 Vac
• Number Of Poles: 2
• Load Rating: HACR
• Trip Type: LIG
• Trip Range: Non-Interchangeable
• Standard: E51075
• Brand: ABB
• Category: Circuit Breakers
• Family Brand Name: Q-line
