ABB TH924MV B24 SGL LOCK SYS 1XPG29

Product Description

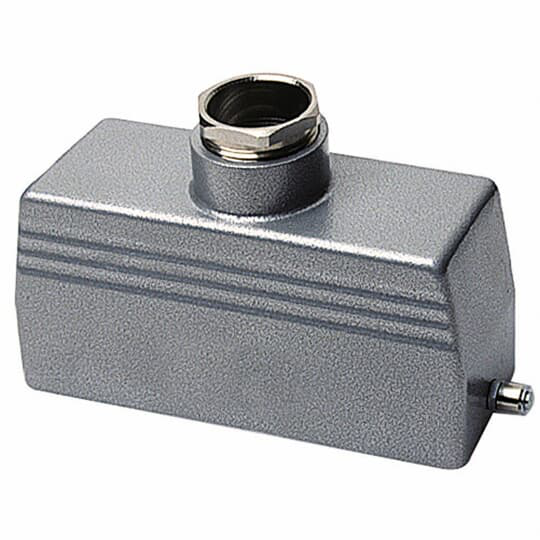

The ABB TH924MV is a top entry single post hood with an NPT entry of one inch by one inch. This product is designed for industrial connectors and is made from die-cast aluminum for durable performance. The finish is epoxy powder coated to provide additional protection and longevity in demanding environments.

• Top entry position for easy access
• Rated for a temperature range of negative forty to two hundred fifty-seven degrees Fahrenheit
• Meets CSA and UL standards for use in various applications

Product Highlights

This single post hood is ideal for applications where robust performance is required, especially in industrial settings.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: TH924MV

Technical Specifications

• Type: Top Entry, Rectangular
• Voltage Rating: 600 Volt
• Amperage Rating: 16 Amp
• Material: Die Cast Aluminum
• Standard Compliance: CSA 70013, UL E215386
• Temperature Rating: -40 to 257 degrees F
• Connection Type: NPT
• Environmental Rating: UL 94 V0 Flammability
