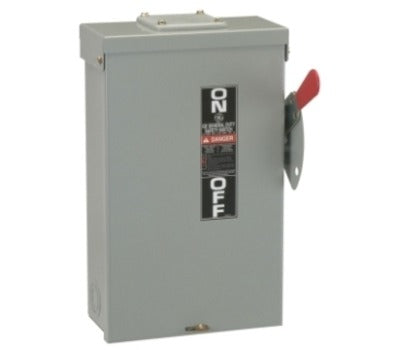

Abb TGN3323R Switch SAF 240VAC 100A 3 Poles

Product Description

The ABB TGN3323R is a general duty, non-fusible safety switch designed for residential and light commercial applications. Rated at 240 VAC and 100 A, this 3-pole switch is suitable for standard fuse and time delay applications. It features a quick-make, quick-break mechanism and a NEMA 3R enclosure for outdoor use.

• General Duty Safety Switch
• Non-Fusible design
• NEMA 3R enclosure for outdoor use

Product Highlights

This ABB safety switch is ideal for residential and light commercial applications. It is a reliable and easy-to-install solution for various safety switch needs.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: TGN3323R

Technical Specifications

• Voltage: 240 VAC
• Amperage: 100 A
• Fuse Type: Class H/K/J/R
• Poles: 3
• Category: General Duty
• Wires: 3
• Fusing: No Fuse
• Enclosure: NEMA 3R (Outdoor)
• Wire Range (Cu/Al): 10-1/0
• 240 Vac, NEC Std, 1-ph: 15.0 hp
• 240 Vac, NEC Std, 3-ph: 30.0 hp
• 250 Vdc: 20.0 hp
• GSA Compliance: Yes
• cUL Listed: Yes
• UL Listed: Yes
• Height: 15.55 in
• Depth: 5.04 in
• Width: 9.32 in
• Amperage Rating: 100 A
• Horsepower: 15/hp Standard Fuse/30 hp Time Delay
• Number of Poles: 3
• Voltage Rating: 240 VAC
• Type: General Duty Non-Fusible
• Series: TGN
• Phase: 1/3
• Frequency Rating: 50/60 Hz
• Number of Wires: 3
• Short Circuit Current Rating: 100 kA
• Actuator Type: Handle
• Mounting Type: Surface
• Temperature Rating: 60/75 deg C
• Material: Steel
• UNSPSC: 39122205
• Approval: UL 98, CUL, CSA C22.2
• Neutral Type: No
• Current Rating: 100 Amp
• Fuse Provision: Non-Fusible
• DC Voltage Rating: 250 Volt
• AC Voltage Rating: 240 Volt
