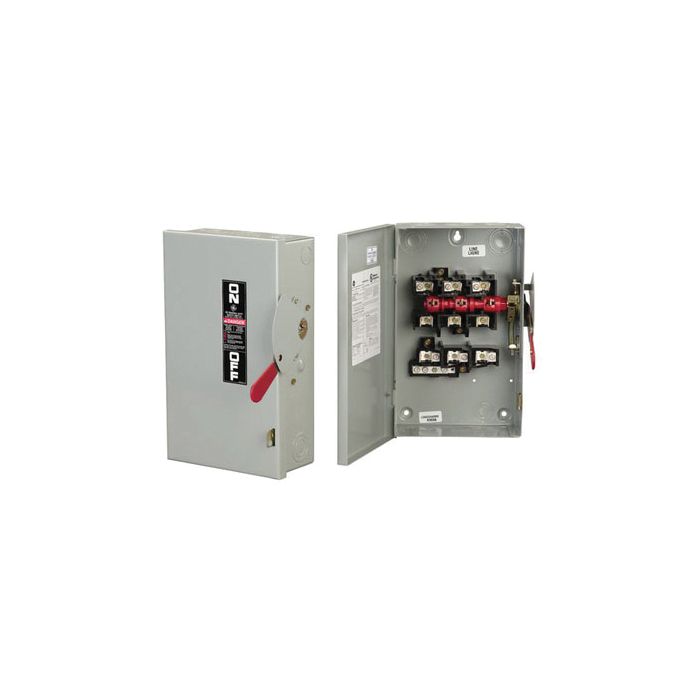

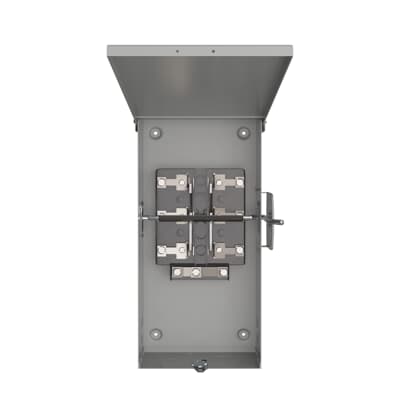

Abb TG3222 Switch Saf 240VAC 60A 2 Poles

Product Description

The ABB TG3222 is a Spec-Setter™ TG Series fusible general-duty safety switch, designed for residential and light commercial applications. Rated at 240 VAC and 60 A, this 2-pole switch is suitable for standard fuse/time delay applications. It features a quick-make, quick-break mechanism and an integral cover interlock for added protection.

• Fusible safety switch for general duty applications
• Rated for 240 VAC and 60 A
• Features a 2-pole configuration

Product Highlights

This ABB safety switch is designed for residential and light commercial applications. It is a fusible general duty switch with a quick-make, quick-break mechanism.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: TG3222

Technical Specifications

• Voltage: 240 VAC
• Amperage: 60 A
• Fuse Type: Cartridge, Class H/K/R
• Poles: 2
• Category: General Duty
• Wires: 3
• Fusing: Fusible
• Enclosure: NEMA 1
• Wire Range (Cu/Al): 12-2
• GSA Compliance: Yes
• cUL Listed: Yes
• UL Listed: Yes
• Height: 13.8
• Depth: 4
• Width: 8.4
• Approval: UL 98, CSA
• Neutral Type: No
• Current Rating: 60 Amp
• Fuse Provision: Fusible
• DC Voltage Rating: 125/250 Volt
• AC Voltage Rating: 240 Volt
• Manufacturer: ABB Electrification
• Horsepower: 3 hp Standard Fuse/10 hp Time Delay
• Number of Poles: 2
• Length: 14.44
• Type: Fusible General Duty
• Series: TG Series
• Phase: 1
• Frequency Rating: 50/60 Hz
• Number of Wires: 3
• Short Circuit Current Rating: 100 kA
• Actuator Type: Handle
• Enclosure Type: NEMA 1
• Mounting Type: Surface
• Temperature Rating: 60/75 deg C
• Material: Steel
• Amperage Rating: 60 A
