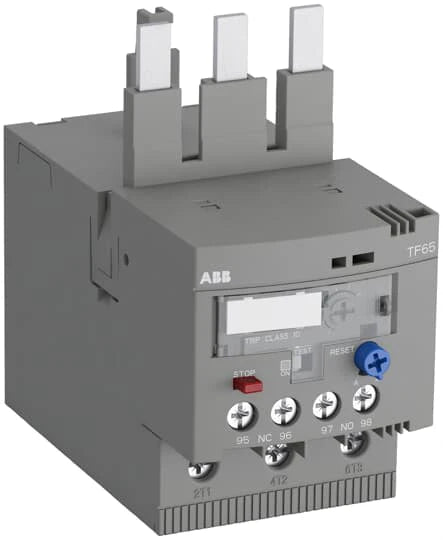

ABB TF65-47 Thermal Overload Relay 36

Product Description

The ABB TF65-47 thermal overload relay is a device designed to protect motors in the main circuit against overloads and phase failures. This electromechanical protection unit operates with a trip class of 10. It includes key features such as temperature compensation, trip contacts, and a choice between automatic or manual reset. The relay also has a trip-free mechanism and provides stop functionality along with trip indication.

• Provides fast protection for motors in overload conditions
• Compatible with block contactors for direct connection
• Includes mounting kits that are available separately

Product Highlights

Reliable electromechanical protection for motor applications with versatile reset options.

Product Information

Standard Information

• Manufacturer: ABB
• Part Number: 590063

Technical Specifications

• Type: Manual/Auto Reset
• Class: Class 10
• Voltage: Main Circuit: 690 VAC/440 VDC, Auxiliary Circuit: 600 V
• Amperage: 36-47 Amp
• Wire Size: (1) 12-2 AWG, (2) 12-6 AWG Stranded/Flexible
• Power Rating: 2.1 - 3.6 W
• Number of Poles: 3 Pole
• Temperature Rating: -25 to 60 degrees C
