Product Description

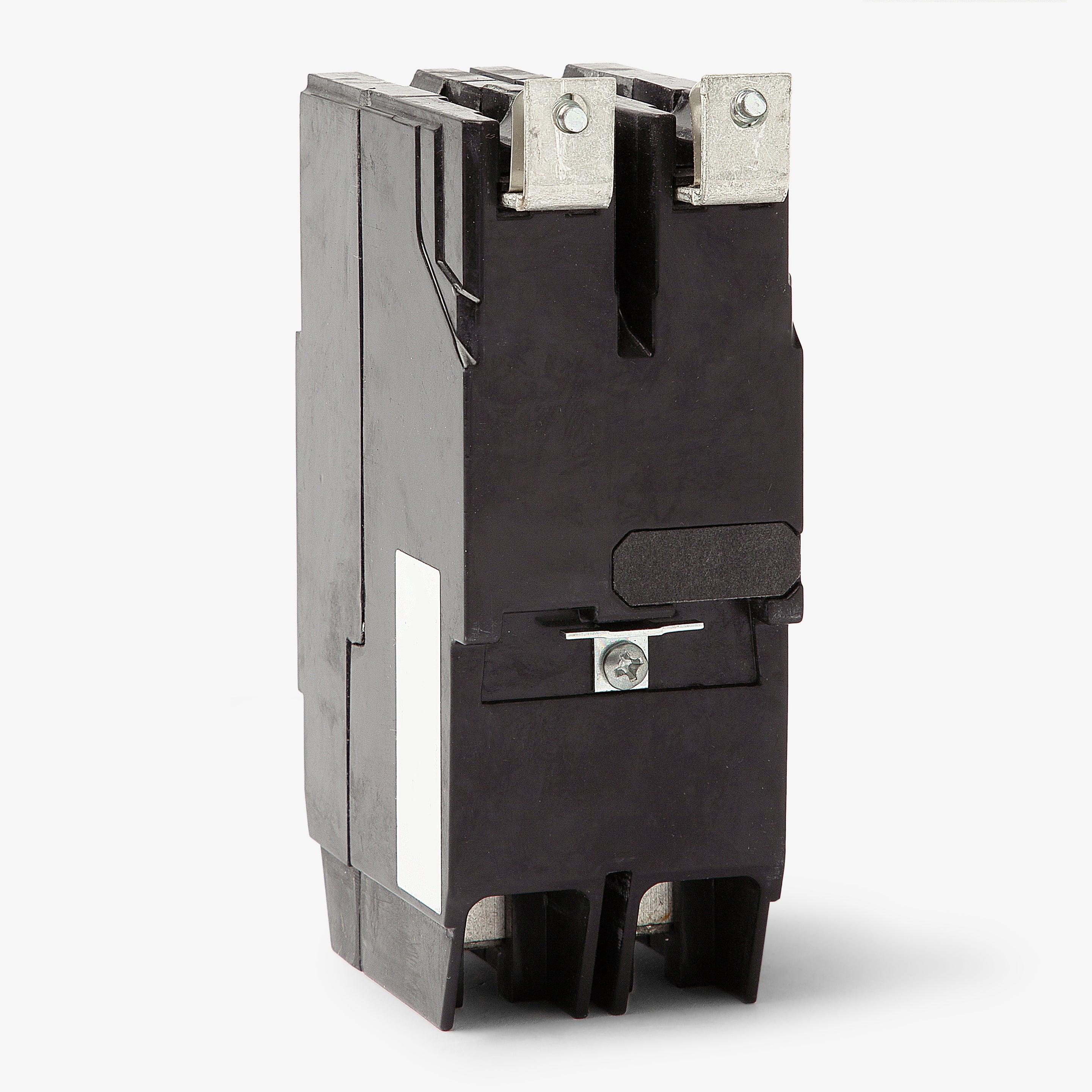

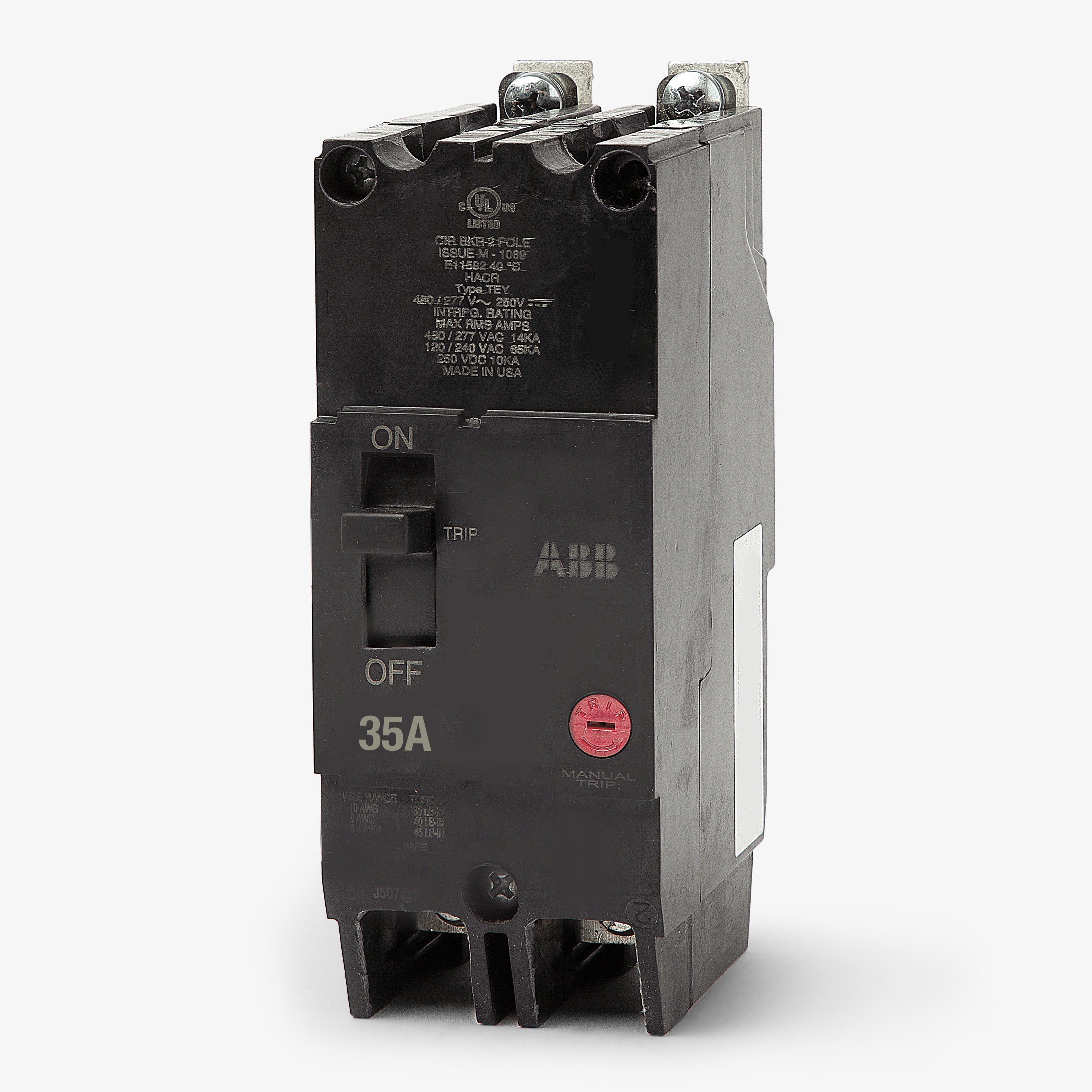

The ABB TEY235 is a compact, "bolt-on" circuit breaker for use on grounded 480Y/277 Vac systems. This 2-pole, 35A molded case circuit breaker provides multi-phase protection and features Quick-make / Quick-break mechanisms and easy to spot trip indication. It ensures a reliable connection within GE A-Series panelboards.
- Suitable for reverse feed

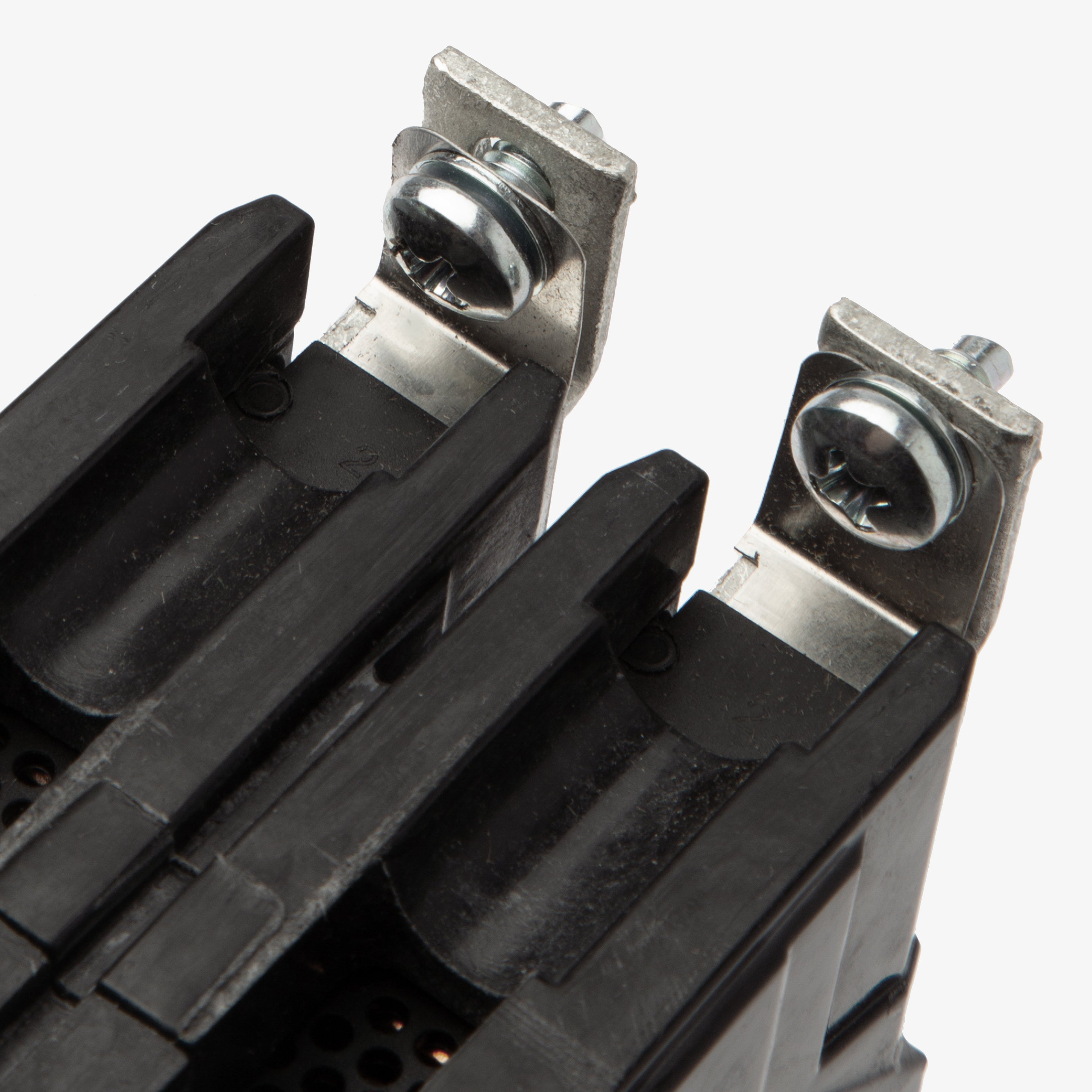

- Sturdy bolt-on mounting design

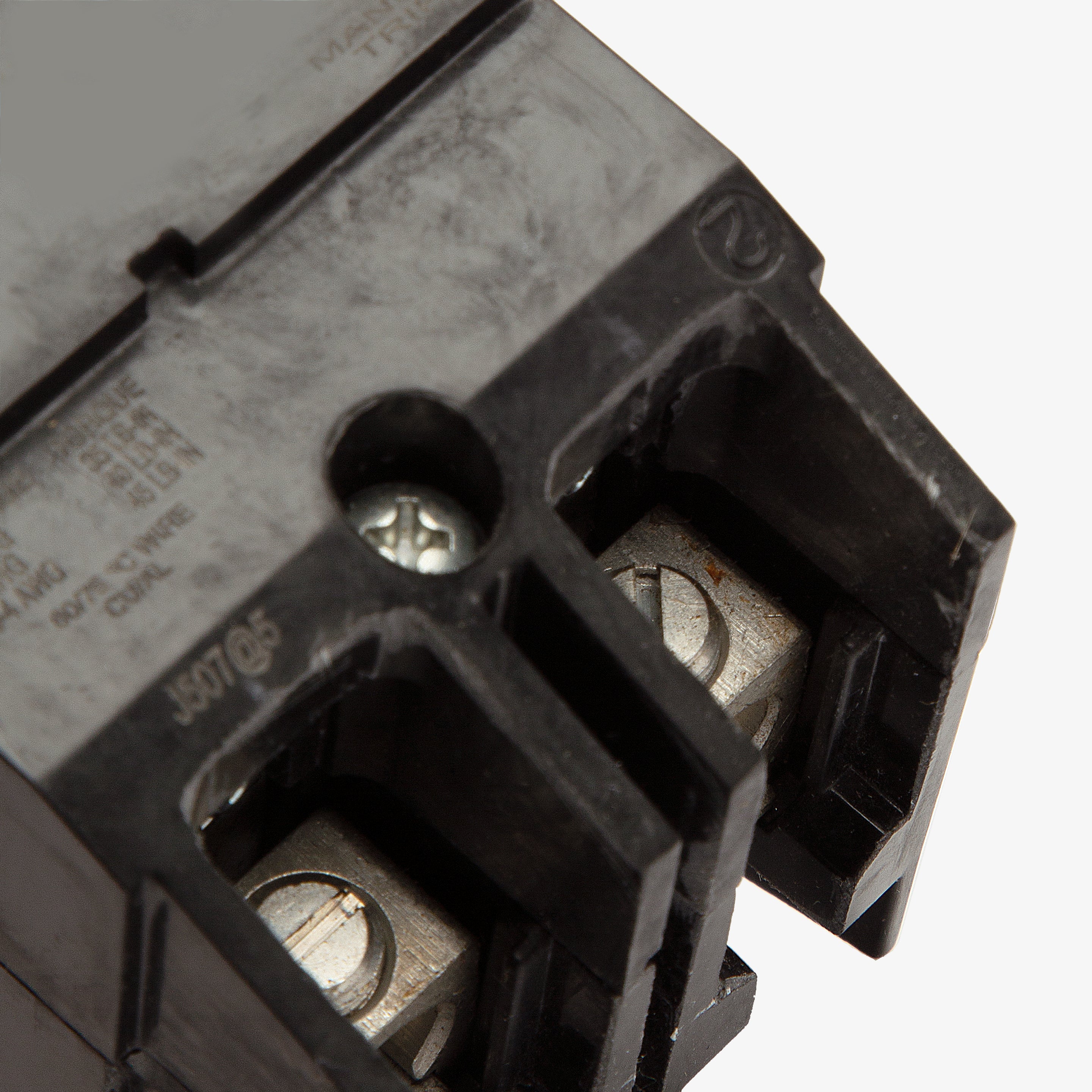

- Line and load lugs for 10-4 AWG wire
Product Highlights
The ABB TEY235 circuit breaker is designed to handle the demands of commercial electrical environments. It is available with auxiliary contact and shunt trip accessories.
Product Information
Standard Information
-
Brand: ABB
-
Manufacturer Part Number: TEY235
Technical Specifications
-
Category: Lighting Panel Circuit Breakers
-
Product Line: TEY / Q-Line (Bolt-On)
-
GO Schedule: EB
-
Trip Style: Non-Interchangeable
-
Poles: 2
-
Amperage: 35A
-
System Voltage: 480Y/277 Vac
-
Frame Type: TEY
-
120 Vac Interrupting Rating: 65 KAIC
-
120/240 Vac Interrupting Rating: 65 KAIC
-
240 Vac Interrupting Rating: 65 KAIC
-
277 Vac Interrupting Rating: 14 KAIC
-
Trip Function: Long-Time, Instantaneous
-
Continuous Current Rated: Standard
-
Suitable for Reverse Feed: Yes
-
Long Time: Fixed
-
Instantaneous: Fixed
-
Current Metering: No
-
Protective Relays: No
-
Special Markings: HACR
-
HID: HID
-
Wire Range (Cu/Al): 14-8 kcmil / 12-8 kcmil
-
Brand: ABB / General Electric
-
Series: TEY
-
Part Number: TEY235
-
Phase: 1
-
AIC Rating: 65kA @ 120VAC, 65kA @ 240VAC, 14kA @ 480Y/277VAC, 10kA @ 250VDC, 65kA @ 120/240VAC
-
Mounting Style: Bolt-On
-
Terminal Type: Lugs
-
For Use With: GE A-Series Panelboards
-
Trip Technology: Thermal Magnetic
-
Trip Function Code: LI
-
Trip Adjustability: Fixed Thermal, Fixed Magnetic
-
Wire Gauge: 10-4 AWG (Cu/Al)
-
Max Wire: 4 AWG
-
Min Wire: 10 AWG
-
Available Options: Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Padlock Attachment
-
Accessories: Line and Load Lugs Included
-
Standards: CSA C22.2 No. 5, UL 489
-
Approval: CSA, HACR, HID, UL
-
Temp Rating: 40C
-
Construction Features: HACR Rated, HID Rated, Common Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Non-Interchangeable Trip
