Product Description

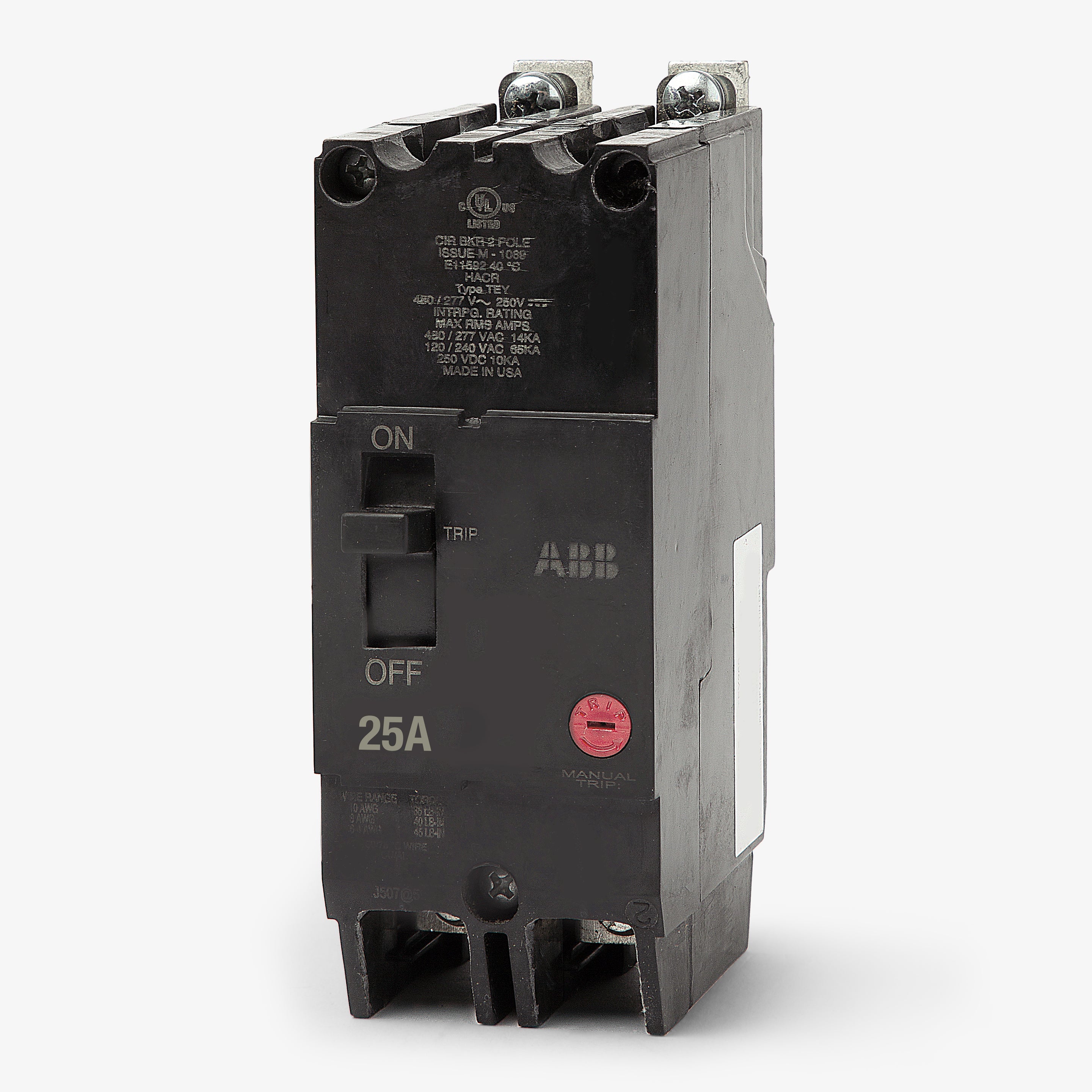

The ABB TEY225 MCCB 2P 25A Bolt-On is a compact circuit breaker for grounded 480Y/277 Vac systems. Designed with a one-inch wide pole and bolt-on mounting, it is suitable as a lug-lug breaker. Features include Quick-make / Quick-break mechanisms and easy trip indication for safety. It can be ordered with auxiliary contact and shunt trip accessories.
- Compact, "bolt-on" circuit breaker
- Suitable for varied applications as a lug-lug breaker
- Quick-make / Quick-break mechanisms
Product Highlights
The TEY series offers a reliable solution for various electrical needs with its customizable options and robust design.
Product Information
Standard Information
-
Brand: ABB
-
Manufacturer Part Number: TEY225
Technical Specifications
-
Category: Lighting Panel Circuit Breakers
-
Product Line: TEY / Q-Line (Bolt-On)
-
GO Schedule: EY
-
Trip Style: Non-Interchangeable
-
Poles: 2
-
Amperage: 25 A
-
System Voltage: 120 Vac
-
120/240 Vac: 240 Vac
-
277 Vac: 277 Vac
-
Frame Type: TEY
-
120 Vac Interrupting Rating: 65 KAIC
-
120/240 Vac Interrupting Rating: 65 KAIC
-
240 Vac Interrupting Rating: 65 KAIC
-
277 Vac Interrupting Rating: 14 KAIC
-
Trip Function: LI
-
Continuous Current Rated: Standard
-
Suitable for Reverse Feed: Yes
-
Long Time: Fixed
-
Instantaneous: Fixed
-
Current Metering: No
-
Protective Relays: No
-
Special Markings: HACR
-
HID: HID
-
Wire Range (Cu/Al): 14-8 kcmil / 12-8 kcmil
-
Brand: ABB / General Electric
-
Series: TEY
-
Part Number: TEY225
-
Voltage: 120VAC, 240VAC, 480Y/277VAC, 250VDC, 120/240VAC
-
Phase: 1
-
AIC Rating: 65kA @ 120VAC, 65kA @ 240VAC, 14kA @ 480Y/277VAC, 10kA @ 250VDC, 65kA @ 120/240VAC
-

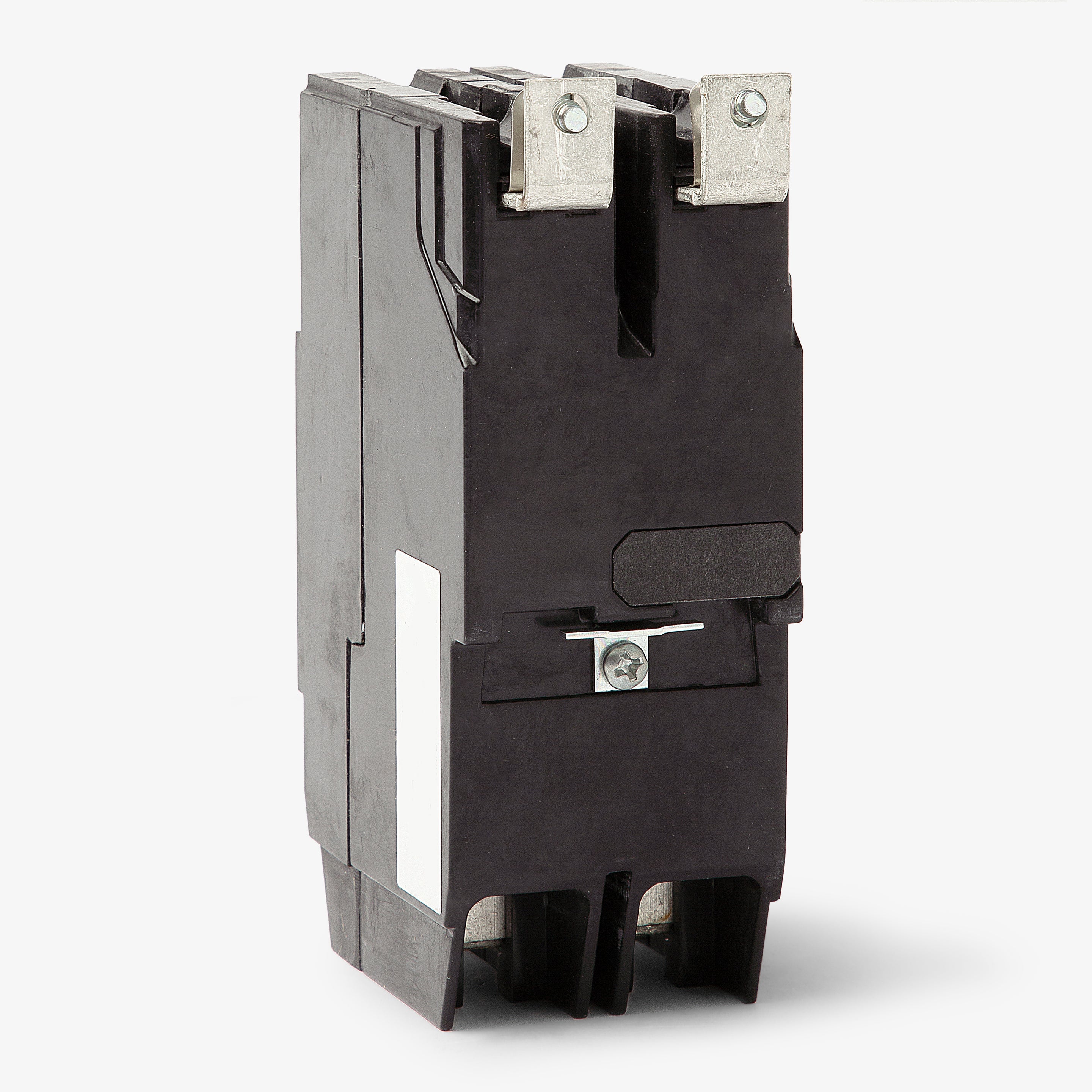

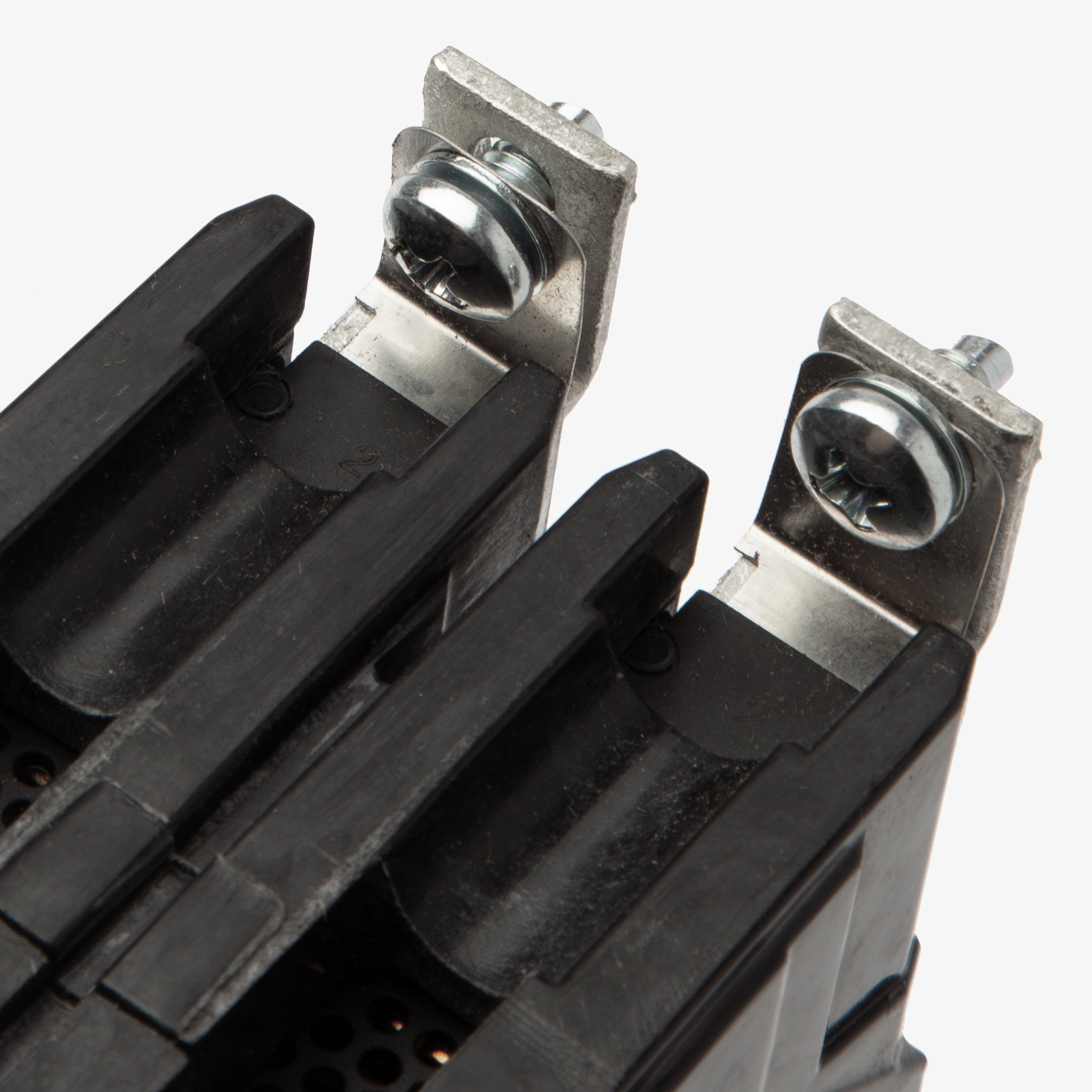

Mounting Style: Bolt-On
-

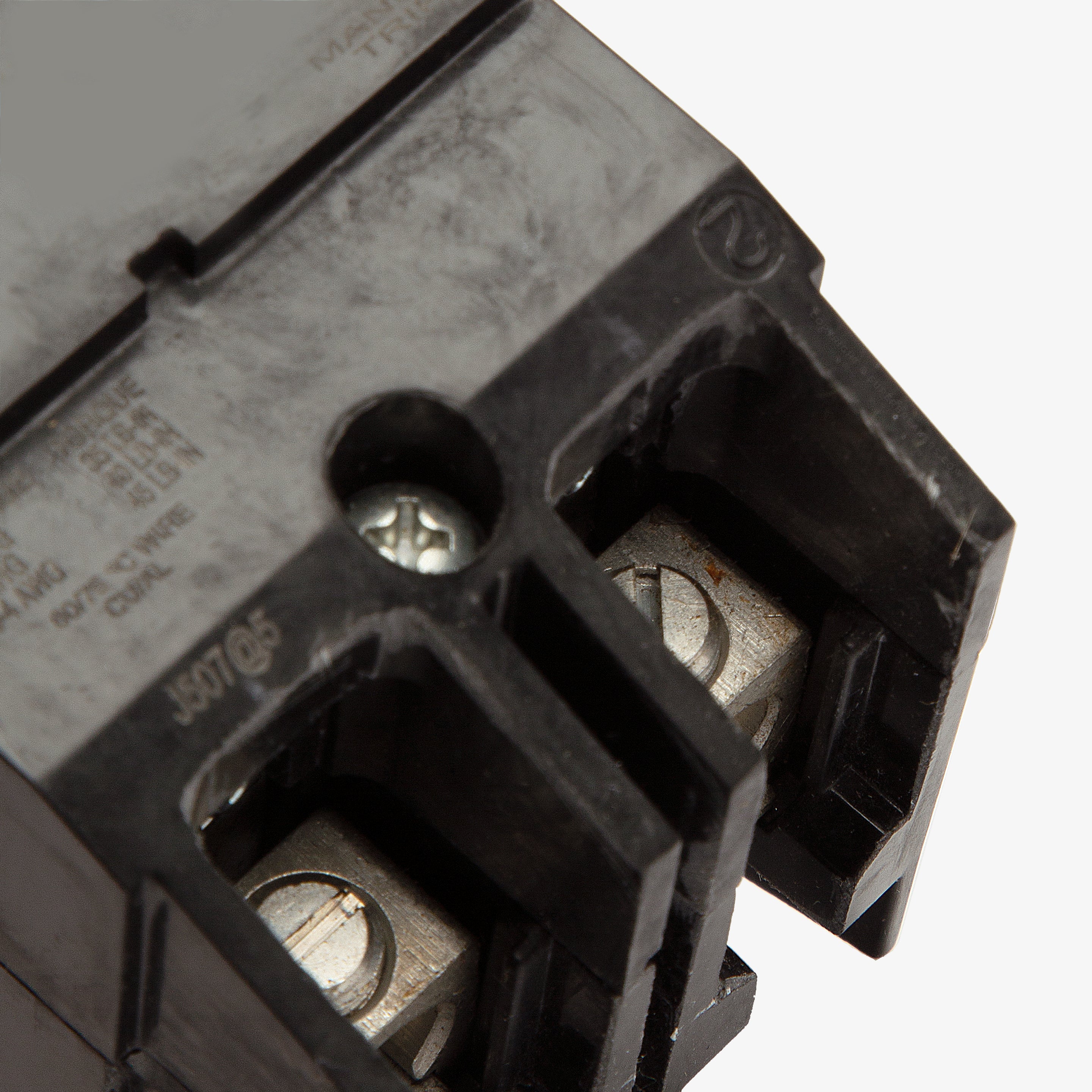

Terminal Type: Lugs
-
For Use With: GE A-Series Lighting Panelboards
-
Trip Technology: Thermal Magnetic
-
Trip Function Code: LI
-
Trip Adjustability: Fixed
-
Wire Gauge: 14-10 AWG (Cu), 12-10 AWG (Al)
-
Max Wire: 10 AWG
-
Min Wire: 14 AWG (Cu), 12 AWG (Al)
-
Available Options: Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Handle Lock
-
Accessories: Auxiliary Switch (AS1A/AS1B), Shunt Trip (ST12)
-
Standards: CSA C22.2 No. 5, UL 489
-
Approval: CSA, HACR, HID, UL
-
Temp Rating: 40C
-
Construction Features: HACR Rated, HID Rated, Common Trip, Quick-Make/Quick-Break, Non-Interchangeable Trip
-
Volts AC: 480, 277
-
Amps: 25
-
Family / Style: E150
-
Mounting: Bolt On
-
Interrupt Rating AC: 14 kA
-
Poles (Molded Case Breaker): Two Pole
-
Amperage (Molded Case Breaker): 25 Amp
-
Manufacturer: ABB
-
Component: Molded Case Circuit Breaker
-
Application: Thermal Magnetic
-
Brand Name: TEY / Q-Line (Bolt-On)
-
Load Rating: HACR / HID
-
Trip Type: LI
-
Frame: TEY
-
Amperage Rating: 25A
-
Interrupt Rating: 14kA@277 Vac / 65kA@120 Vac / 65kA@120/240 Vac / 65kA@240 Vac
-
Connection: 14-8 kcmil / 12-8 kcmil
-
Sub Brand: TEY
-
Trip Range: Non-Interchangeable
-
Number Of Poles: 2
-
Standard: E11592
