Product Description

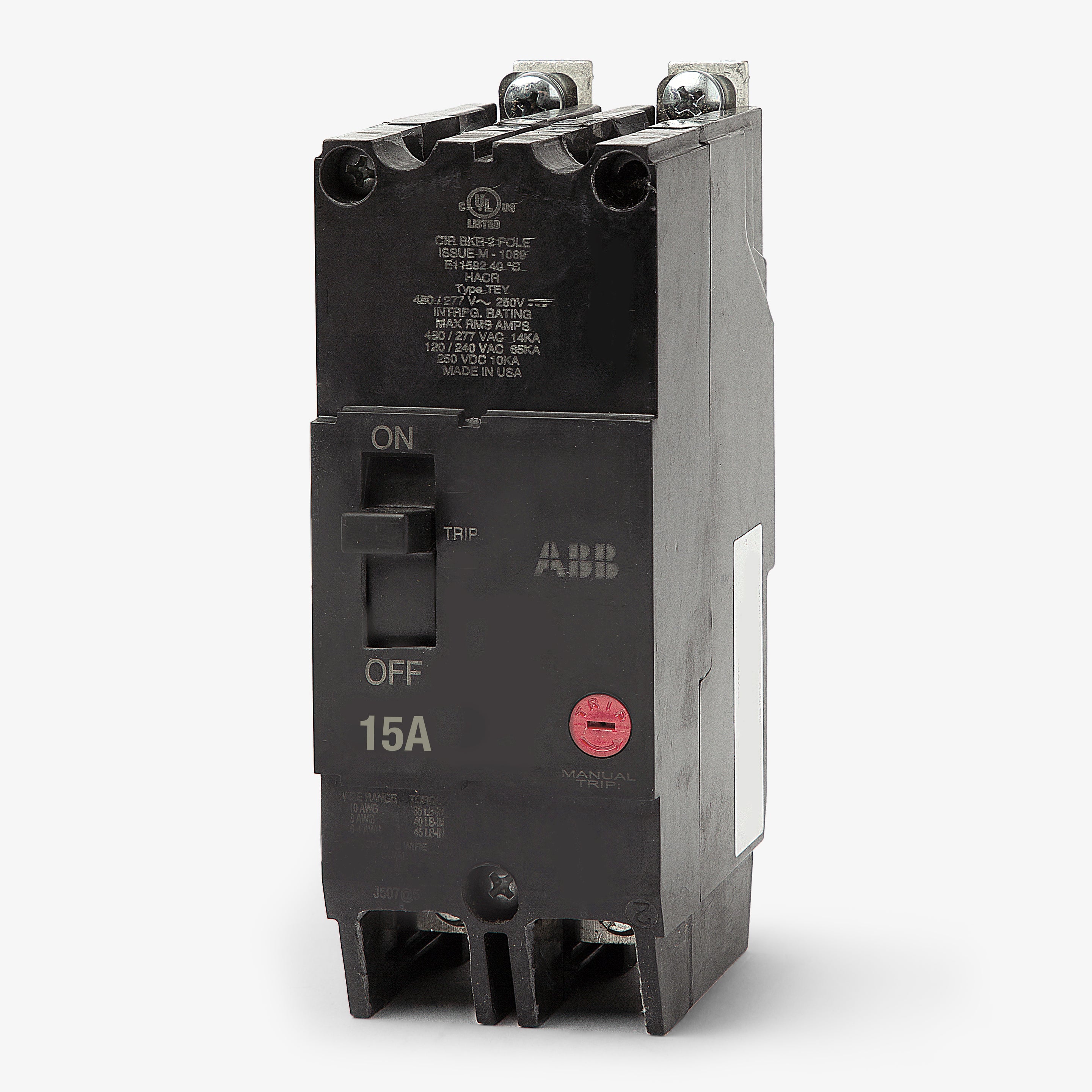

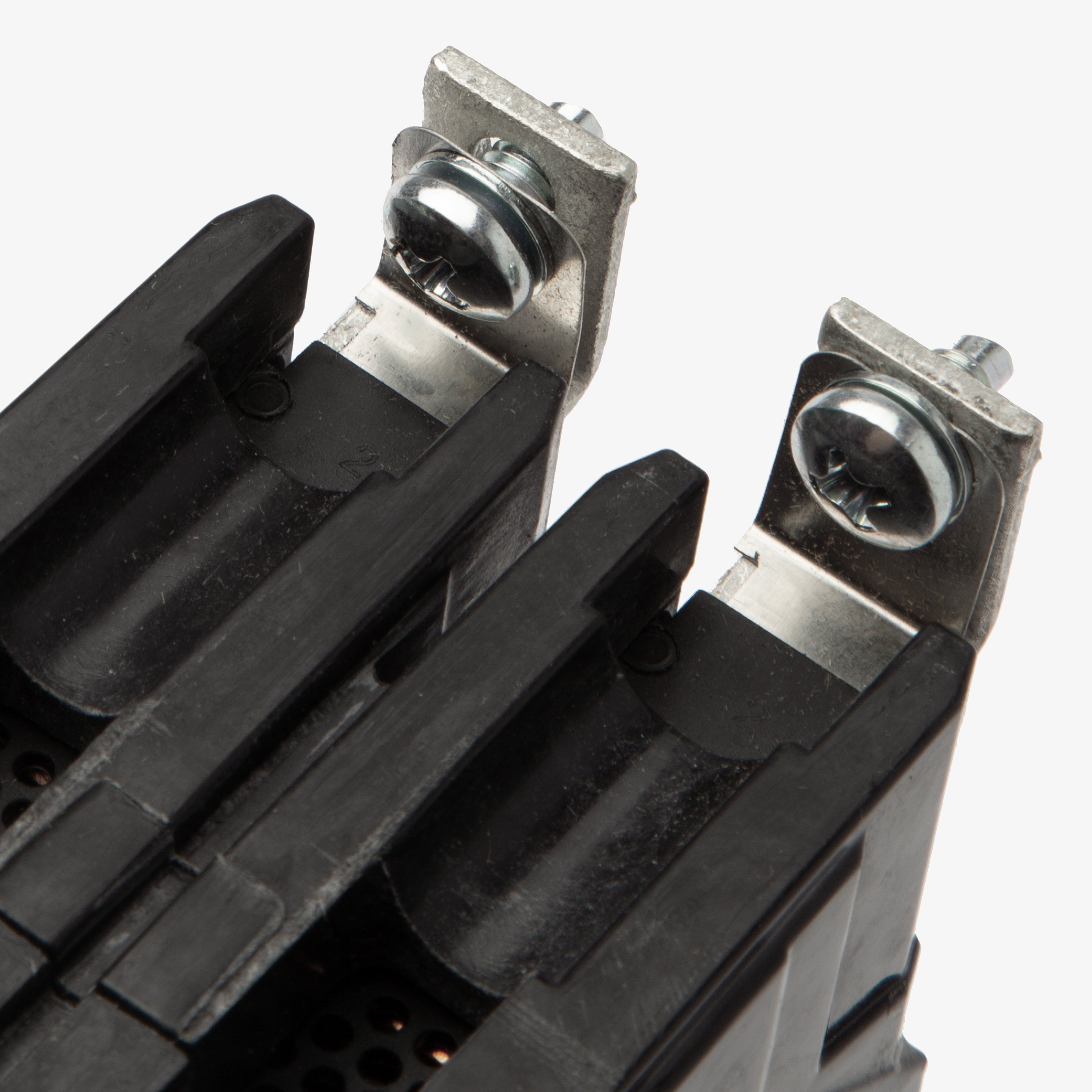

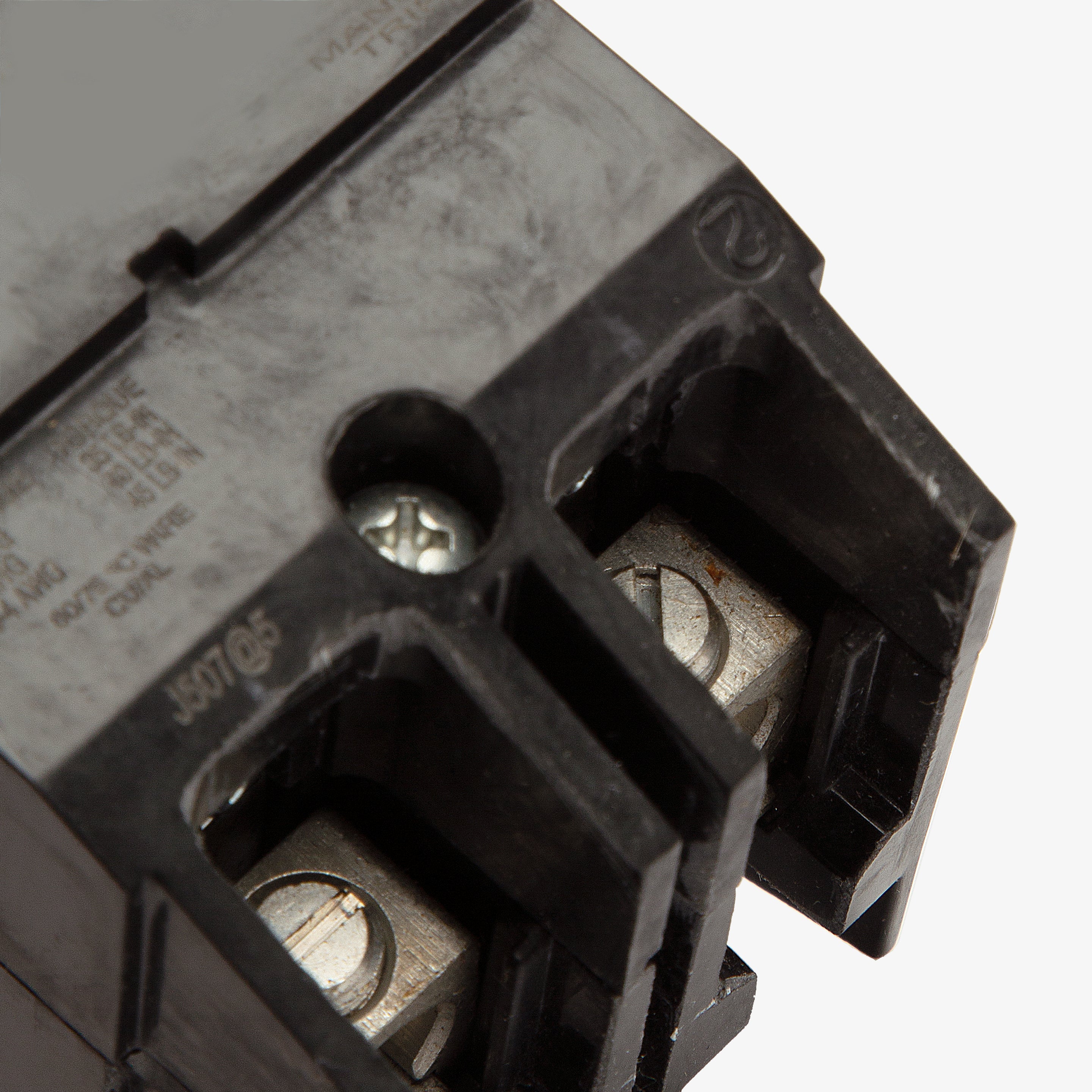

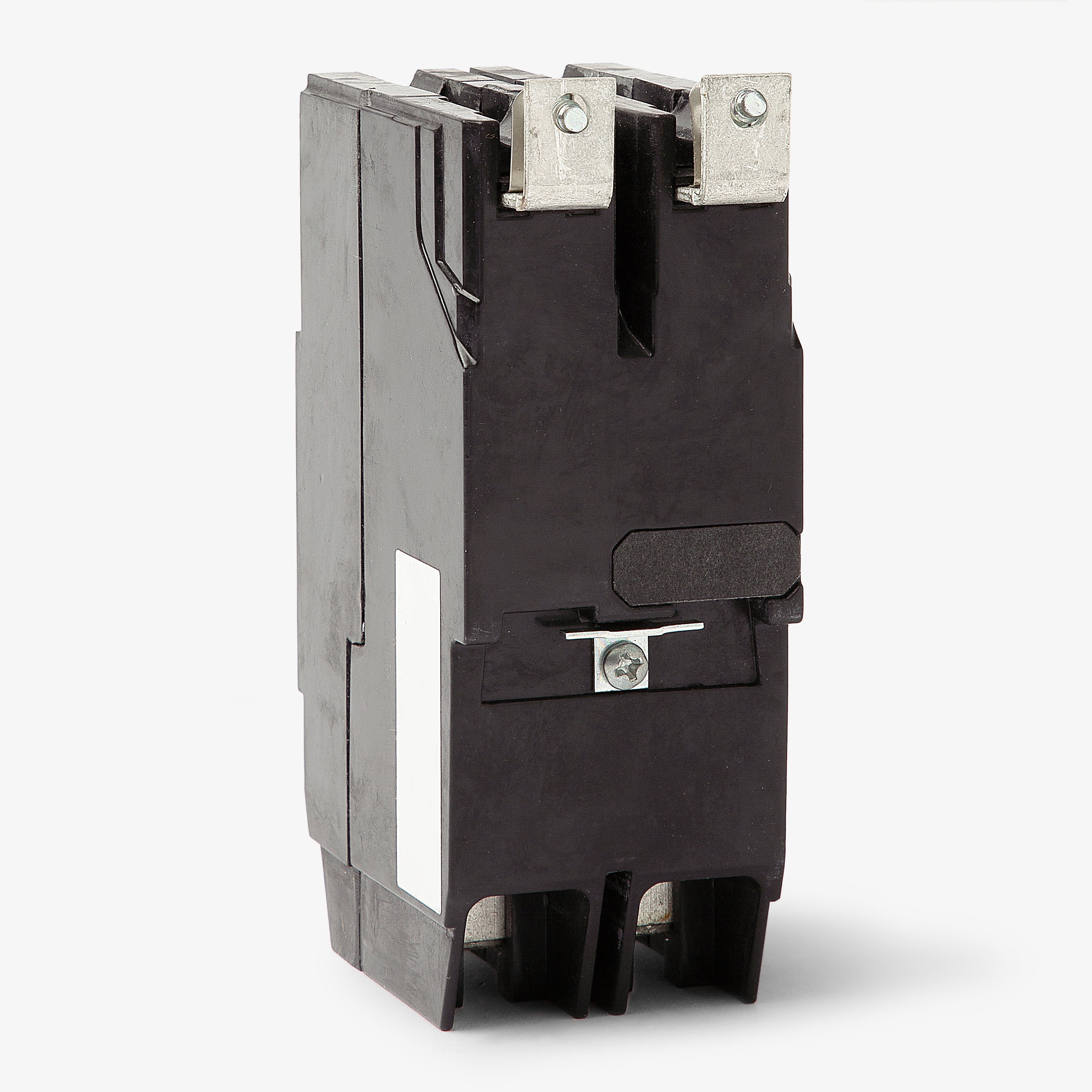

The ABB TEY215 is a one-inch wide per pole, compact, "bolt-on" circuit breaker for use on grounded 480Y/277 Vac systems. The bolt-on mounting base accessory makes the TEY suitable for varied applications as a lug-lug breaker. All TEY circuit breakers feature Quick-make / Quick-break mechanisms and easy to spot trip indication.
- Compact
- Bolt-on
- Quick-make / Quick-break mechanisms
Product Highlights
The ABB TEY215 circuit breaker features common trip bars and easy to spot trip indication to ensure safety and reliability. TEY breakers are available in 1, 2, and 3 pole versions and can be ordered with auxiliary contact and shunt trip accessories.
Product Information
Standard Information
-
Brand: ABB
-
Manufacturer Part Number: TEY215
Technical Specifications
-
Category: Lighting Panel Circuit Breakers
-
Product Line: TEY / Q-Line (Bolt-On)
-
GO Schedule: EY
-
Trip Style: Non-Interchangeable
-
Poles: 2
-
Amperage: 15 A
-
System Voltage: 480Y/277 Vac
-
Trip Function: LI
-
Continuous Current Rated: Standard
-
Suitable for Reverse Feed: Yes
-
Long Time: Fixed
-
Instantaneous: Fixed
-
Current Metering: No
-
Protective Relays: No
-
Special Markings: HACR
-
Wire Range (Cu/Al): 14-8 kcmil / 12-8 kcmil
-
Brand: ABB / General Electric
-
Series: TEY
-
Part Number: TEY215
-
Voltage: 120VAC, 240VAC, 480Y/277VAC, 250VDC, 120/240VAC
-
Phase: 1
-
AIC Rating: 65kA @ 120VAC, 65kA @ 240VAC, 14kA @ 480Y/277VAC, 10kA @ 250VDC, 65kA @ 120/240VAC
-
Mounting Style: Bolt-On
-
Terminal Type: Lugs
-
For Use With: GE A-Series Panelboards
-
Trip Technology: Thermal Magnetic
-
Trip Function Code: LI
-
Trip Adjustability: Fixed Thermal, Fixed Magnetic
-
Wire Gauge: 14-8 AWG (Cu), 12-8 AWG (Al)
-
Max Wire: 8 AWG
-
Min Wire: 14 AWG (Cu), 12-8 AWG (Al)
-
Available Options: Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Padlock Attachment
-
Accessories: Load Side Lugs Included
-
Standards: CSA C22.2 No. 5, UL 489
-
Approval: CSA, HACR, UL
-
Temp Rating: 40C
-
Construction Features: Common Trip, HACR Rated, Non-Interchangeable Trip, Quick-Make/Quick-Break
-
Volts AC: 480, 277
-
Amps: 15
-
Family / Style: E150
-
Mounting: Bolt On
-
Interrupt Rating AC: 14 kA
