Abb SU202M-K8 Mcb 2p K 8a 480

Product Description

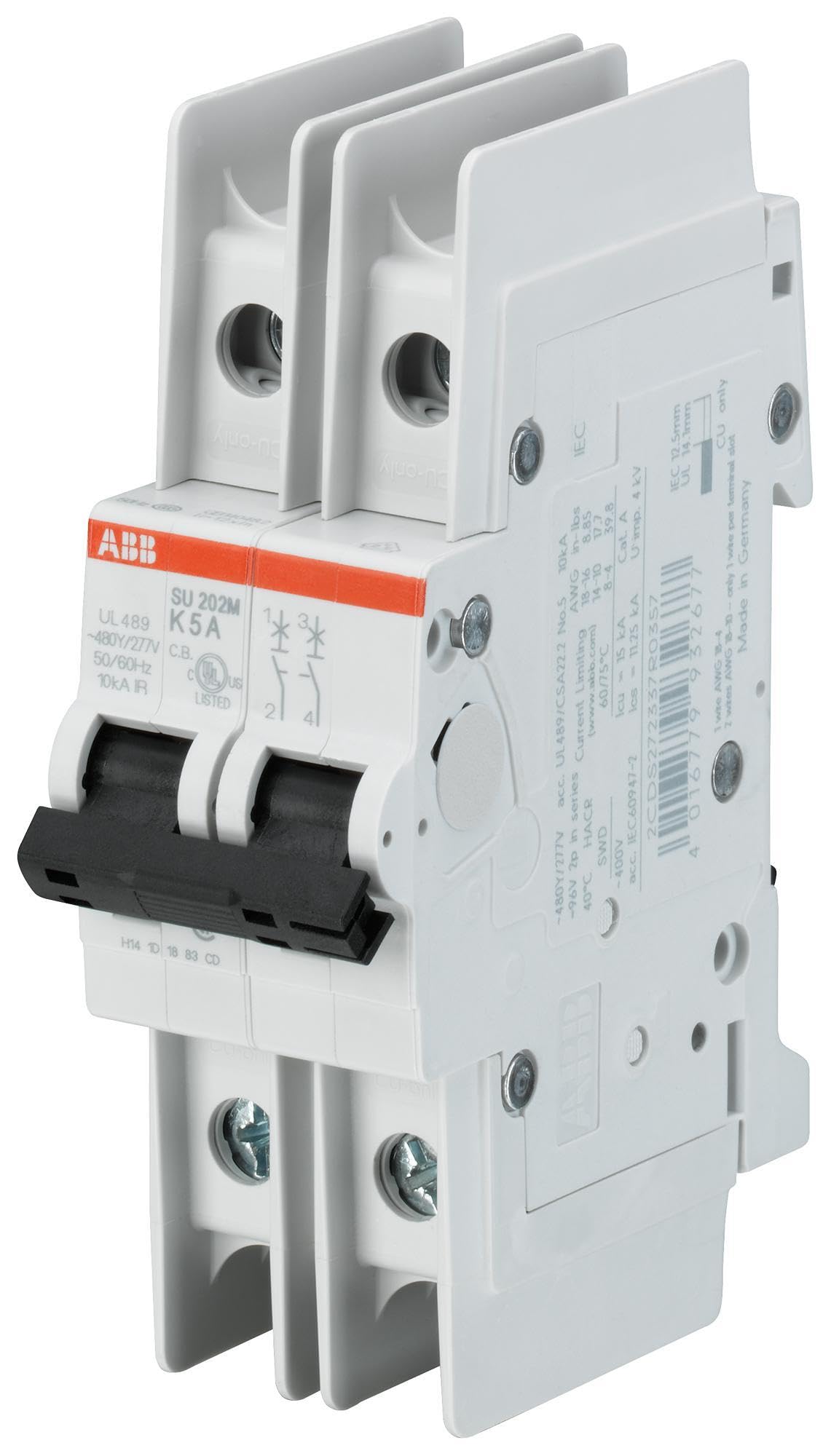

The ABB SU202M-K8 is a miniature circuit breaker providing UL 489 branch circuit protection. Rated at 8 Amps, this 2-pole breaker has a K trip curve and an interrupt rating of 10 kA. It supports voltages up to 277/Y480 VAC and 48/96 VDC and mounts on a DIN rail.

• Rated Current 8 Amps
• Interrupt Rating 10 kA
• Voltage up to 277/Y480 VAC, 48/96 VDC

Product Highlights

The ABB SU202M-K8 is ideal for branch circuit protection with a compact design and reliable performance.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: SU202M-K8

Technical Specifications

• Brand: ABB
• Width: 35 mm
• Height: 111 mm
• Length: 69 mm
• Current: 8 Amp
• Voltage: 277/480 Volt
• Amperage: 8 Amp
• Standard: CSA 22.2 No. 5,EN 60947-2,IEC,UL 489
• Trip Type: K-Curve
• Applications: Branch Circuit Protection
• Power Rating: 1.5 W
• Mounting Type: 35 mm DIN Rail
• Terminal Type: Screw
• Conductor Size: 18-4 AWG/18-8 AWG
• Number of Poles: 2 Pole
• Interrupt Rating: 10 kAIC
• Temperature Rating: -25 to 55 degrees C
• Operating Temperature: -13 to 131F (-25 to 55C)
• Environmental Conditions: 25 C at 95 - 100% Relative Humidity, 55 C at 90 - 96% Relative Humidity, 3 Pollution Degree
• Poles: 2
• Volts AC: 277, 480Y
• Volts DC: 96
• Amps: 8
• Trip Curve: K
• Interrupt Rating AC: 10 kA
• Rated Current: 0.2 to 63 A
• Supply Voltage (Nominal): 480 VAC,277 VAC
• Mount: DIN rail
• Rated Voltage: (AC) 1P: 277 V AC up to 40 A for C, Z char., 277 V AC up to 35 A for K char., 240 V AC (AC) 2P, 3P, 4P: 480 Y / 277 V AC up to 40 A for C, Z char., 480 Y / 277 V AC up to 35 A for K char., 240 V AC (DC) 1P: 48 V DC; 2P: 96 V DC (2p in series)
• Rated Interruption Capacity: 15 kA
• Mounting: On DIN rail 35 mm acc. to EN 60715 by fast clip
• Short Circuit Capacity: 10kA
• Frequency: 50/60 Hz
• Protection Method: Electromechanical (thermal/magnetic)
• Pole dimensions (H x D x W): 111 x 69 x 17.5 mm
• Approvals: CSA, UL
• Manufacturer Part Number: SU202M-K8
• Manufacturer: ABB
• Product Series: SU200M
• Family Series: ABB Circuit Breakers, SU200M Series
• Current Rating: 8 A
• Max Voltage: 240 VAC, 277/480 VAC, 48 VDC, 96 VDC
• Trip Unit: Fixed Thermal / Fixed Magnetic
• Neutral Pole: No
• Auxiliary Switch: Optional
• Shunt Trip: Optional
• Undervoltage Release: No
• Alarm Switch: Optional
• UL Standard: 489
