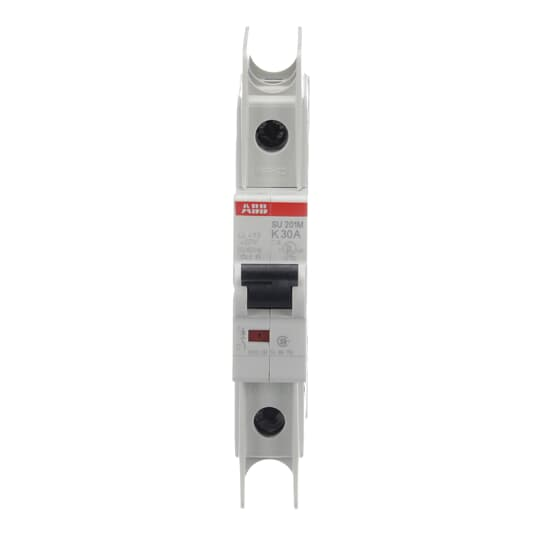

Abb SU201M-K30 Ul489 Mcb 1P K 30A

Product Description

The ABB SU201M-K30 is a miniature circuit breaker designed for branch circuit protection. Rated at 30 Amps, this 1-pole breaker has an interrupt rating of 10 kA and a K trip curve. It supports voltages up to 277/Y480 VAC and 48/96 VDC. It is DIN rail mounted and features finger-safe, multi-function terminals.

• Rated Current 30 Amps
• Interrupt Rating 10 kA
• Voltage up to 277/Y480 VAC, 48/96 VDC
• DIN Rail Mounted

Product Highlights

Miniature circuit breaker for circuit protection with approvals acc. to UL, CSA and IEC.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: SU201M-K30

Technical Specifications

• Catalog Number: SU201M-K30
• Brand: ABB
• Manufacturer: ABB
• Current: 30 Amp
• Voltage: 277/480 Volt
• Amperage: 30 Amp
• Standard: CSA 22.2 No. 5,EN 60947-2,IEC,UL 489
• Trip Type: K-Curve
• Applications: Branch Circuit Protection
• Power Rating: 3.5 W
• Mounting Type: 35 mm DIN Rail
• Terminal Type: Screw Terminals
• Conductor Size: 18-4 AWG/18-8 AWG
• Number of Poles: 1 Pole
• Interrupt Rating: 10 kAIC
• Temperature Rating: -25 to 55 degrees C
• Operating Temperature: 55 degrees C
• Environmental Conditions: 25 C at 95 - 100% Relative Humidity, 55 C at 90 - 96% Relative Humidity, 3 Pollution Degree
• Type: High Performance MCB Provides Compact Supplementary, Energy Limiting, Circuit Protection
• Width: 17.5 mm
• Height: 111 mm
• Length: 69 mm
• Characteristic: K Curve
• Current Rating: 30 A
• Series: SU200M Series
• UPC Code: 4016779930154
• Voltage Rating: 277/48 V
• Volts DC: 48
• Volts AC: 277
• Mounting: DIN Rail
• Poles: 1
• Amps: 30
• Trip Curve: K
• Product Series: SU200M
• Family Series: ABB Circuit Breakers, SU200M Series
• Max Voltage: 240 VAC, 277/480 VAC, 48 VDC, 96 VDC
• Trip Unit: Fixed Thermal / Fixed Magnetic
• Neutral Pole: No
• Screw: Screw
• Auxiliary Switch: Optional
• Shunt Trip: Optional
• Undervoltage Release: No
• Alarm Switch: Optional
• UL Standard: 489
• Approvals: CSA, UL
