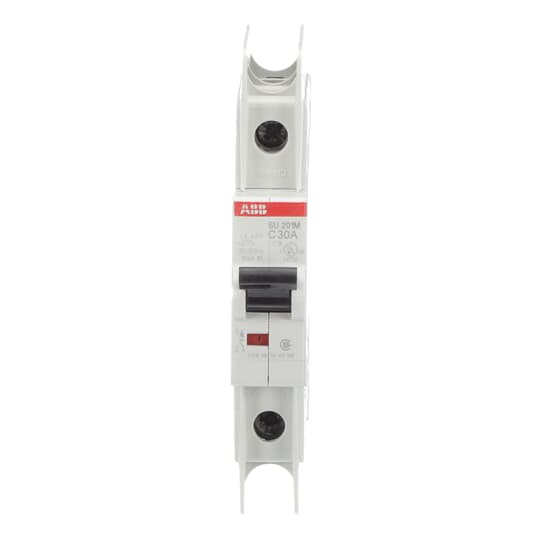

Abb SU201M-C30 UL489 MCB 1P C 30A

Product Description

The ABB SU201M-C30 is a miniature circuit breaker with a rated current of 30 Amps. This 1-pole breaker has an interrupt rating of 10 kA and a C trip curve. It is designed for voltages up to 277/Y480 VAC and 48/96 VDC and mounts on a DIN rail. It features finger-safe and multi-function terminals and complies with UL 489 and CSA 22.2 No. 5 standards.

• Rated Current 30 Amps
• Interrupt Rating 10 kA
• DIN Rail Mounted

Product Highlights

Miniature circuit breaker for branch circuit protection with approvals for UL, CSA and IEC standards.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: SU201M-C30

Technical Specifications

• Catalog Number: SU201M-C30
• Brand: ABB
• Manufacturer: ABB Low Voltage
• Current: 30 Amp
• Voltage: 277/480 Volt
• Amperage: 30 Amp
• Standard: CSA 22.2 No. 5,EN 60947-2,IEC,UL 489
• Trip Type: C-Curve
• Applications: Branch Circuit Protection
• Mounting Type: DIN Rail
• Terminal Type: Screw Terminals
• Conductor Size: 16-4 AWG
• Number of Poles: 1 Pole
• Interrupt Rating: 10 kAIC
• Temperature Rating: -25 to 55 degrees C
• Operating Temperature: 55 degrees C
• Environmental Conditions: 3 Degree of Pollution
• Type: High Performance MCB Provides Compact Supplementary, Energy Limiting, Circuit Protection
• Width: 17.5 mm
• Height: 111 mm
• Length: 69 mm
• MPN: SU201M-C30
• Voltage Rating: 277 V AC / 48 V DC
• Amperage Rating: 30 A
• Special Features: SU201M-C30 Miniature Circuit Breaker C-Char.; 10kA; 30A; 1P UL489
• Tripping Characteristic: C
• Approvals: UL 489
• Characteristic: C Curve
• Current Rating: 30 A
• Manufacturer Part Number: SU201M-C30
• Series: SU200M Series
• Wire Size: 18 to 4 AWG
• Poles: 1
• Curve: C
• Rating NEMA/IEC: UL-489
• Manufacture: ABB
• Mfr Catalog Number: SU201M-C30
• Product Category: Supplementary Protector
• Volts DC: 48
• Volts AC: 277
• Interrupt Rating DC: 10 kA
• Interrupt Rating AC: 10 kA
