Abb STG1-G Pvc Ctd Zinc Ground Hub 1/2in

Product Description

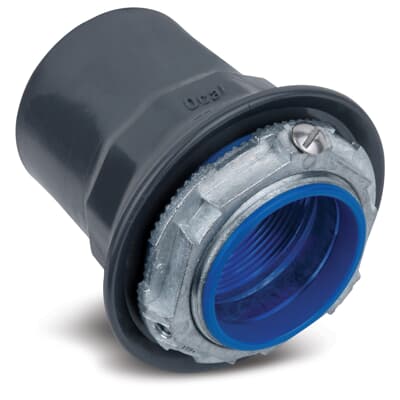

The ABB STG1-G is a PVC Coated Zinc Grounded Hub with Thermoplastic Insulated Throat, designed for positively bonding conduit to box or enclosure. It has a pipe size of 1/2 Inch/16 Metric. It features a Nitrile Rubber (Buna-N) Sealing Ring.

• Coated with a nominal .002 inch (2 mil) blue urethane on the interior, before PVC Coating is applied.
• A minimum .040 inch (40 mil) PVC Coating is bonded to the exterior.
• Hexagonal body and locknut design.

Product Highlights

The STG1-G hub ensures a secure connection with its innovative sealing ring and groove, insulated throat, and pressure sealing sleeves.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: STG1-G
• Country of Origin: US - United States

Technical Specifications

• Category: Electrical fittings
• Special Features: Hexagonal/Splined Body and Locknut Enables Fast and Easy Installation
• Application: To Positively Bond Conduit to Box or Enclosure
• Material: PVC Coated Zinc
• Temperature Rating: 105 C
• Brand Name: Ocal
• Size: 1/2 Inch/16mm
• RoHS: RoHS3 Compliant
• TSCA: TSCA Section 6(h) Compliant
• Nominal diameter: 16 mm
• Nominal size in inch: 1/2 inch
• Model: Straight
• Revolving thread: N
• Construction type: External thread
• Material housing: Other
• Surface protection: Other
• Finish: PVC Coated
• Connection Type: Threaded
• Type: Grounded
• Use With: Rigid/IMC Conduit
• Throat Type: Insulated
• Manufacturer Part Number: STG1-G
