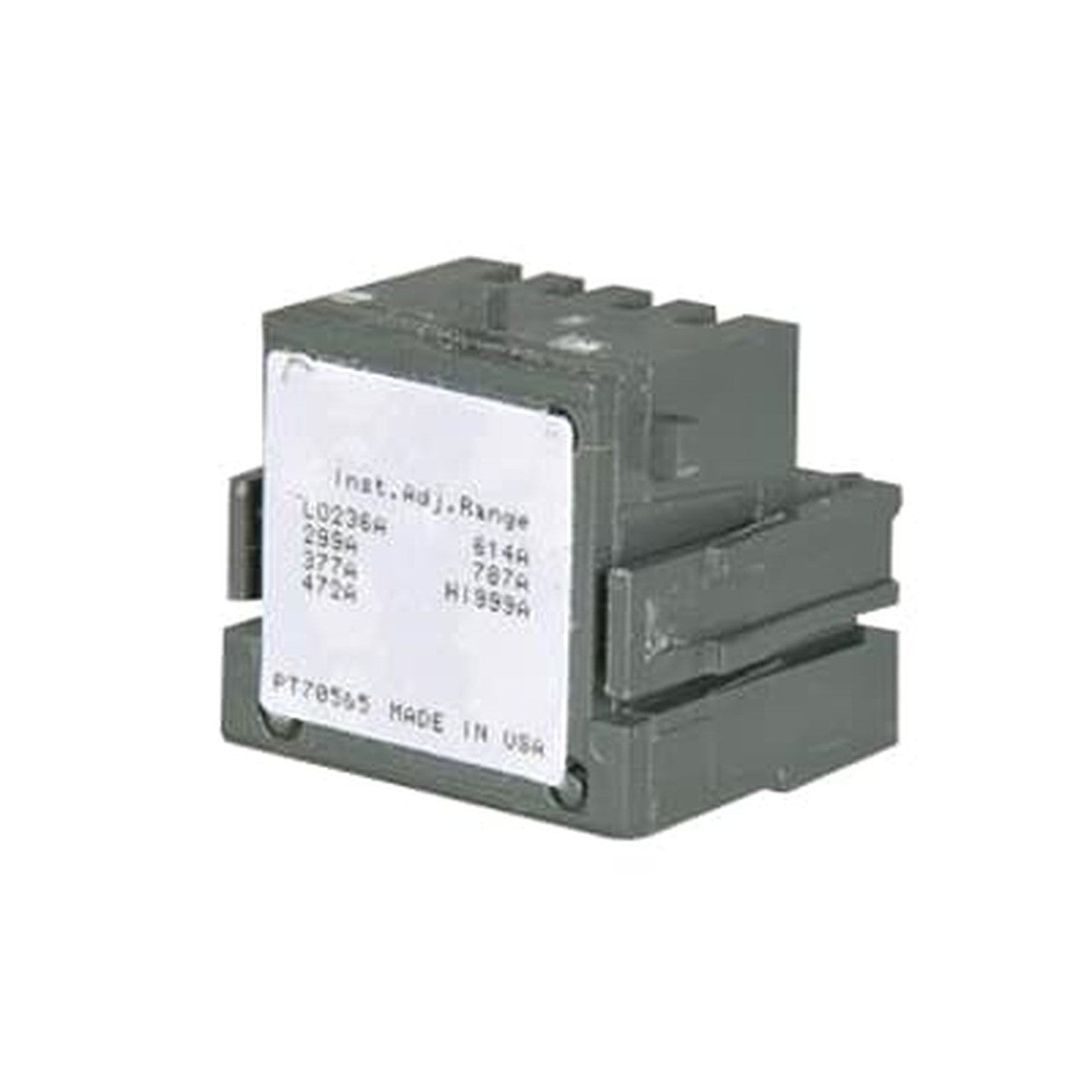

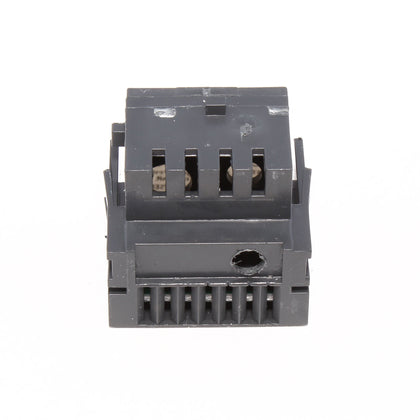

Abb SRPE100A70 se150 rating plug (std) 100/70

Product Description

The ABB SRPE100A70 SE150 Rating Plug (Std) 100/70 is an essential component for Spectra breaker systems, offering adaptability and interchangeability. It adjusts the per unit continuous current rating of a breaker, functioning similarly to an interchangeable trip unit. This rating plug fine-tunes instantaneous and short-time pick-up values and is uniquely keyed to fit a specific circuit breaker frame and sensor rating.

• Interchangeable rating plugs
• Flexibility across permissible current ratings
• UL listed

Product Highlights

Essential for Spectra breaker systems, providing adaptability and interchangeability with various GE Spectra RMS circuit breaker frames.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: SRPE100A70

Technical Specifications

• Brand: ABB Industrial Connections & Solutions
• Manufacturer Part Number: SRPE100A70
• Numeric ID: 2510416
• Primary Type: External Accessories
• Series: SRP Series
• Type: Rating Plug
• Poles: 3
• Volts AC: 480
• Amps: 70
• Family / Style: Spectra
• Mounting: Breaker
• Amperage: 70A
• Construction: E Frame
• Additional Attributes: Rating Plug
• Frame: 100A
