Abb SN-236 Two-gang Nail-on New Work Electrical Box

Product Description

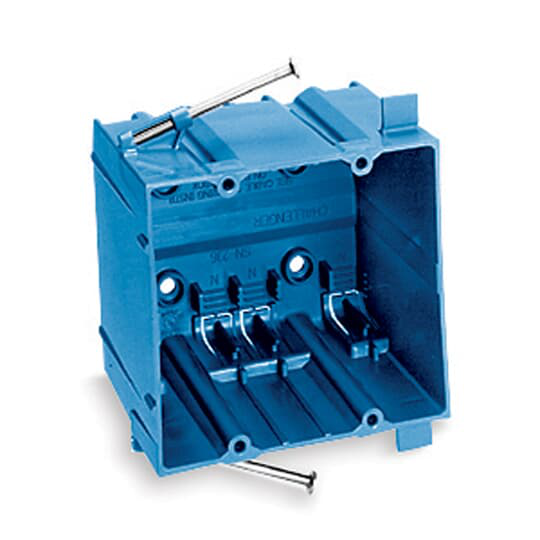

The ABB SN-236 is a two-gang nail-on new work outlet box designed for residential and light commercial electrical rough-in work. Molded from PVC, this blue device box provides 36 cubic inches of volume, giving electricians adequate fill capacity for standard switch and outlet installations. It measures 4 inches in length, 3-5/8 inches in width, and 3-1/8 inches in depth. Compound angled side nails allow fast, accurate positioning against studs during framing. The molded 3/8-inch offset wallboard tabs and fast-clamp/fast-set design reduce layout and fastening time during new construction rough-in.

The SN-236 is intended for new work installations where framing is accessible before drywall is applied. It is suited for single-family residential, multi-family, and light commercial construction where PVC electrical boxes are specified. Electricians mount the box directly to wood framing studs using the integrated angled nails, then pull conductors through the available knockouts before finishing walls. The box accommodates standard two-gang wallplates and devices.

Key Features

• 36 cubic inch interior volume supports standard NEC conductor fill calculations for two-gang installations
• PVC construction resists corrosion and is suitable for dry and damp interior locations
• Compound angled side nails provide secure, one-step attachment to wood framing studs
• Molded 3/8-inch offset wallboard tabs align box flush with finished drywall surface
• Fast-clamp and fast-set design speeds rough-in workflow in new construction
• Blue color provides easy visual identification on the job site

Compatibility

Designed as an OEM-style new work box compatible with standard two-gang switches, outlets, and wallplates used in residential and light commercial electrical installations.

Installation Notes

Installation is performed by a licensed electrician during the rough-in phase of new construction, before drywall or wall covering is applied. Drive the integrated angled nails into the face of the wood stud using a hammer, positioning the box so the front edge will sit flush with the finished wall surface using the built-in offset tabs as a guide. All wiring must comply with the current edition of the NEC, including applicable fill calculations for the 36 cubic inch volume. Do not install this box in wet or outdoor locations unless listed for such use.

Technical Specifications

• Volume: 36 cubic inches
• Length: 4 inches
• Width: 3-5/8 inches
• Depth: 3-1/8 inches
• Wallboard Tab Offset: 3/8 inches
• Material: PVC
• Color: Blue
• Mounting: Compound Angled Side Nails
• Gang: 2
• UPC: 786358800614

Standard Information

• Brand: ABB
• Manufacturer Part Number: SN-236
