Abb SELA36AT0100 SEL 3P 600V 100A

Product Description

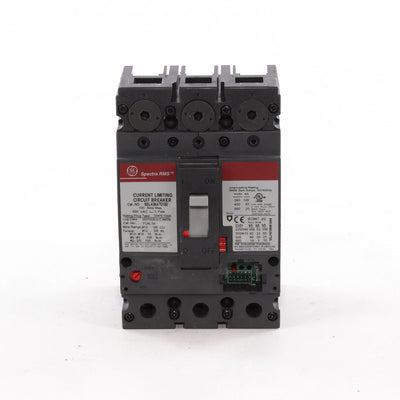

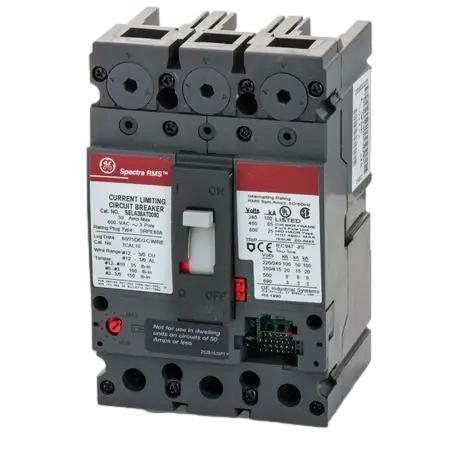

The ABB SELA36AT0100 is a Spectra RMS molded case circuit breaker with a digital, solid state, RMS sensing trip system. It features field installable, front-mounted rating plugs to establish or change the breaker ampere rating. Adjustable instantaneous with tracking short-time is standard on all frames. The trip system uses digital sampling to determine the RMS value of sinusoidal and non-sinusoidal currents.

• Digital, solid state, RMS sensing trip system
• Field installable, front-mounted rating plugs
• Adjustable instantaneous with tracking short-time

Product Highlights

Spectra RMS circuit breaker with adjustable instantaneous and digital sampling for accurate current measurement.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: SELA36AT0100

Technical Specifications

• Category: Spectra RMS™ Electronic Trip
• Product Line: Spectra RMS - Standard
• GO Schedule: ES
• Trip Style: Interchangeable
• Poles: 3
• Amperage: 100 A
• System Voltage: 600 Vac
• Frame Type: SE150
• 600 Vac Interrupting Rating: 25 KAIC
• Trip Function: LSI
• Continuous Current Rated: Standard
• Suitable for Reverse Feed: Yes
• Lugs: TCAL18
• Long Time: Fixed
• Short Time: Adjustable
• Instantaneous: Adjustable
• Current Metering: No
• Protective Relays: No
• Special Markings: HACR
• GSA Compliance: Yes
• UL File #: E11592
• CSA File#: LR40350
• Brand: Spectra RMS[Tm]
• Approval: UL, CSA
• Voltage Rating: 600 Volt
• Interrupting Rating: 100 Kiloamp At 240 Volt Ac, 65 Kiloamp At 480 Volt Ac, 25 Kiloamp At 600 Volt Ac (UL), 100 Kiloamp At 220 To 240 Volt Ac, 65 Kiloamp At 380 To 415 Volt Ac, 40 Kiloamp At 500 Volt Ac, 5 Kiloamp At 690 Volt Ac (IEC)
• Current Rating: 100 Amp
• Wire Size: 12 To 3/0 AWG (Copper/Aluminum)
• Application: Heating, Air Conditioning, Refrigeration
• Applicable Standard: IEC
• Maximum Ac Voltage Rating (V): 690 Volt
• Type: Molded Case, Electronic Solid State Trip, Current Limiting Type
• Size: 4.12 Inch Width X 3.38 Inch Depth X 6.31 Inch Height
