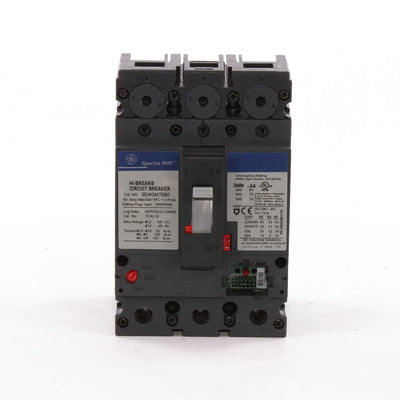

Abb SEHA36AT0060 Spectra Rms Molded Case Circuit Breakers 60A

Product Description

The ABB SEHA36AT0060 Spectra RMS Molded Case Circuit Breakers (SE150, SF250, SG600 and SK1200) feature a digital, solid state, RMS sensing trip system with field installable, front-mounted rating plugs. Adjustable instantaneous with tracking short-time is standard. The trip system uses digital sampling to determine the RMS value of sinusoidal and non-sinusoidal currents.

• Digital, solid state, RMS sensing trip system
• Adjustable instantaneous with tracking short-time
• Suitable for Reverse Feed

Product Highlights

The ABB Spectra RMS Molded Case Circuit Breakers have a digital, solid state, RMS sensing trip system.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: SEHA36AT0060
• Country of Origin: Canada

Technical Specifications

• Category: Spectra RMS Electronic Trip
• Product Line: Spectra RMS - Standard
• GO Schedule: ES
• Trip Style: Interchangeable
• Poles: 3
• Amperage: 60 A
• System Voltage: 120 Vac
• Frame Type: SE150
• 120 Vac Interrupting Rating: 65 KAIC
• 120/240 Vac Interrupting Rating: 65 KAIC
• 240 Vac Interrupting Rating: 65 KAIC
• 277 Vac Interrupting Rating: 25 KAIC
• 480 Vac Interrupting Rating: 25 KAIC
• 600 Vac Interrupting Rating: 18 KAIC
• Trip Function: LSI
• Continuous Current Rated: Standard
• Suitable for Reverse Feed: Yes
• Lugs: TCAL18
• Long Time: Fixed
• Short Time: Adjustable
• Instantaneous: Adjustable
• Current Metering: No
• Protective Relays: No
• Special Markings: HACR
• HID: GSA Compliance
• UL File #: E11592
• CSA File#: LR40350
• Brand Name: Thomas & Betts
• Sub Brand: Spectra RMS
• Item Name: Molded Case Circuit Breaker
• Interrupt Rating: 18 kA at 600 VAC/25 kA at 277 VAC/25 kA at 480 VAC/65 kA at 120 VAC/65 kA at 120/240 VAC/65 kA at 240 VAC
• Voltage Rating: 600 V
• Frame: SE150
• Trip Type: LS/I
• UPC: 783164211436
