ABB RD717 T&B 8 Ring Term Bulk

Product Description

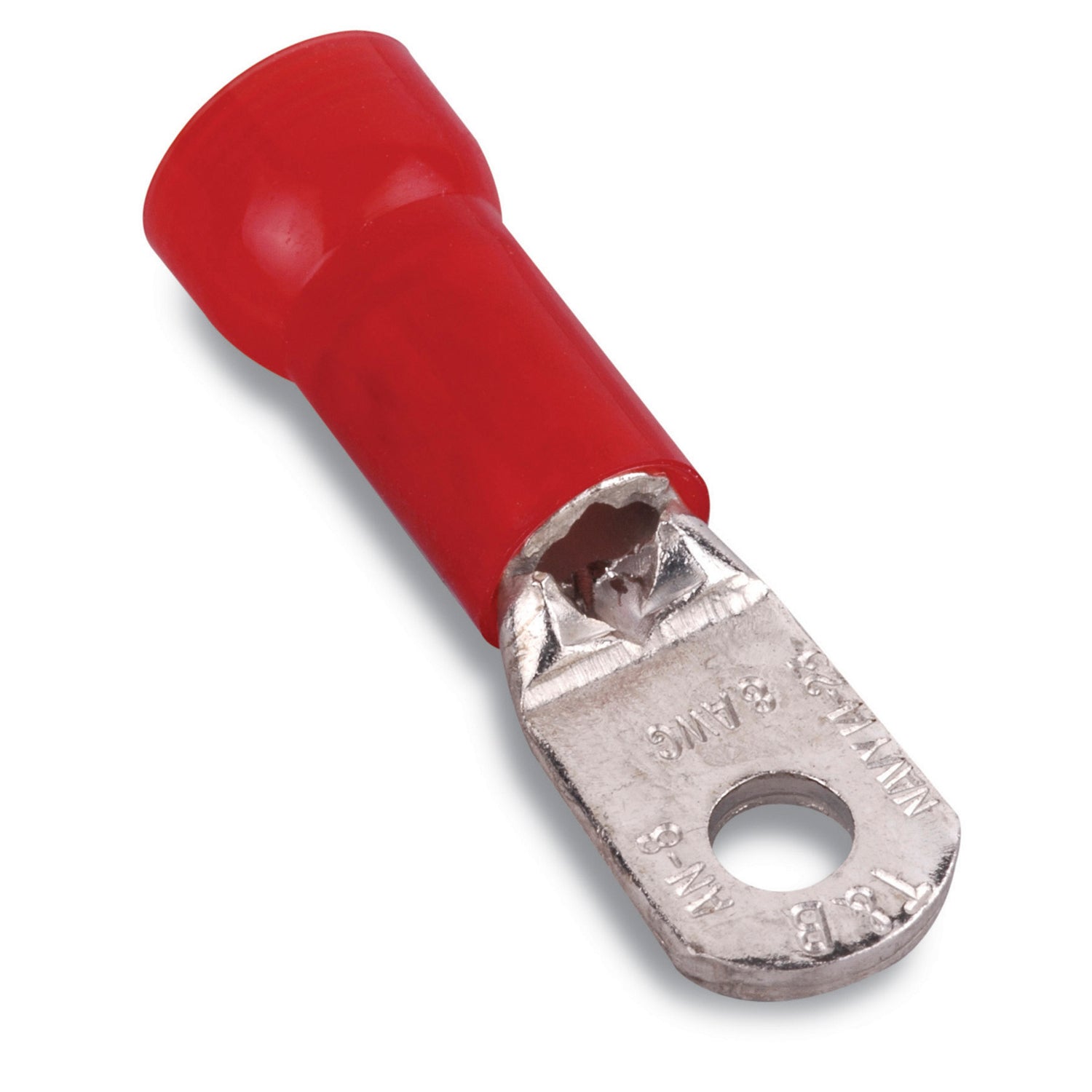

The ABB RD717 is a Sta-Kon® insulated ring terminal designed for use with eight AWG conductors. It measures one point five four inches in length and is suitable for a quarter-inch stud. The product features a brazed and overlapped seam barrel for strong connections.

• Funneled barrel entry for easy wire insertion
• Deep internal serrations enhance grip
• Constructed from copper with electro-tin plating for resistance to corrosion

Product Highlights

The ABB RD717 is ideal for electrical applications requiring reliable connections in various environments. This product supports a voltage rating of 600 VAC and features nylon insulation rated for temperatures up to one hundred five degrees Celsius.

Product Information

Standard Information

• Manufacturer: ABB - Installation Products
• Application: For ERG4007 tool applications

Technical Specifications

• Conductor Size: 8 AWG
• Stud Size: 1/4 in
• Tongue Size: 0.46 in W x 0.04 in THK
• Length: 1.54 in
• Voltage Rating: 600 VAC
• Temperature Rating: 105 deg C
• Material: Copper
• Finish: Tin Coated
