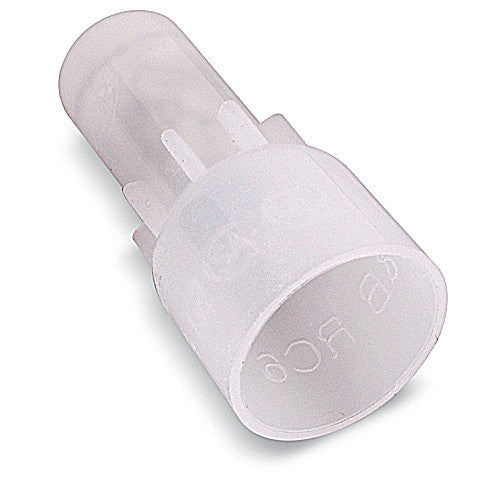

Abb rc55 Sta-Kon crimp-on wire joints

Product Description

The ABB RC55 Sta-Kon Crimp-On Wire Joints are insulated nylon wire joints designed for a minimum wire range of 4 (#18) to a maximum of 2 (#12). These joints provide a terminating point for a group of wires running in one direction. Suitable for automotive, commercial, and industrial applications.

• Insulated Nylon Wire Joints
• Minimum Wire Range 4 (#18)
• Maximum Wire Range 2 (#12)

Product Highlights

The RC55 wire joints are UL and CSA certified, with a voltage rating of 600V and are constructed from steel with nylon insulation.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: RC55
• Country of Origin: US - United States

Technical Specifications

• Insulation Type: Insulated Nylon
• Terminal Series: RC
• Color: White
• Wire Range: 4 (#18) - 2 (#12)
• Voltage: 600V
• Construction: Steel
• Insulation: Nylon
• Wire Type: CU
• Connector Type: Crimp-On Pigtail
• A (inches): .43
• B (inches): .95
• Brand: Sta-Kon by ABB
• Manufacturer Part Number: RC55
• Primary Type: Splice
• Series: RC Series
• Termination: Crimp
• Type: Wire Joint
• UPC Code: 786210804507
• Wire Size: 12-18 AWG
• Standard: UL E9809
• Application: Provides terminating point for a group of wires running in one direction
• Use With: Crimping Terminals; Disconnects; Splices
• Rated Voltage: 600V
• Color Family: White
• Product Range: Sta-Kan RC Series
• Wire Size AWG Min: 18AWG
• Wire Size AWG Max: 12AWG
• Insulator Colour: White
• Insulator Material: Nylon (Polyamide)
• Model: RC55
• Country of Origin: United States
