Product Description

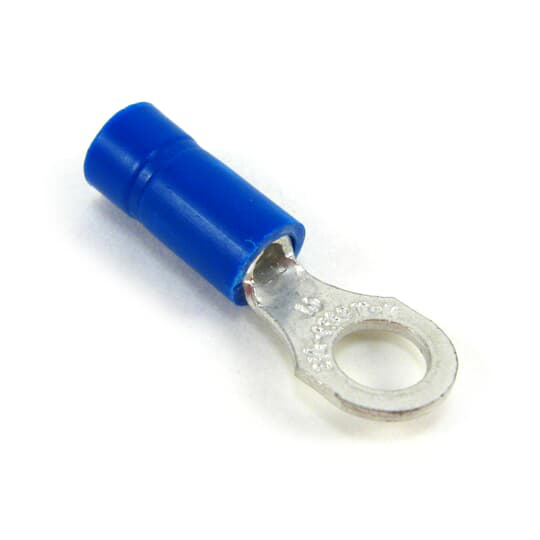

ABB RB877 is a vinyl-insulated ring terminal designed for wire ranges of 18 to 14 AWG. This product features a length of 0.97 inches and a width of 0.31 inches. It supports a maximum insulation diameter of 0.17 inches and is suitable for a #10 bolt. The terminals come tin-plated for corrosion resistance and are packaged in a box containing one thousand units.
- Compatible with wire sizes from #18 to #14 AWG
- Self-insulated with a PVC sleeve for added protection
- Brazed seam barrel for improved pull-out strength
Product Highlights
These ring terminals are ideal for a variety of electrical applications due to their durability and reliability.
Product Information
Standard Information
-
Brand: ABB
-
Manufacturer: Thomas & Betts Co
Technical Specifications
-
Wire Size: 18-14 AWG
-
Stud Size: #10
-
Length: 0.97 inches
-
Width: 0.31 inches
-
Maximum Insulation Diameter: 0.17 inches
-
Voltage Rating: 600 VAC
-
Temperature Rating: 105 degrees C
-
Material: Copper, tin-coated
-
Finish: Electro Tin Plated
