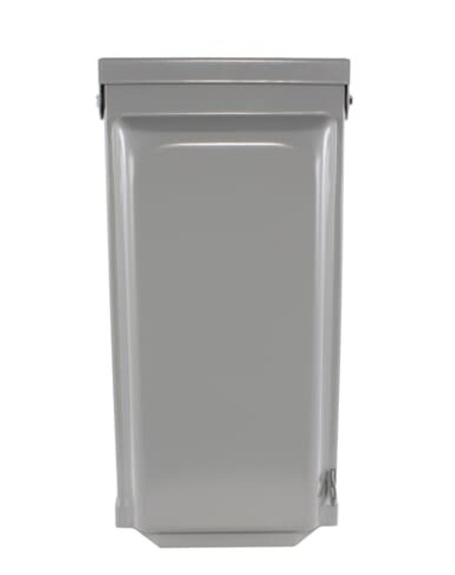

Abb pm6020c Load Center 200A Main Breaker 60 Circuit

Product Description

The ABB pm6020c is a 200-amp main breaker load center rated for 60 circuits, designed for residential and light commercial electrical distribution applications. It accepts a plug-on neutral configuration and provides a central point for distributing branch circuit power throughout a structure. Licensed electricians install this panel as a service entrance or sub-panel upgrade where expanded circuit capacity is required. The integrated main breaker provides overcurrent protection for the entire panel without a separate disconnect.

The pm6020c is suited for residential new construction and renovation projects requiring a full 60-circuit capacity load center. It is typically installed as a main service panel fed directly from the utility meter or as a large sub-panel in commercial tenant spaces. The plug-on neutral design speeds branch circuit installation by eliminating separate neutral pigtail connections at each breaker position.

Key Features

• 200-amp main breaker provides whole-panel overcurrent protection
• 60-circuit capacity supports large residential or light commercial loads
• Main breaker configuration allows use as a service entrance panel without a separate disconnect
• Plug-on neutral (PON) design simplifies branch circuit breaker installation

Compatibility

Designed as an OEM-style load center accepting standard plug-on neutral branch circuit breakers compatible with the ABB pm6020c panel family.

Installation Notes

Installation must be performed by a licensed electrician in accordance with NFPA 70 (NEC) and all applicable local codes. Shut off utility power at the meter before making any service entrance connections. Verify that incoming service conductors are sized appropriately for 200-amp service before landing on the main lugs. Do not energize the panel until all covers are secured and all unused knockout openings are properly closed.
