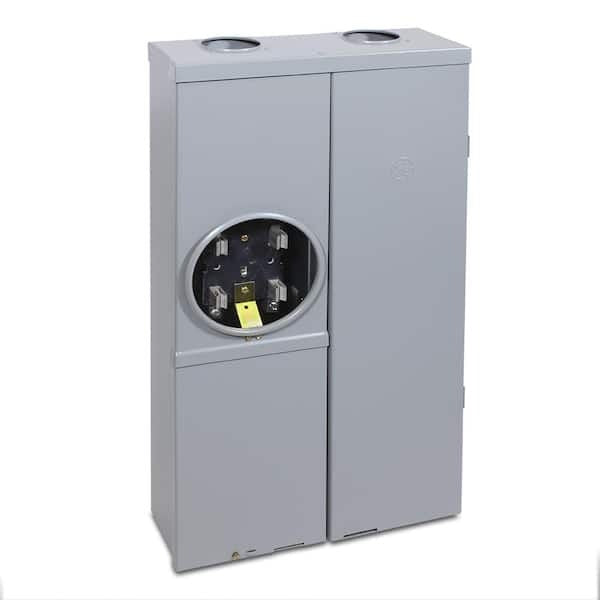

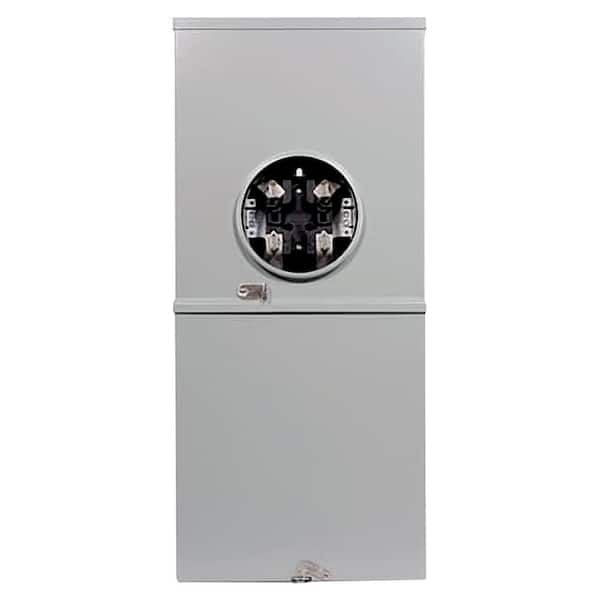

Abb PAMS820TRLNCS Meter Socket & Load Center 200-Amp 8 Space/16 Circuit

Product Description

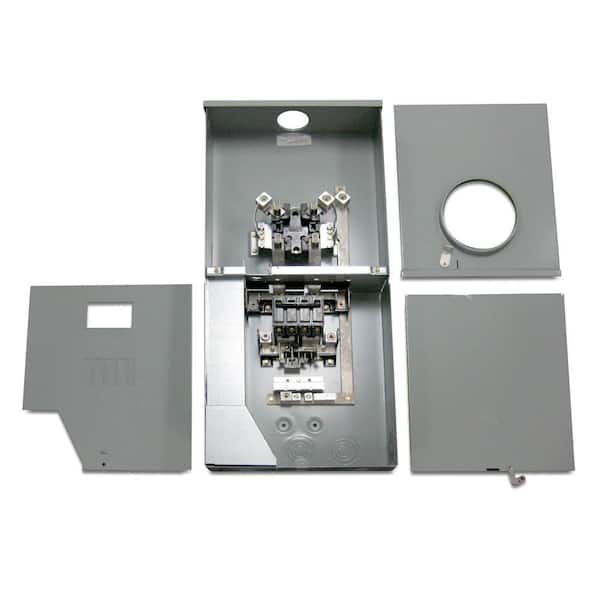

The ABB PAMS820TRLNCS is a 200 Amp meter socket and load center with 8 spaces and 16 circuits. Designed for fast and efficient installation, it features a top/bottom design for surface installs accommodating overhead and underground feeds. It is made with galvanized metal enclosures resisting rust and is UL listed and outdoor NEMA 3R certified.

• Outdoor NEMA 3R enclosure (surface)
• Plug-On Neutral designed for quick and easy installation
• 200 Amp main breaker installed

Product Highlights

This meter socket and load center is compatible with ABB and GE THQL, THHQL Standard, Pigtail and PON AFCI, GFCI and DFCI breakers.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: PAMS820TRLNCS

Technical Specifications

• Maximum Amperage (A): 200 A
• Compatible with: ABB and GE THQL, THHQL Standard, Pigtail and PON AFCI, GFCI and DFCI breakers
• Ground Bar: TGK24 Ground Bar included
• Meter socket design: Ring style meter socket design
• Connection: Single Gang, 4 Jaw connection
• Bypass: No Bypass
• Electrical: Single Phase, 3 wire, 120/240 VAC with max 22kAIC
• Mount: Top/Bottom Style, Surface mount, Overhead or Underground Install
• Mounting Style: Surface
• Number of Gangs: 1
• Color: Gray
• Current Rating: 200A
• Number of Phases: 1
• Material: Metal
• MPN: PAMS820TRLNCS
• Orientation: Vertical
• Number of Spaces: 8
• Suitable For: Exterior
• Brand: ABB
• Type: Meter Socket/Main Breaker Load Center
• Number of Knockouts: 1-5
• Number in Pack: 1
• Item Height: 34 in
• Model: PAMS820TRLNCS
• Features: Meter Socket, Plug-On Neutral, 4 Jaw connection
• Number of Circuits: 16
• Box Shape: Rectangular
• Application: Electrical Wiring
• Room: outside
• Item Width: 15
