Abb OS60gj12 Fuse 3P 60A J-Type 600V

Product Description

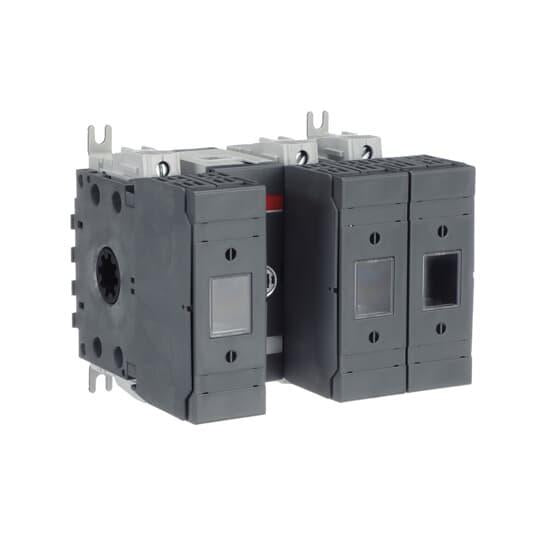

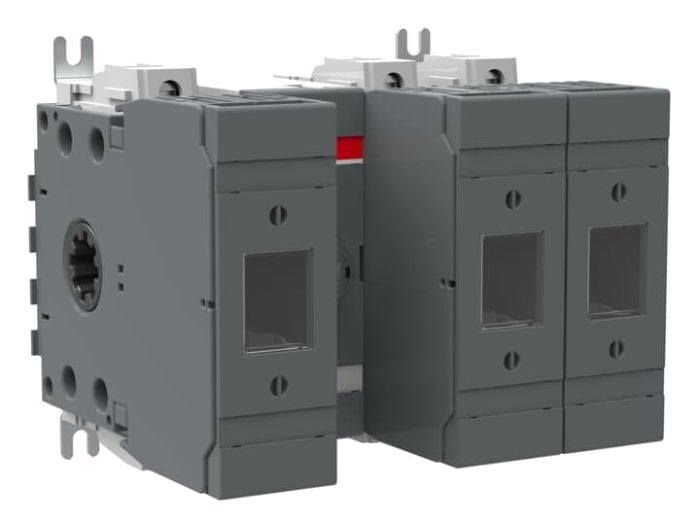

The ABB OS60GJ12 is a 3-pole, 60A disconnect switch designed for J-type fuses, operating at 600V. It is suitable for motor disconnects or industrial control panel disconnects on service entrance equipment, panelboards, switchboards, industrial control equipment and motor control centers. Includes protected tunnel terminal.

• Fusible open disconnect switch with panel mounting.
• Features a thru-door operator type.
• Compatible with Class J fuses.

Product Highlights

This ABB disconnect switch offers reliable performance and safety features for industrial applications, including a quick make, quick brake mechanism and clear position indication.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: OS60GJ12

Technical Specifications

• Manufacturer Part Number: OS60GJ12
• Manufacturer: ABB
• Product Series: OS60
• Family Series: ABB Disconnect Switches, OS60 Series
• Description: Switch Fuses,Front Operated,3-pole,12 Between the Poles,Class J,60 A,Handle and shaft not included
• Poles: 3
• Current Rating: 60 A
• AC Voltage: 600 VAC
• DC Voltage: 250 VDC
• Operator Type: Thru-Door
• Mounting: Panel
• Fusible: Yes
• Class: J
• Approvals: CSA, UL
• Voltage: 600 VAC
• Amperage: 60 A
• Horsepower: 50 hp
• Short Circuit: 200 kA
• Terminal: Screw Terminal
• Temperature: 40 deg C
