ABB OS200J03 Disconnect Switch 200 A

Product Description

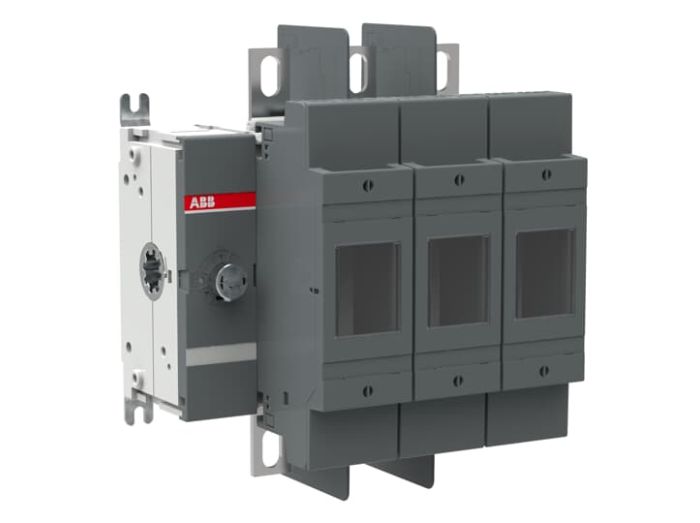

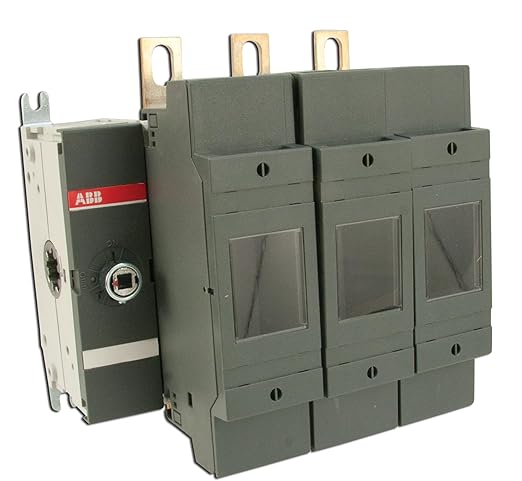

The ABB OS200J03 is a disconnect switch rated for 200 amps and 600 volts AC. It is designed for use with J type fuses. This switch is part of the POWERLINE series and provides a quick-make/quick-break mechanism. It ensures full isolation of fuses when in the OFF position, enhancing safety. Note that the handle and shaft are sold separately and the unit is suitable for panel mounting.

• International fuse clip options are available.
• Fuses are completely isolated in the OFF position.
• Meets UL/CSA and IEC approval ratings.

Product Highlights

This disconnect switch is compact and offers high interrupting capacity and long electrical life, making it suitable for various industrial applications.

Product Information

Standard Information

• Manufacturer: ABB
• Product Series: POWERLINE

Technical Specifications

• Manufacturer Part Number: OS200J03
• Poles: 3
• Current Rating: 200 A
• AC Voltage: 600 VAC
• Operator Type: Thru-Door
• Mounting: Panel
• Fusible: Yes
• Class: J
• Operation Mode: Manual
• Connector Type: Screw Terminal
• Terminal: Screw
• International Protection Rating: IP54
• Specification Met: CSA, UL
