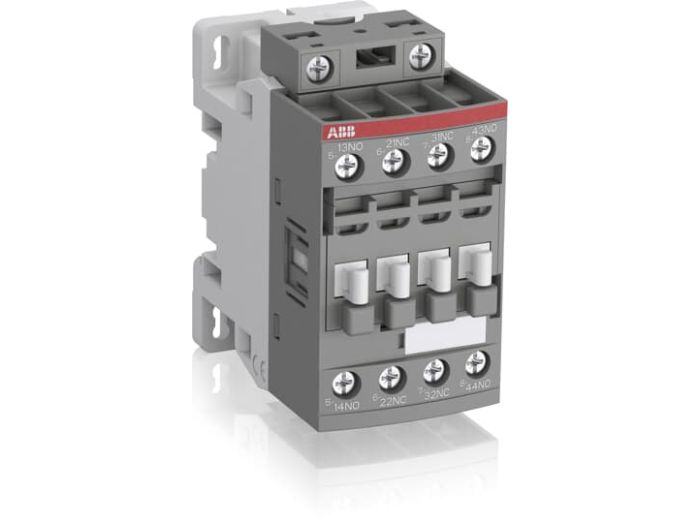

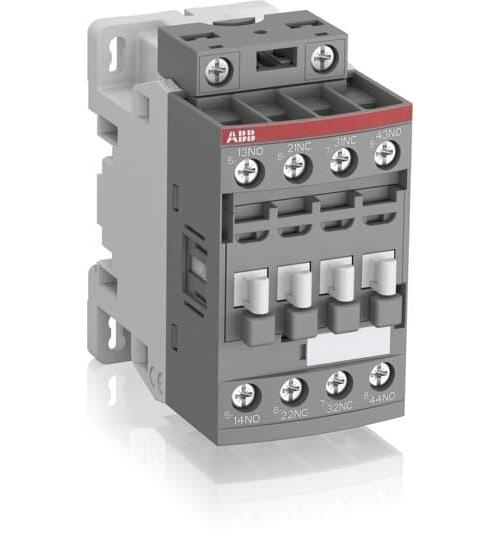

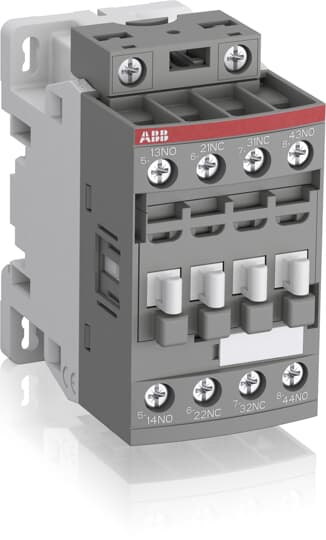

Abb NFZ31E-21 Relay 24-60V5

Product Description

The ABB NFZ31E-21 contactor relays are used for switching auxiliary and control circuits. These relays include an electronic coil interface accepting a wide control voltage. They can manage large control voltage variations and withstand short voltage dips and sags. Accessories are also available.

• Mechanically linked auxiliary contact elements
• Built-in surge suppression
• Direct control by PLC-output

Product Highlights

The ABB NFZ31E-21 contactor relays are ideal for controlling 3-phase motors and generally for controlling power circuits.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: NFZ31E-21

Technical Specifications

• IGCC: 4755
• Type: Contactor
• Vendor: 316400
• Standard: RoHs; CSA; cUL; CE; GOST
• Application: Mainly used for controlling 3-phase motors and generally for controlling power c
• Family group: DISTRIBUTION EQUIPMENT
• Manufacturer: ABB
• Terminal Type: Screw Terminals
• Special Features: NFZ contactor relays are used for switching auxiliary and control circuits. NFZ
• WES Product code: 2425450475
• Rated Control Circuit Voltage: 50 Hz /60 Hz 24 ... 60 V / DC Operation 20 ... 60 V
• Manufacturer Part Number: NFZ31E-21
• Product Series: NFZ
• Family Series: ABB Control Relays, NFZ Series
• Description: NFZ contactor relays are used for switching auxiliary and control circuits. NFZ contactor relays include an electronic coil interface accepting a wide control voltage Uc min. ... Uc max. Only four coils cover control voltages between 24...250 V
• Nominal Voltage: 24 VAC, 24 VDC, 48 VAC, 48 VDC
• Voltage: 20-60 VDC, 24-60 VAC
• Number of Poles: 4
• Contact Configuration: 3NO, 1NC
• Thermal Current Rating: 16 A
• Termination: Screw
• Mounting: DIN Rail, Screw
• Approvals: CCC, CE, GOST, UL
• Net Weight: 0.6831 lbs
• Gross Weight: 0.71 lbs
• Coil Voltage: 24 to 60 V AC/20 to 60 V DC
• Series: NFZ
• Mounting type: Rail
• UNSPSC: 39121529
• UNSPSC Code: 39120000
• Contact Current Rating: 6 A
• Control Voltage: 24 V
