Abb NC041 Connector 1-1/4 Inch

Product Description

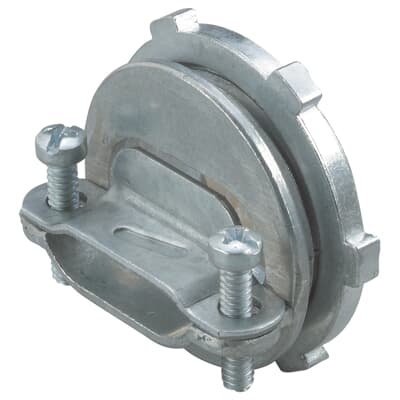

The ABB NC041 is a non-watertight clamp-type connector with a conduit size of 1-1/4 inch. Designed for use with non-metallic sheathed cable, it features a clamping range of 0.27 inch to 0.75 inch. Constructed from die-cast zinc, this connector ensures durability and reliable performance. It joins 0.27 to 0.75 inch service entrance cable to 1-1/4 inch enclosure KO.

• Conduit size of 1-1/4 inch
• Clamping range: 0.27 inch - 0.75 inch
• Constructed from die-cast zinc

Product Highlights

The ABB NC041 connector is ideal for connecting non-metallic sheathed cables in various electrical applications, providing a secure and non-watertight connection.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: NC041
• Country of Origin: MX - Mexico

Technical Specifications

• Category: Electrical fittings
• Application: For use with non-metallic sheathed cable
• Material: Zinc Die Cast
• Brand Name: Steel City
• Standard: UL e15170
• Size: 1-1/4
• RoHS: RoHS3 Compliant
• REACH: REACH 247 Compliant
• TSCA: TSCA Section 6(h) Compliant
• Nominal size in inch: 1 1/4 inch
• Model: Straight
• Revolving thread: N
• Construction type: External thread
• Connection type screw connection to housing: Thread
• One-piece: Y
• Material housing: Zinc die-cast
• Surface protection: Untreated
• Approved in combination with protective conduit DIN EN 61386-23: N
• Approved in combination with protective conduit FI: N
• Brand: Steel City by ABB
• Family Name: Steel City Diecast Fittings
• Manufacturer Part Number: NC041
• Connection Type: Clamp-Type
• Type: Non-Watertight
• Use With: Service Entrance Cable
