Product Description

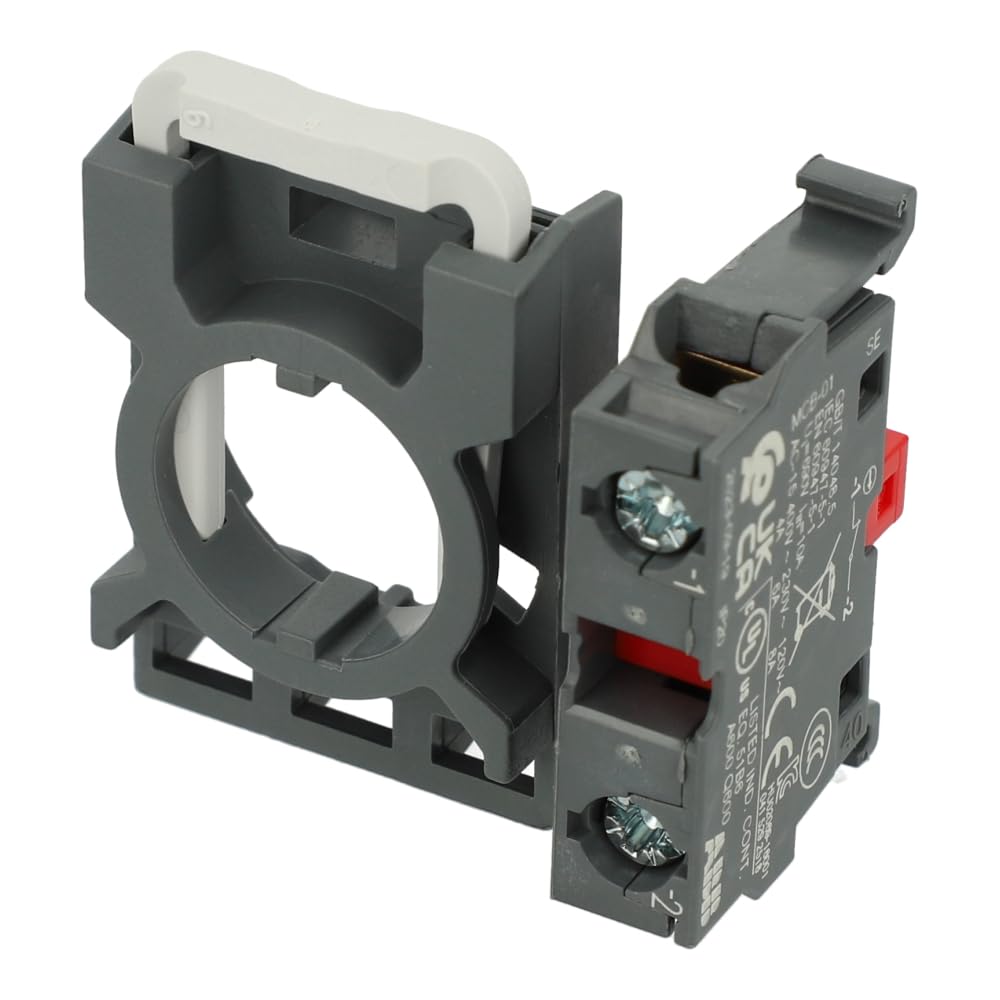

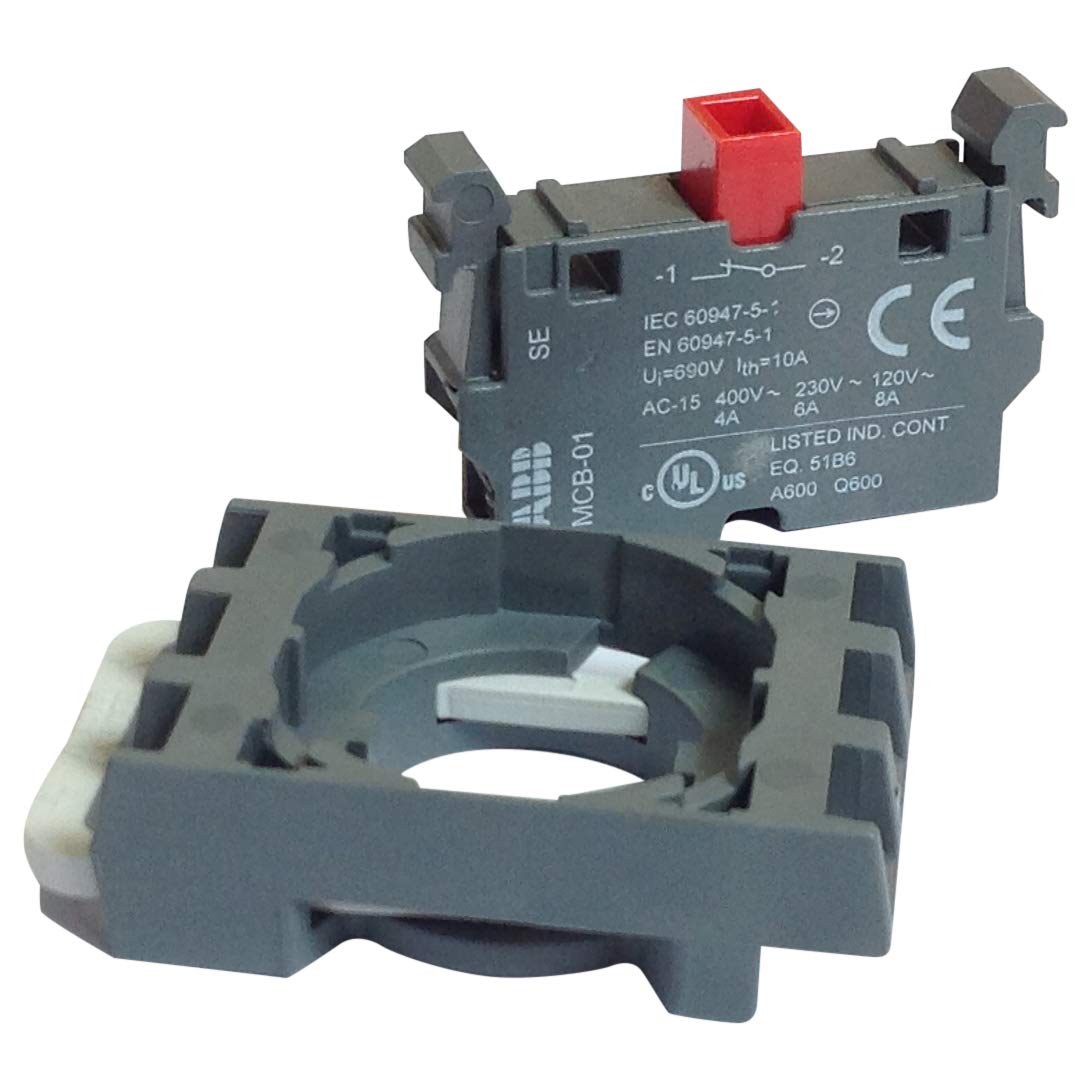

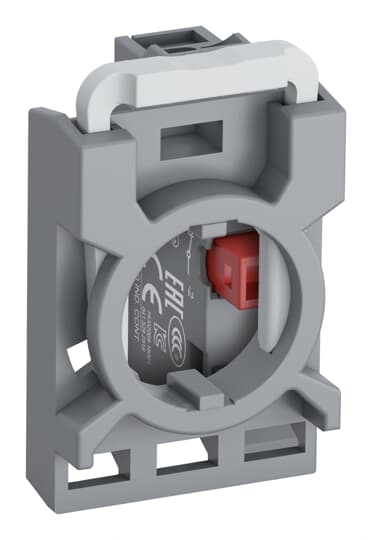

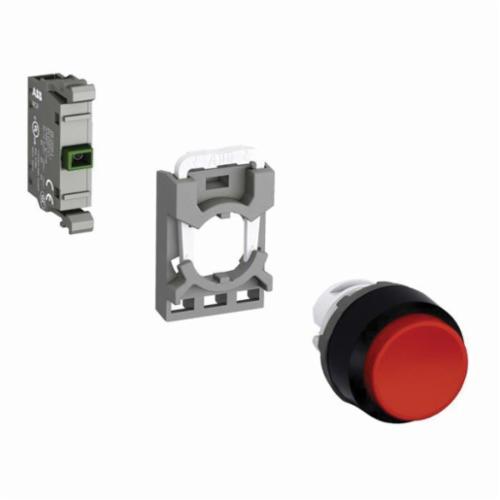

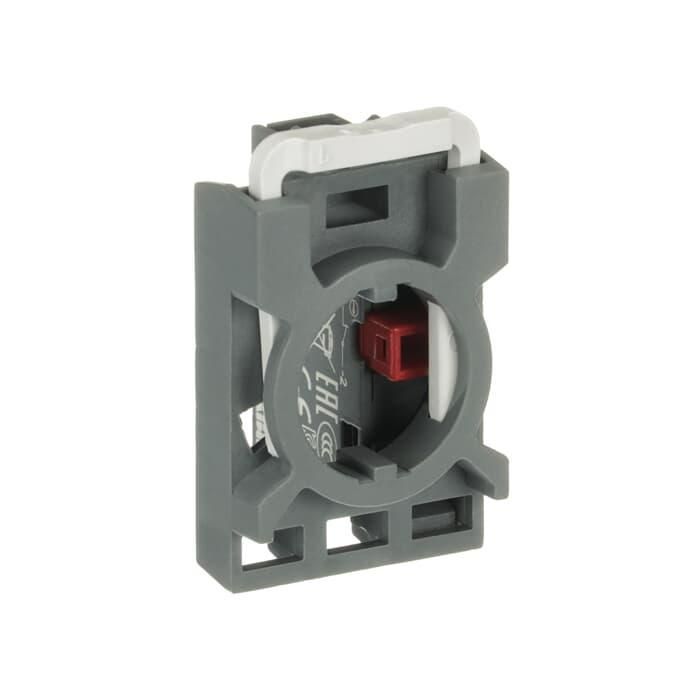

The ABB MCBH-01 is a modular contact block with a holder designed for front mounting and non-illuminated operators. It features a snap-on design for quick installation. The contact block holder has a rear mounting with a quick-release locking mechanism. It is suitable for use with pilot devices.
- Includes holder
- Snap-on feature reduces installation time
- Contact block holder features rear mounting with quick-release locking mechanism for high security
Product Highlights
Modular contact block with holder for front mounting and quick installation. Designed for use with non-illuminated operators.
Product Information
Standard Information
-
Brand: ABB
-
Manufacturer Part Number: MCBH-01
-
Country of Origin: Unknown
Technical Specifications
-
Contact Configuration: 1 NC
-
Size: 22
-
Frequency Rating: 50/60 Hz
-
Illumination: Non-Illuminated
-
Endurance (Mechanical): 10 Million Cycles
-
Enclosure: IP20
-
Amperage Rating: 6 A At 220/240 V AC, 8 A At 24/127 V AC, 1.At 125 V DC, 5 A At 24 V DC
-
Type: Electrical control modules
-
Brand: ABB
-
Amperage: 6 Amp at 230 VAC, 1.1 Amp at 125 VDC, 5 Amp at 24 VDC
-
Used With: MP1-MP4, MPD1-MPD16, MPM1-MPM2, KP6, MPET3, MPEP3, MPEP3, MPET4, MPEP4, MPEK4, MPMT3, MPMT4, MPMP3, MPMP4, M2SS1-M2SS6, M3SS1-M3SS8, M3SSC1-M3SSC8, M2SSK1-M2SSK3, M3SSK1-M3SSK3, MTS1-MTS3, MJS1-MJS12 Modular Joystick
-
Applications: For Use with Pilot Devices
-
Mounting Type: Front
-
Terminal Type: Screw Clamp
-
Number of Poles: 1 Pole
-
Manufacturer: ABB
-
Model / MPN: MCBH-01
-
Product Group: BISS
-
Product Type: ELECTRONIC_COMPONENT
-
Standard: RoHs; CSA; cUL; CE; GOST
-
Application: Mainly used for controlling 3-phase motors and generally for controlling power c
-
Special Features: Modular contact block with holder
-
Contact Form: 1 NC
-
Current Rating: 6 A
-
Primary Type: Contact Block and Holder
-
Termination: screw
-
Voltage Rating: 120 V
-
Block Material: Polycarbonate
-
Contact Rating: 6 A at 230 VAC, 5 A at 24 VDC, 1.1 A at 125 VDC
-
Contacts: 1
-
Enclosure Type: IP20
-
NEMA Rating: NEMA 1/3R/4/4X/12/13
-
Operator Type: Pushbutton/Selector Switch
-
Series: MCBH
