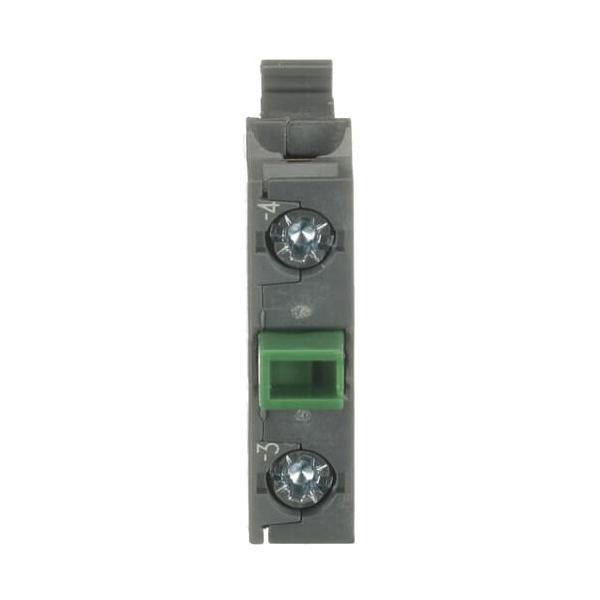

Abb mcb-10b Contact Block 22MM Rear Mount 1 N/o

Product Description

The ABB mcb-10b is a modular, non-illuminated contact block designed for use with 22MM pushbutton and selector switch assemblies in industrial control applications. It provides a single normally open (1 N/O) contact rated at 5/6 amps and connects via screw terminals for a secure, reliable electrical connection. Rated IP20 for protection against solid objects, this block mounts to the rear of compatible operator devices. The temperature rating spans -25 to 70 degrees C, making it suitable for standard panel and machine control environments. Licensed electricians and control panel builders are the typical installers.

The mcb-10b fits into 22MM control station and panel-mount assemblies where modular contact blocks are stacked or attached to operator devices such as pushbuttons and selector switches. It is well suited for light industrial, commercial, and machine tool control panels where a rear-mount configuration is required. Its compact dimensions allow dense panel layouts without sacrificing circuit function or access to the screw terminal connections.

Key Features

• Single normally open (1 N/O) contact configuration for standard control circuit use
• 5/6 amp contact rating suitable for low-current control circuits
• Screw terminal connection for solid, vibration-resistant wiring
• Rear-mount design compatible with 22MM operator assemblies
• IP20 enclosure rating provides protection against solid object ingress
• Operating temperature range of -25 to 70 degrees C covers most indoor industrial environments

Compatibility

Designed as a rear-mount modular contact block for use with 22MM pushbutton and selector switch operator assemblies in the ABB MCB Series.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC requirements and local codes. De-energize the control panel and verify zero voltage with a meter before attaching or removing any contact block. Screw terminals should be tightened to the tool specification called out in the panel assembly documentation. Do not exceed the rated contact current or operating temperature range.
