Abb ipc5041 insulation piercing connector 80/pack

Product Description

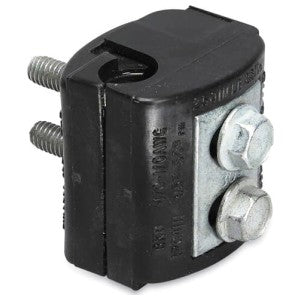

The ABB IPC5041 Blackburn® insulation piercing connector is for aluminum and copper conductors. This Type IPC connector from the IPC series performs as a splice or tap for non-tension applications up to 600 VAC. It eliminates the need for conductor insulation stripping and is self-insulated for hot line applications.

• Eliminates need for conductor insulation stripping
• Self-insulated for hot line applications
• No taping required after installation

Product Highlights

The ABB IPC5041 connector is suitable for insulated conductors only and features one mounting hole.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: IPC5041
• Country of Origin: Mexico

Technical Specifications

• Manufacturer: ABB - Installation Products
• Conductor Size: 4 to 4/0 AWG
• Conductor Type: Aluminum/Copper
• Type: Type IPC
• Series: IPC
• Voltage Rating: 600 VAC
• Specifications: 4 to 4/0 AWG, 90 to 25 sq-mm Tap/Secondary Conductor
• Temperature Rating: 90 deg C
• Finish: TiN Coated
• Color: Black
• ECCN: EAR99
• Standard: UL E9809
• Use With: Aluminum Conductors, Copper Conductors
• Rated Voltage: 600V
• Color Family: Black
• Brand: Blackburn by ABB
• Family Name: Blackburn Mechanical
• Manufacturer Part Number: IPC5041
• Numeric ID: 2510411
• UPC Code: 783786331130
