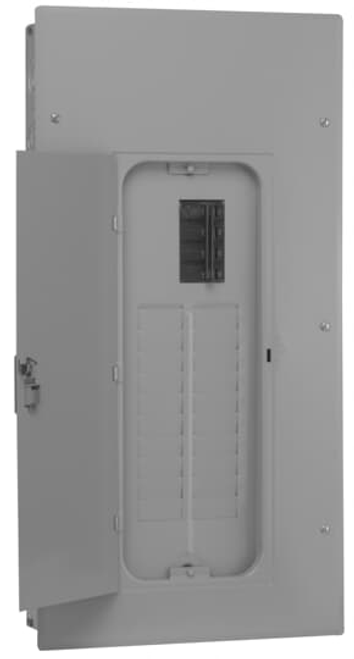

ABB ELECTRIFICATION TSMR1212CSCU Meter Socket Load Center

Product Description

The ABB ELECTRIFICATION TSMR1212CSCU is designed for residential applications as a reliable meter socket load center. This model features spaces for twelve 1-inch breakers and is rated for a main ampacity of 125 amps. Constructed for durability, it includes an outdoor-suitable surface enclosure and a copper bus. The load center supports a three-wire configuration and incorporates a horn bypass for added functionality.

• Ringless main breaker meter socket
• Designed to hold twelve 1-inch breakers
• UL listed for safety

Product Highlights

This meter socket is ideal for residential electrical systems, ensuring safe and efficient power distribution.

Product Information

Standard Information

• Brand: ABB ELECTRIFICATION
• UPC: 783164198850

Technical Specifications

• Amperage Rating: 125 A
• Enclosure: Outdoor
• Interrupt Rating: 22
• Voltage: 120/240 VAC
• Phase: 1
• Wiring Configuration: 3-Wire
• Standard: UL
• Mounting Type: Surface
• Enclosure Type: NEMA 3R
• Feed Type: Overhead/Underground
• Wire Size: 6 AWG to 350 kcmil
• Dimensions: 14-9/16 in W x 6-3/16 in D x 40-1/2 in H
• Includes: Removable Closing Cap
