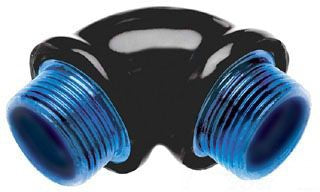

Abb EL196-G Pvc Coated Conduit Elbow 90 Degree

Product Description

The ABB EL196-G is a PVC-coated rigid metal conduit elbow with a male/female configuration and a 90-degree bend angle. Designed for use in electrical raceway systems, it provides a protected directional change in conduit runs where corrosion resistance is required. The PVC coating shields the underlying metal body from moisture, chemicals, and physical abrasion, making it appropriate for wet, outdoor, or industrial environments. Licensed electricians and electrical contractors install this fitting as part of compliant conduit systems in commercial and industrial applications.

This elbow is suited for applications where rigid metal conduit must be routed around corners while maintaining environmental protection across the full raceway assembly. Typical install scenarios include exposed runs in industrial plants, outdoor electrical enclosures, wastewater facilities, and similar corrosive or wet-location environments. The male/female end configuration allows direct connection into standard rigid conduit couplings and bodies without additional adapters in most configurations.

Key Features

• PVC coating provides corrosion and abrasion resistance for wet and industrial locations
• 90-degree bend angle for directional changes in rigid conduit runs
• Male/female end configuration for direct integration into standard rigid conduit systems
• Compact package footprint at 11.370 x 7.120 x 6.750 inches
• Lightweight construction at 0.360 pounds

Compatibility

Designed as an OEM-style replacement and standard fitting for PVC-coated rigid metal conduit systems in wet, outdoor, and corrosive-location installations.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC requirements for rigid metal conduit systems. De-energize all circuits in the affected raceway before beginning work. Inspect PVC coating on mating conduit sections for damage before assembly to maintain full corrosion protection across the run. Do not use pipe wrenches or tools that may cut or compress the PVC coating during tightening.

Technical Specifications

• Bend Angle: 90 degrees
• End Configuration: Male/Female
• Coating: PVC
• Package Dimensions (L x W x H): 11.370 x 7.120 x 6.750 inches
• Weight: 0.360 pounds
• UPC: 70450836916

Standard Information

• Brand: ABB
• Manufacturer Part Number: EL196-G
