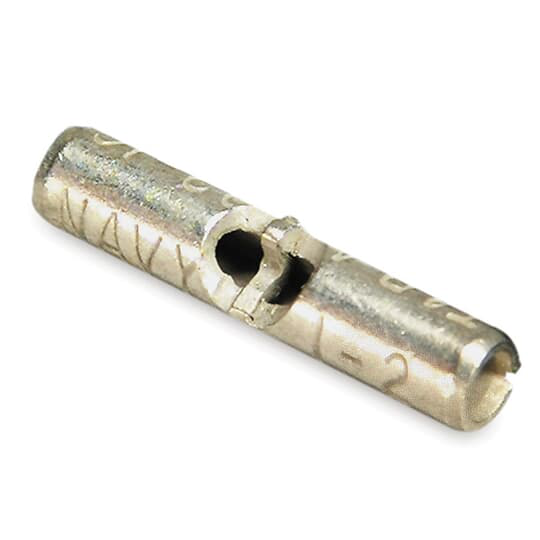

ABB EE2 Thomas & Betts EE2 1.12 Inch Length 6-5 AWG Wire Range Non-Insulated Butt Splice

Product Description

The ABB EE2 is a non-insulated butt splice designed for use with 6 to 5 AWG wire. With a length of one point twelve inches, this product is ideal for electrical connections that require a reliable splice. This connector is made of copper and comes with a tin finish for enhanced durability.

• Wire range: 6 AWG to 5 AWG
• Material: Copper with electro-tin plating
• Pack quantity: 200

Product Highlights

This butt splice is suitable for parallel connections and can handle a voltage of up to six hundred volts. The connector is designed for applications that require a secure and long-lasting connection.

Product Information

Standard Information

• Brand: ABB
• Type: Short Sleeve

Technical Specifications

• Material: Copper
• Finish: Electro-Tin Plated
• Connection Type: Parallel
• Insulation Type: Non-Insulated
• Temperature Rating: 150 degrees C
• Overall Length: 1.12 inches
• Voltage: 600 Volt
• Standard: UL E9809
