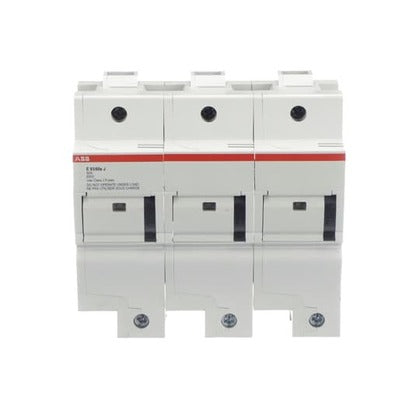

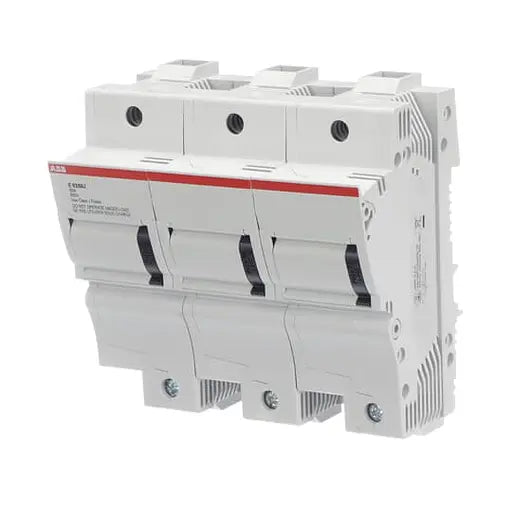

Abb E93/60J Fuseholder, 3-P, 60A Max, Class J

Product Description

The ABB E93/60J is a fuseholder designed for overcurrent and short circuit protection, specifically for Class J fuses. Suitable for industrial installation, motors and transformers protection, heating systems, and control circuits. It comes in voltage and current ratings up to 600 V and 60 A, respectively, with a breaking capacity reaching 200 kA.

• UL listed according to 4248‑8
• Can be equipped only with Class J fuses
• Rated voltage 600 V AC

Product Highlights

The ABB E93/60J fuseholder is ideal for industrial applications, providing overcurrent and short circuit protection with Class J fuses. It is UL listed and has a rated voltage of 600V AC.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: E93/60J

Technical Specifications

• Manufacturer Part Number: E93/60J
• Manufacturer: ABB
• Product Series: E 90 30/60 J
• Family Series: ABB Fuseblocks & Holders, E 90 30/60 J Series
• Description: Fuseholder, 3-P, 60A Max, Class J, DIN Mount, Touchsafe
• Current Rating: 60 A
• Voltage: 600 V
• Poles: 3
• Fuse Type: Class J
• Class: J
• Connection Type: Screw Terminal
• Mounting: DIN Rail
• Composition: Thermoplastic
• Trip Indicator: No
• Enclosed: Yes
• Touch Safe: Yes
• Approvals: CSA, IEC, UL
• Interrupt Rating DC: 200 kA
• Interrupt Rating AC: 200 kA
• Family / Style: E90
• Fuse Diameter: 27 mm
• Fuse Length: 60 mm
• Series: E 90 J
• Suitable For Use With: Switchboards
• Material: Thermoplastic
• Amps: 60
