Abb E92/30scc E90 class cc fh 2p 30A bfi

Product Description

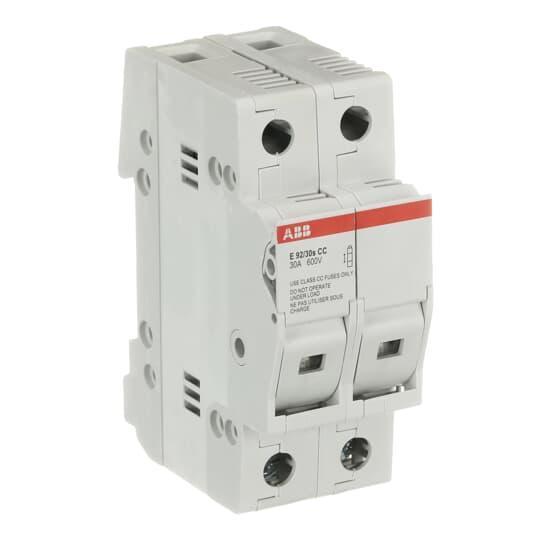

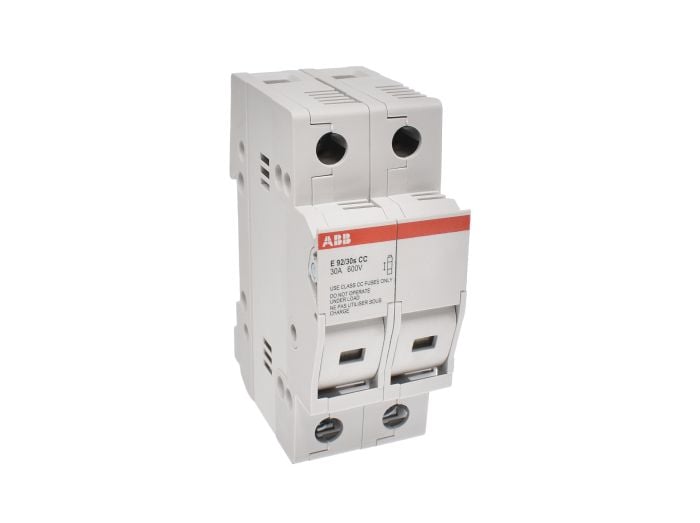

The ABB E92/30SCC is a fuseholder designed for overcurrent and short circuit protection, specifically for class CC fuses. It is used for controlling 3-phase motors and power circuits up to 690 V AC and 220 V DC, and other applications such as bypass, capacitor switching and lighting.

• Fuseholder for overcurrent protection
• Fuseholder for short circuit protection
• Specific for class CC fuses

Product Highlights

The ABB E92/30SCC fuse holder provides reliable overcurrent and short circuit protection for class CC fuses in various applications.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: E92/30SCC

Technical Specifications

• Brand: ABB
• For Use With: Fuses
• Manufacturer Part Number: E92/30SCC
• Primary Type: Fuse Holder
• Manufacturer: ABB
• Family Series: ABB Fuseblocks & Holders
• Fuse Type: Class CC
• Class: Class CC
• Fuse Length: 38.1 mm
• Number of Phases: 3 ph
• Series: E90CC
• Number of Poles: 2
• Product Main Type: E 90
• Rated Current: 30 A
• Rated Operational Voltage: 600 V AC/DC
• Blown Fuse Indicator (BFI): Yes
• Poles: 2
• Mounting: DIN Rail
• Amps: 30
• Material: Thermoplastic
• Volts AC: 600
• Interrupt Rating DC: 200 kA
• Interrupt Rating AC: 200 kA
• Family / Style: E90
