Abb DP30C2P-1 Contactor 30 Amp 120V AC Coil

Product Description

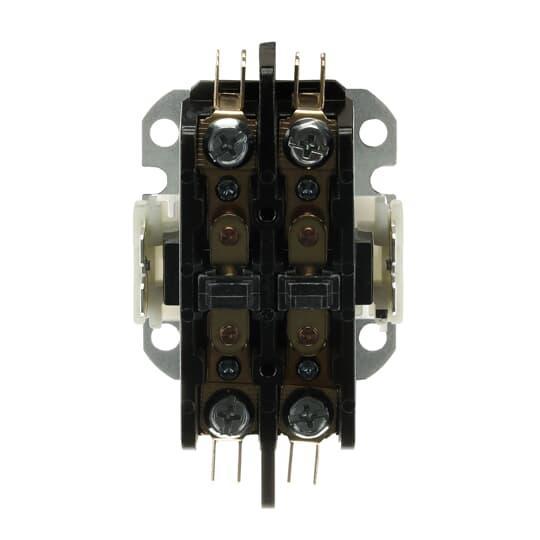

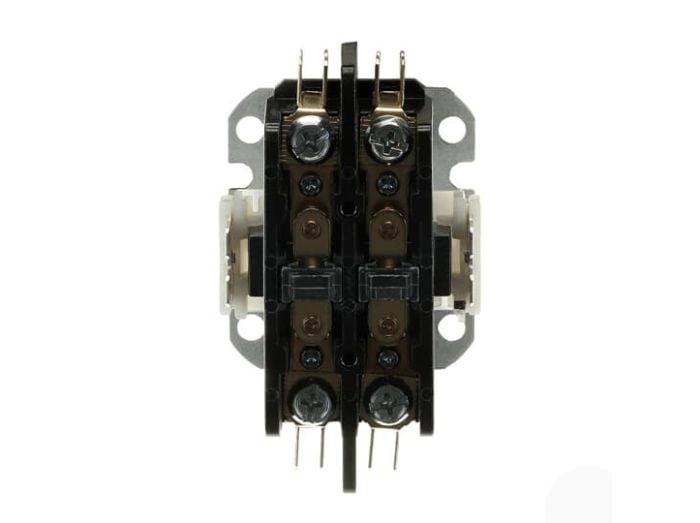

The ABB DP30C2P-1 is a 2-pole, 30 amp, non-reversing definite purpose contactor with a 120V AC coil and industry standard mounting plate. It is designed for HVAC and refrigeration equipment operation and control. These contactors are not recommended for use on lighting circuits, if they are used on lighting circuits, they will not be covered under warranty.

• Industry standard mounting plate with easy access mounting holes
• Coil terminals are provided with #6-32 screws and (1) 0.25 Quick-connect or dual 0.25 Quick-connect terminals
• Exclusive hex, slotted, Phillips 10 to 32 AWG terminal screws for main terminals

Product Highlights

This definite purpose contactor provides outstanding performance in various HVAC, food service equipment, refrigeration and welding applications.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: DP30C2P-1
• Country of Origin: China

Technical Specifications

• Type: CONTACTORS
• Standards: IEC 60947-4-1UL 508
• Coil Voltage: 120 V AC
• Full Load Amps-Inductive: 30 A
• Full Load Amps-Resistive: (600 V AC) 40 A
• Coil Power Rating: 6.5/8/30/33 VA
• Enclosure Type: NEMA 5/Open
• Brand: ABB
• MPN: DP30C2P-1/B
• Category: Business & Industrial
• Manufacturer Part Number: DP30C2P-1
• Manufacturer: ABB
• Product Series: DP
• Family Series: ABB Contactors, DP Series
• Nominal Coil Voltage: 120 VAC
• Inductive Current Rating: 30 A
• Coil Type: Magnetic
• Poles: 2NO
• Frame Size: 30
• Termination: Box Lug, Quick Connect
• Shunt: No
• Enclosure: Open
• Resistive Rating: 40 A
• Approvals: CSA, UL
