Abb db96 Din Rail Mounting Kit TF96 EF96 Overload Relays

Product Description

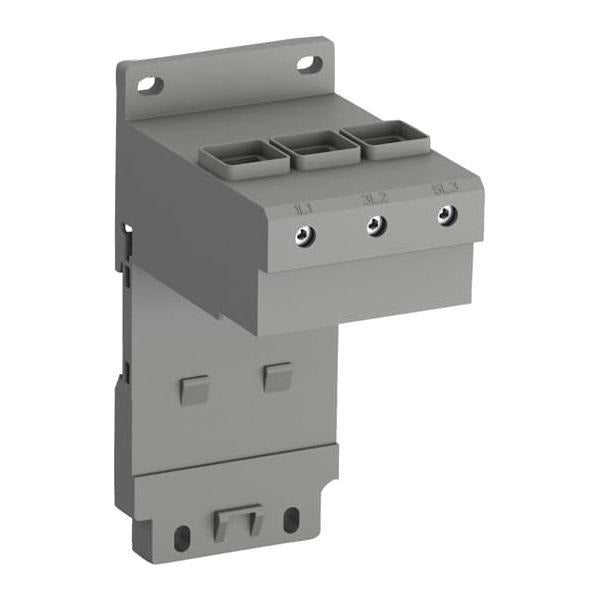

The ABB db96 is a single DIN rail mounting kit designed to secure TF96 and EF96 series thermal overload relays to standard DIN rail installations. It provides the mechanical interface needed to mount these relays cleanly and reliably within a control panel or enclosure. Rated at 600 volts AC, the kit is built for industrial electrical applications where overload relay placement must be stable and code-compliant. Electricians and panel builders use this kit during initial panel assembly or when retrofitting relay mounting configurations. Overall dimensions are 6.18 inches in length, 2.76 inches in width, and 6.18 inches in height.

This mounting kit is intended for use in industrial control panel builds where ABB TF96 or EF96 thermal overload relays are specified. It supports DIN rail mounting, which is the standard method for component placement in motor control and protection circuits across both commercial and industrial installations. Panel shops and electrical contractors working on motor starter assemblies or MCC configurations will find this kit applicable to those builds.

Key Features

• Rated for 600 volts AC service
• Designed specifically for TF96 and EF96 thermal overload relay models
• DIN rail mount configuration for standard panel assembly integration
• Compact footprint: 6.18 inches long, 2.76 inches wide, 6.18 inches tall
• Single mounting kit format for individual relay placement

Compatibility

Designed for use with TF96 and EF96 model thermal overload relays as specified by ABB.

Installation Notes

Installation should be performed by a qualified electrician in accordance with NEC requirements and applicable local codes. De-energize and lock out the panel before mounting or repositioning any relay or associated hardware. Verify that the DIN rail is properly secured within the enclosure before snapping the relay assembly into place. Do not apply mechanical force beyond hand pressure when seating the relay onto the mounted kit.
