ABB DALB-3-CG RED 1 AL LB W/CVR & GASKT

Product Description

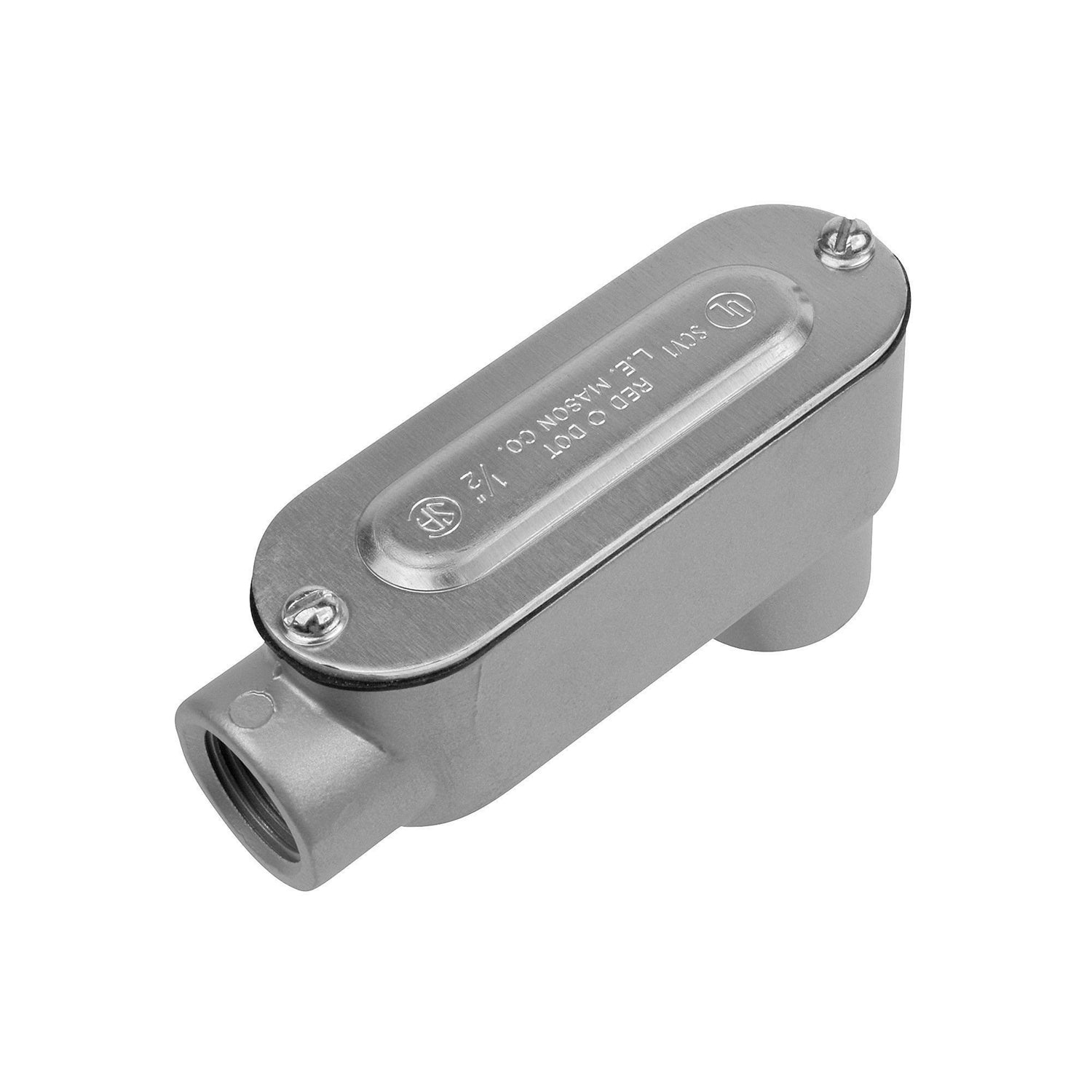

The ABB DALB-3-CG is a conduit body designed for accessing EMT, rigid, and IMC conduits. The Red Dot D-Pak product features a cover and gasket, making it ideal for various electrical applications. This product measures five and three-eighths inches long, five and fifteen-sixteenths inches wide, and one and three-fourths inches high.

• Constructed from die cast aluminum for strength
• Includes a spacious wiring chamber for easy wire pulling and splicing
• Certified to meet CSA and UL standards

Product Highlights

The ABB DALB-3-CG conduit body is built for durability and functionality. It enables straightforward installation and maintenance access. The product is corrosion-resistant and suitable for outdoor use.

Product Information

Standard Information

• Manufacturer: ABB - Installation Products
• UPC: 04226981072

Technical Specifications

• Application: For EMT/rigid/IMC conduit
• Connection Type: NPT/Set Screw
• Dimensions: 5-3/8 in L x 5-15/16 in W x 1-3/4 in H
• Hub Size: 1 in
• Material: Die Cast Aluminum
• Number of Hubs: 2
• Series: A Series
• Standards/Approvals: CSA Certified | Federal Specification W-C-586 | NEC Article No. 370-28 | UL File No. E286881
• Type: Type LB
