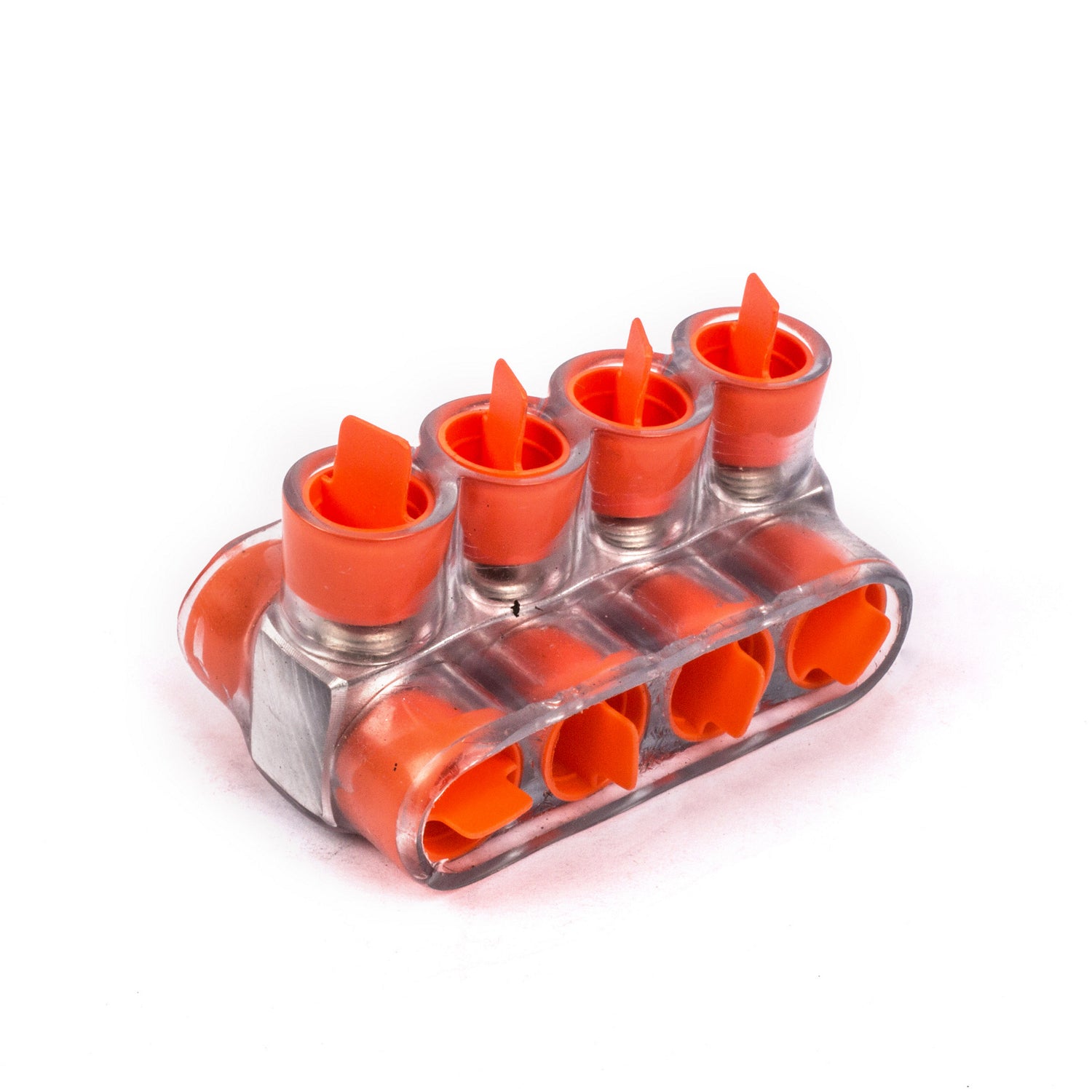

ABB CSB-250-4 Homac 2-Way Multi-Tap Encapsulated Cable Block, Aluminum/Copper Conductor, Aluminum

Product Description

The ABB CSB-250-4 is a 2-way multi-tap encapsulated cable block designed for use with aluminum and copper conductors. This product allows efficient connections in various electrical settings, supporting both safe and time-saving installations without the need for taping. The cable block facilitates multiple cable sizes and features a robust design suited for heavy-duty applications.

• 4 poles for versatile application
• Clear PVC insulation
• ANSI C119.4, RoHS Compliant, UL E9809 Listed

Product Highlights

This multi-tap block supports a wide range of cable sizes and outlet configurations, catering to various installation needs.

Product Information

Standard Information

• Brand: ABB
• Part Number: CSB-250-4

Technical Specifications

• Conductor Type: Aluminum/Copper
• Country of Origin: US
• Dimensions: 3-13/16 in L x 2-5/8 in W x 2-1/8 in H
• Material: Aluminum
• Mfg Standards/Approvals: ANSI C119.4, RoHS Compliant, UL E9809 Listed
• Specifications: 6 AWG to 250 kcmil Wire, 5/16 in Hex Screw
• Type: 2-Way
• Voltage Rating: 600 VAC
