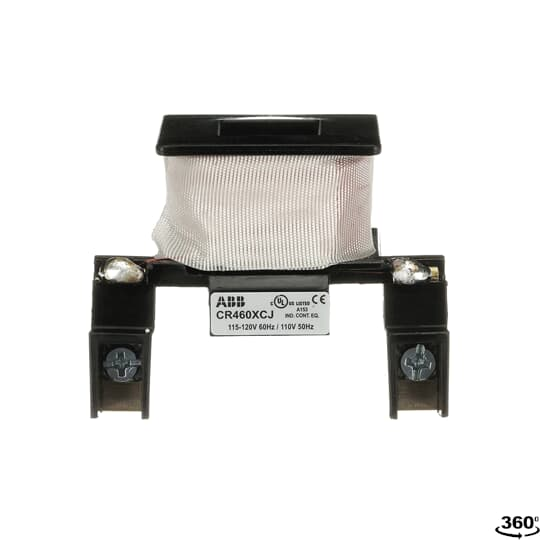

Abb CR460XCJ Lighting Contactor Spare Coil

Product Description

The ABB CR460XCJ is a replacement spare coil designed for use in ABB CR460 series lighting contactors. The coil operates at 110 volts at 50 Hz and 115-120 volts at 60 Hz, making it suitable for both domestic and international frequency applications. Lighting contactor coils are the electromagnetic components that energize the contactor mechanism to open or close lighting circuits. When a coil fails due to burnout or insulation breakdown, replacing it with an OEM-compatible spare restores contactor function without requiring full assembly replacement. This coil is installed by licensed electricians servicing commercial and industrial lighting control panels.

The CR460XCJ is intended for use in lighting contactor applications where the CR460 series contactor coil requires replacement. Typical install scenarios include commercial buildings, warehouses, parking structures, and outdoor area lighting systems where centralized lighting contactors manage large lamp loads. The dual-frequency voltage rating allows the coil to serve both 60 Hz North American systems and 50 Hz applications without substitution confusion.

Key Features

• Rated at 110 volts at 50 Hz for international frequency compatibility
• Rated at 115-120 volts at 60 Hz for standard North American applications
• Designed as a direct spare replacement coil for CR460 series lighting contactors
• Restores contactor function without full assembly replacement

Compatibility

Designed as an OEM-style replacement spare coil for ABB CR460 series lighting contactors.

Installation Notes

Coil replacement in lighting contactors must be performed by a licensed electrician. De-energize and lock out the circuit at the panel before disassembling the contactor enclosure, following NFPA 70E arc flash and lockout-tagout procedures. Verify the replacement coil voltage rating matches the control circuit voltage before installation. Ensure all connections are secure and the enclosure is properly closed before restoring power.

Technical Specifications

• Coil Voltage at 50 Hz: 110 volts
• Coil Voltage at 60 Hz: 115-120 volts
• UPC: 783166621073

Standard Information

• Brand: ABB
• Manufacturer Part Number: CR460XCJ
