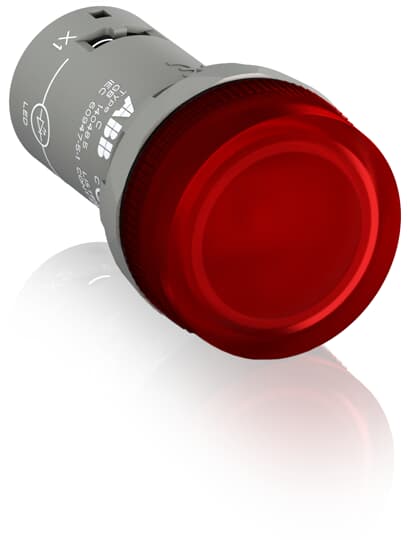

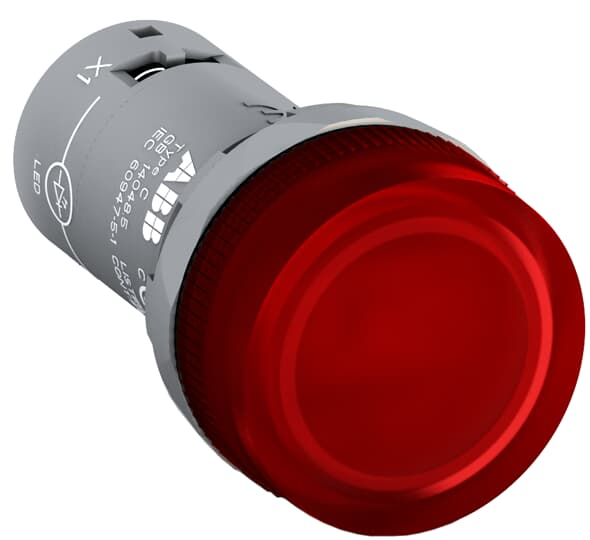

Abb CL2-513R Pilot Light with LED 110-130 V AC

Product Description

The ABB CL2-513R pilot light features an integrated LED and is designed for efficient assembly and cost suitability. This compact pilot light has a lamp type of LED 110-130V AC. It is mainly used for controlling 3-phase motors and generally for controlling power. The pilot light is reliable and easy to install.

• Compact Pilot Light
• Pilot light head
• Illuminated

Product Highlights

The ABB CL2-513R pilot light is a compact, illuminated unit with an integrated LED, designed for reliable performance in demanding environments.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: CL2-513R

Technical Specifications

• Rating: IP67
• Type: Compact Illuminated
• UNSPSC Code: 39121500
• Brand: ABB
• Voltage: 110-130 Volt
• Amperage: 15-17 mA
• Lamp Type: LED
• Lens Type: Flat Round
• Lens Material: Polycarbonate
• Base Material: Plastic
• Enclosure Type: IP20, IP66, IP67, IP69K, NEMA 1, 3R, 4, 4X, 12, 13
• Enclosure Rating: 1, 3R, 4, 4X, 12, 13, IP20, IP66, IP67, IP69K
• IGCC: 4766
• Color: Red
• Standard: RoHs; CSA; cUL; CE; GOST
• Application: Mainly used for controlling 3-phase motors and generally for controlling power c
• Family group: MOTOR CONTROL
• Manufacturer: ABB
• Special Features: Compact Pilot Light - Pilot light head - Red - Illuminated - Lamptype: LED 110-1
• Supply Voltage (Nominal): 120 VAC,120 VDC
• Diameter: 22 mm
• Function: Indicator
• Illumination: Illuminated
• Contact Rating: AC: 120V, 6A; 240V, 3A; 480V, 1.5A; 600V, 1.2A DC: 120V,0.55A; 240V, 0.27A; 480V, 0.1A; 600V, 0.1A
• Rated Insulation Voltage: 690V
• Mechanical Life: 10 million operations (contact block)
• Terminals: #14-20 AWG
• Contact Material: Silver
• Mounting: 0.874" (2.25 cm) hole
• Operating Temperature: -13 to 122 F (-25 to 50 C)
• Panel Thickness: 0.059" to 0.236" (0.15 to 0.6 cm)
• Protection Rating: NEMA type 1, 3R, 4, 4X, 12, 13
• Manufacturer Part Number: CL2-513R
• Unit of Measure: EA
• Base Type: BA9s
• Shape: Circle
• Average Life: 50000 hr
• Lens Type (additional): Flat Round Glass
• Mounting Type: Panel
• Terminal Type: Screw
• Environmental Conditions: -25 to 70 deg C Temperature
• Voltage Rating: 110 to 130 VAC
• Bezel/Housing: Plastic/Polycarbonate
• Series: Compact CL2
