Abb CL2-502R Pilot Light With Led Rated Voltage 24 V AC/DC

Product Description

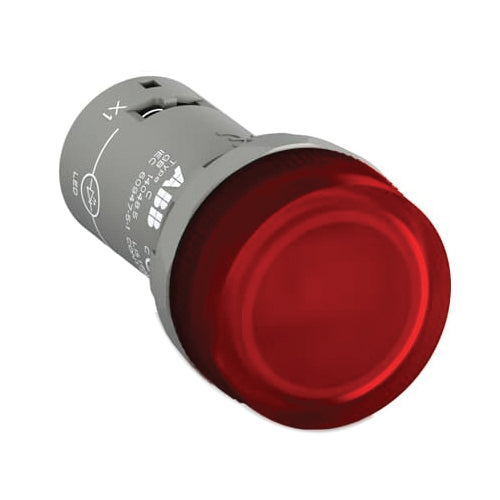

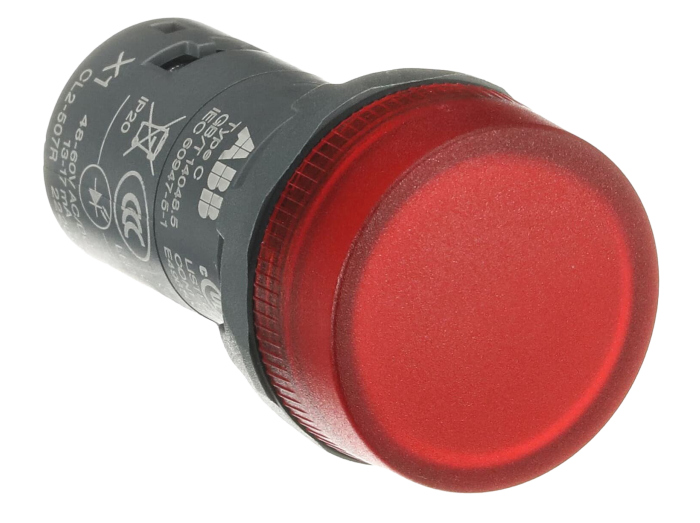

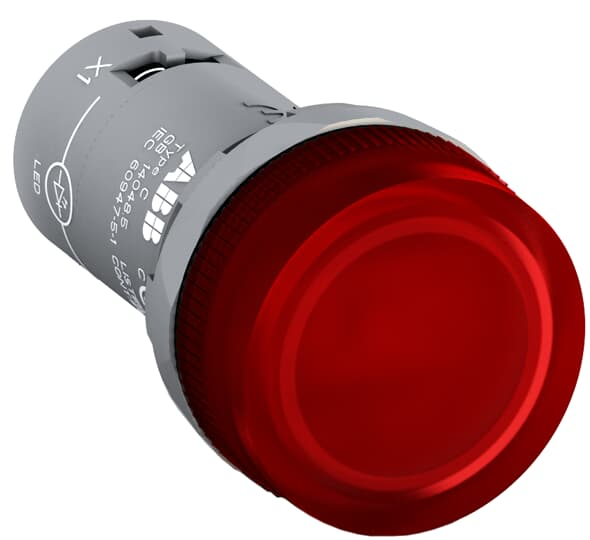

The ABB CL2-502R pilot device features an LED with a rated voltage of 24 V AC/DC. This compact pilot light has a red, illuminated pilot light head and an LED lamp type. It is designed for use in various applications, including controlling 3-phase motors and power circuits.

• Compact design
• Red illumination
• LED lamp type

Product Highlights

Compact pilot light with LED, 24V AC/DC, and multiple enclosure ratings.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: CL2-502R

Technical Specifications

• Type: PILOT DEVICE
• Brand: ABB
• Voltage: 24 Volt
• Amperage: 16 mA
• Lamp Type: LED
• Lens Type: Flat Round
• Lens Material: Polycarbonate
• Enclosure Type: IP20, IP66, IP67, IP69K, NEMA 1, 3R, 4, 4X, 12, 13
• Manufacturer: ABB
• Model / MPN: 1SFA619403R5021
• Manufacturer Part Number: CL2-502R
• Product Series: CL2
• Description: Compact Pilot Light - Pilot light head - Red - Illuminated - Lamptype: LED 24V AC/DC
• Push-to-Test: No
• Mounting: 22 mm
• Lens/Button Shape: Flat Round
• Nominal Lamp Voltage: 12 VDC, 24 VDC
• Protection Rating: IP66, IP67, IP69K
• Terminal Type: Screw
• Approvals: CE, UL
• Standard: RoHs; CSA; cUL; CE; GOST
• Application: Mainly used for controlling 3-phase motors and generally for controlling power c
• Special Features: Compact Pilot Light - Pilot light head - Red - Illuminated - Lamptype: LED 24V A
• Family Series: ABB Pilot Lights, CL2 Series
