ABB CB2200B Meter Socket with Circuit Breaker

Product Description

The ABB CB2200B is a meter socket designed for surface mounting. This unit is built from galvanized G90 sixteen gauge steel with an electro-deposition finish. It is rated NEMA 3R for weather resistance and features a utility meter socket compartment that is separated from breaker mains. The unit includes a two hundred amp plug-in circuit breaker and a hasp for a utility seal. It provides a continuous duty two hundred amp meter socket with meterguides and reinforced jaws.

• NEMA 3R rated for weather resistance

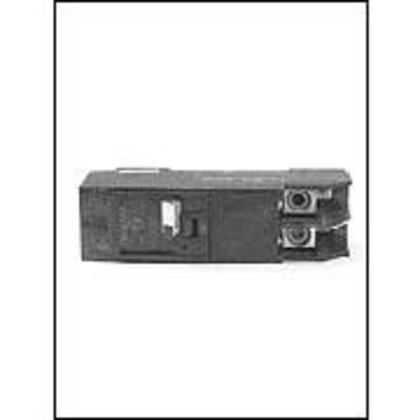

• Includes a 200A plug-in circuit breaker
• Constructed with heavy-duty G90 16 GA steel

Product Highlights

This product is suitable for various installations where reliable electrical service is required.

Product Information

Standard Information

• Brand: ABB
• Manufacturer: ABB - Midwest Electric

Technical Specifications

• MPN: CB2200B
• Amperage Rating: 200
• Voltage Rating: 120/240
• Phase: 1
• Type: Ringless Meter Socket
• Cutout Size: 14 x 28 inches
• Cable Entry: Knockout Code (A): 1-1/2, 2, 2-1/2 inches; Knockout Code (C): 1-1/4, 1-1/2, 2 inches; Knockout Code (D): 3/4, 1, 1-1/4 inches; Knockout Code (E): 3/4 inches; Knockout Code (Q): 1 inch
• Poles: 2
• Interruption Rating: 10kAIC
• AIC: 10,000
• UL/CUL Listing: UL/CUL
