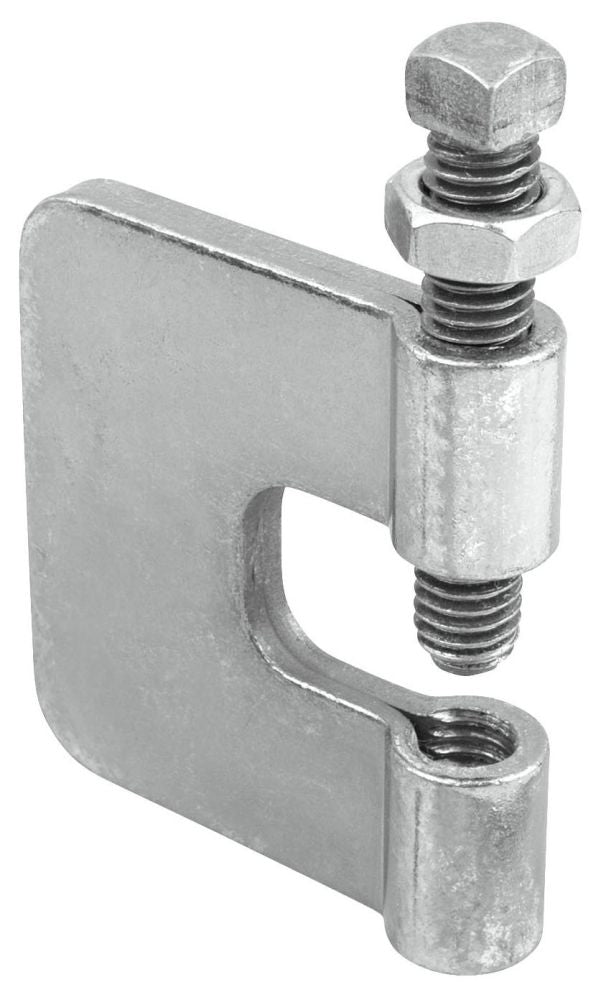

Abb C775L1/2B Beam Clamp S-strut Fitting

Product Description

The ABB C775L1/2B is a beam clamp designed for use with S-Strut strut channel systems. It provides a secure mechanical attachment point where strut channel meets a structural beam, allowing installers to suspend or support channel runs from steel I-beams or similar structural members. This fitting is a standard component in strut channel support assemblies used across electrical, mechanical, and plumbing rough-in work. The clamp is built to handle the load demands typical of suspended channel systems in commercial and industrial construction.

This beam clamp is suited for commercial and industrial installations where strut channel systems are used to support conduit, cable tray, pipe, or mechanical equipment. It is commonly installed by electricians, pipefitters, and mechanical contractors during the structural framing and rough-in phases of a project. The C775L1/2B fits into standard S-Strut channel assemblies and is appropriate for overhead suspension applications from wide-flange beams and similar structural steel.

Key Features

• Designed for S-Strut strut channel systems
• Attaches strut channel runs to structural steel beams
• Supports suspended conduit, pipe, and cable tray applications
• Standard beam clamp form factor for multi-trade use

Compatibility

Designed as an OEM-style fitting for S-Strut strut channel support systems used in commercial and industrial electrical and mechanical installations.

Installation Notes

Installation is typically performed by licensed electricians or mechanical contractors. De-energize all nearby circuits before working in overhead areas near energized conductors. Verify that the beam clamp is fully seated and fasteners are tightened to the fitting manufacturer's standard before loading the channel. All strut support installations in electrical applications should comply with applicable NEC requirements for support spacing and load ratings.

Technical Specifications

• Weight: 41.13 pounds
• UPC: 61601322934

Standard Information

• Brand: ABB
• Manufacturer Part Number: C775L1/2B
