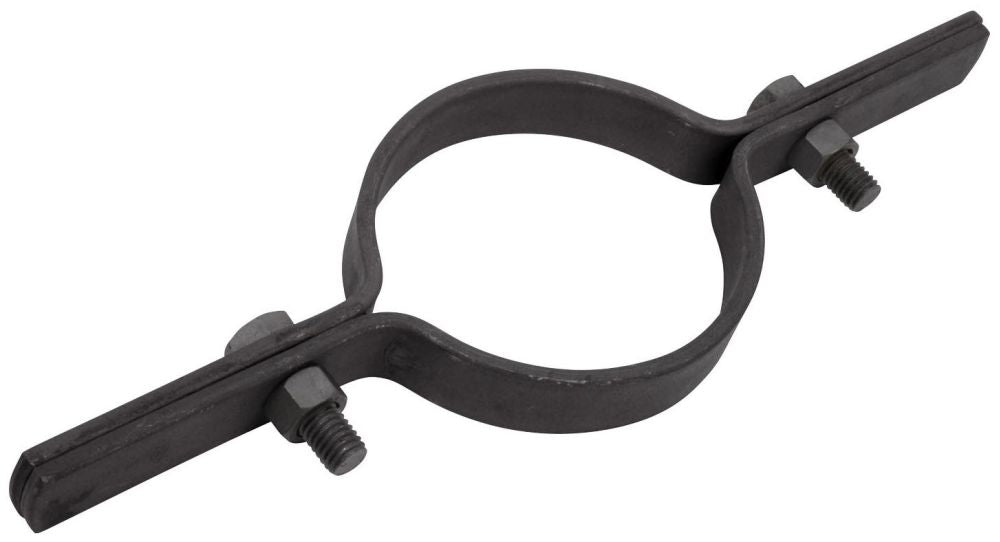

Abb C7201-1/4 Strut Rise Clamp

Product Description

The ABB C7201-1/4 is a strut rise clamp designed for use with standard strut channel systems in mechanical, electrical, and plumbing support applications. This clamp secures pipe, conduit, or other cylindrical loads to strut channel while providing a raised offset between the strut and the supported element. It is installed by electricians, pipefitters, and mechanical contractors as part of a complete strut support assembly. Weighing 1.2 pounds, it is built for reliable service in commercial and industrial support configurations.

The C7201-1/4 rise clamp is suited for use in strut channel support systems where a standoff or rise is needed between the strut rail and the clamped component. Typical applications include conduit runs, pipe hangers, and equipment support frames in commercial buildings, industrial facilities, and mechanical rooms. It is sized for 1-1/4 inch nominal pipe or conduit and is intended for use with standard strut channel.

Key Features

• Rise clamp design provides an offset between strut channel and the supported component
• Sized for 1-1/4 inch nominal pipe or conduit
• Compatible with standard strut channel support systems
• Compact and lightweight at 1.2 pounds for easy handling during installation

Compatibility

Designed as an OEM-style replacement or addition for standard strut channel support systems commonly used in electrical, plumbing, and mechanical installations.

Installation Notes

Installation is typically performed by licensed electricians, pipefitters, or mechanical contractors. De-energize all nearby electrical circuits and relieve pressure from any piping systems before beginning work in the installation area. Follow applicable local codes including NEC and IPC guidelines for support spacing and load ratings. Ensure all strut hardware is fully tightened and that the clamp is properly seated on the strut channel before applying load.

Technical Specifications

• Weight: 1.2 pounds
• Size: 1-1/4 inches
• UPC: 61601314708

Standard Information

• Brand: ABB
• Manufacturer Part Number: C7201-1/4
