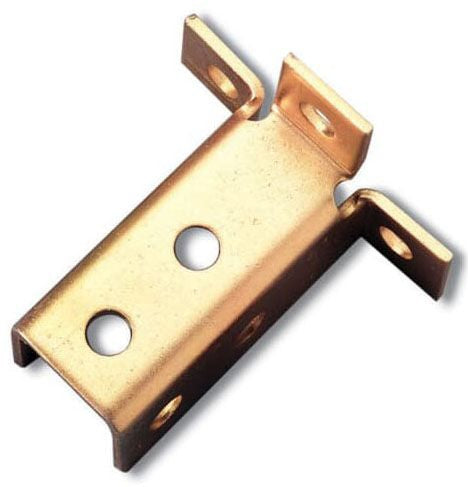

Abb B923 Three-side Angle Connector Strut Fitting

Product Description

The ABB B923 is a three-side angle connector designed for use with channel strut framing systems. It creates rigid, three-plane connections at structural junction points, allowing installers to tie together horizontal, vertical, and lateral runs of strut channel in a single fitting. This type of connector is a standard component in electrical, mechanical, and plumbing support assemblies where strut framing is used to mount conduit, cable tray, pipe, ductwork, and equipment. It is installed by licensed electricians, pipefitters, and mechanical contractors working on commercial and industrial projects.

Three-side angle connectors like the B923 are used wherever strut runs change direction or intersect at a corner requiring connection on three faces. Typical applications include equipment support frames, seismic bracing assemblies, and overhead support grids in commercial buildings, industrial facilities, and utility installations. The fitting accommodates the standard Kindorf channel profile and is suited for both new construction and retrofit framing work.

Key Features

• Three-side angle geometry for rigid multi-plane strut connections
• Compatible with standard channel strut framing systems
• Suited for use in electrical, mechanical, and plumbing support structures
• Supports corner and junction connections in overhead and wall-mounted strut assemblies

Compatibility

Designed as an OEM-style replacement and standard fitment connector for use with Kindorf-profile channel strut framing systems in electrical and mechanical support applications.

Installation Notes

Installation is typically performed by licensed electricians or mechanical contractors in accordance with applicable NEC and building code requirements for strut support systems. De-energize any nearby electrical systems before working on support structures in energized areas. Secure all strut channel connections with appropriate hardware torqued to the channel manufacturer specifications. Inspect the assembly for alignment and rigidity before loading with supported components.

Technical Specifications

• Package Weight: 126.5 pounds
• Package Dimensions (L x W x H): 14.8 x 10.5 x 5.2 inches
• UPC: 78599175780

Standard Information

• Brand: ABB
• Manufacturer Part Number: B923
