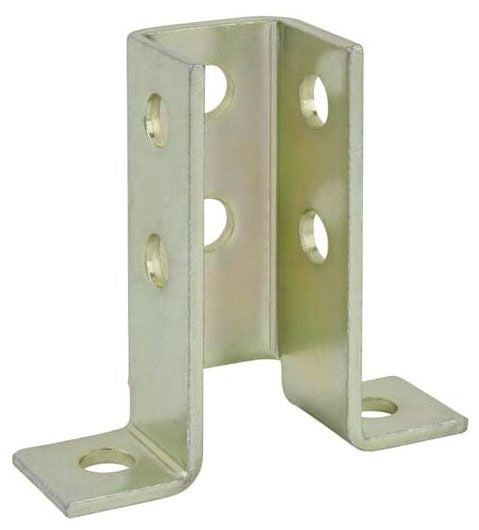

Abb B922 Opposite Side Angle Strut Fitting

Product Description

The ABB B922 is an opposite side angle fitting used in Kindorf strut channel framing systems. It connects two strut channels at a 90-degree angle on opposite sides, creating rigid structural corners for cable tray supports, conduit runs, pipe hangers, and general electrical or mechanical framing. This type of hardware is installed by electricians, mechanical contractors, and industrial maintenance crews who build out strut-based support structures in commercial and industrial settings. The B922 is a standard component in pre-engineered channel framing assemblies where structural rigidity and alignment are required at corner transitions.

The B922 is suited for commercial and industrial electrical and mechanical support applications. It is commonly used when building strut framing grids on walls, ceilings, or floor-mounted support structures. Typical installations include equipment support frames, conduit and cable tray support runs, and HVAC component mounting systems where opposing-side angular connections are needed to complete a rigid assembly.

Key Features

• Opposite side angle configuration for 90-degree corner connections on strut channel systems
• Compatible with standard Kindorf strut channel framing hardware
• Designed for rigid structural support in conduit, cable tray, and mechanical framing assemblies
• Compact profile suitable for tight framing layouts

Compatibility

Designed as an OEM-style fitting for use with Kindorf strut channel framing systems in standard commercial and industrial support structure applications.

Installation Notes

Installation is typically performed by licensed electricians or mechanical contractors following applicable NEC and local building code requirements. De-energize any adjacent electrical systems before working in the installation area. Standard hand tools and fasteners appropriate for strut channel hardware are used to secure the fitting. Verify that all channel connections are fully tightened and aligned before applying load to the assembly.

Technical Specifications

• Package Weight: 113.5 pounds
• Package Dimensions (L x W x H): 14.8 inches x 10.9 inches x 6 inches

Standard Information

• Brand: ABB
• Manufacturer Part Number: B922
