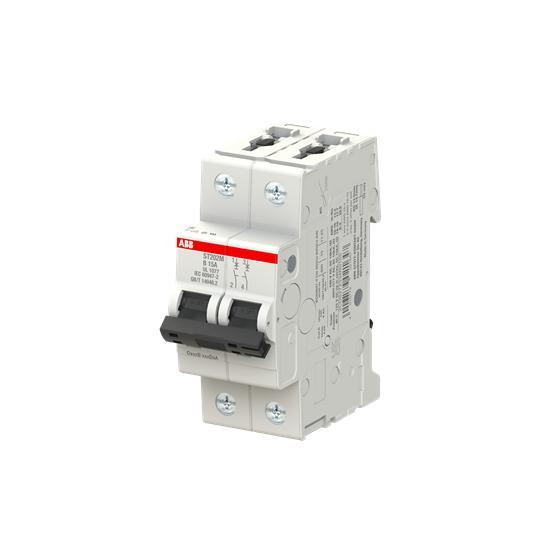

ABB B15 Miniature Circuit Breaker

Product Description

The ABB B15 is a miniature circuit breaker that provides essential overcurrent protection for low voltage applications. This device comes in both 2-pole and 3-pole configurations to suit different electrical needs. It has a B-curve trip characteristic and is designed for easy mounting on a DIN rail, ensuring versatility and ease of installation.

• B-Curve trip characteristic for reliable performance
• Compatible with DIN rail systems for space efficiency
• Features a double clamped connection type for secure wiring

Product Highlights

Product Information

Standard Information

• Brand: ABB
• MPN: B15

Technical Specifications

• Series: ST200M
• Actuator Type: Toggle
• Amperage Rating: 15 A
• Number of Poles: 2, 3
• Voltage Rating: 400 V, 277VAC, 480VAC
• Interrupt Rating: 11.2 kA at 230 VAC, 10 kA
• Trip Type: B-Curve
• Enclosure Type: IP20
• Frequency Rating: 50 to 60 Hz
• Operating Temperature: -25 to 55 deg C
• Wire Size: 14 to 8 AWG
• Connection Type: Double Clamped
• Mounting Type: DIN Rail
• UL Rating: UL 1077
• Dimensions: 88 mm H x 35 mm W x 69 mm D
• Weight: 1.3
